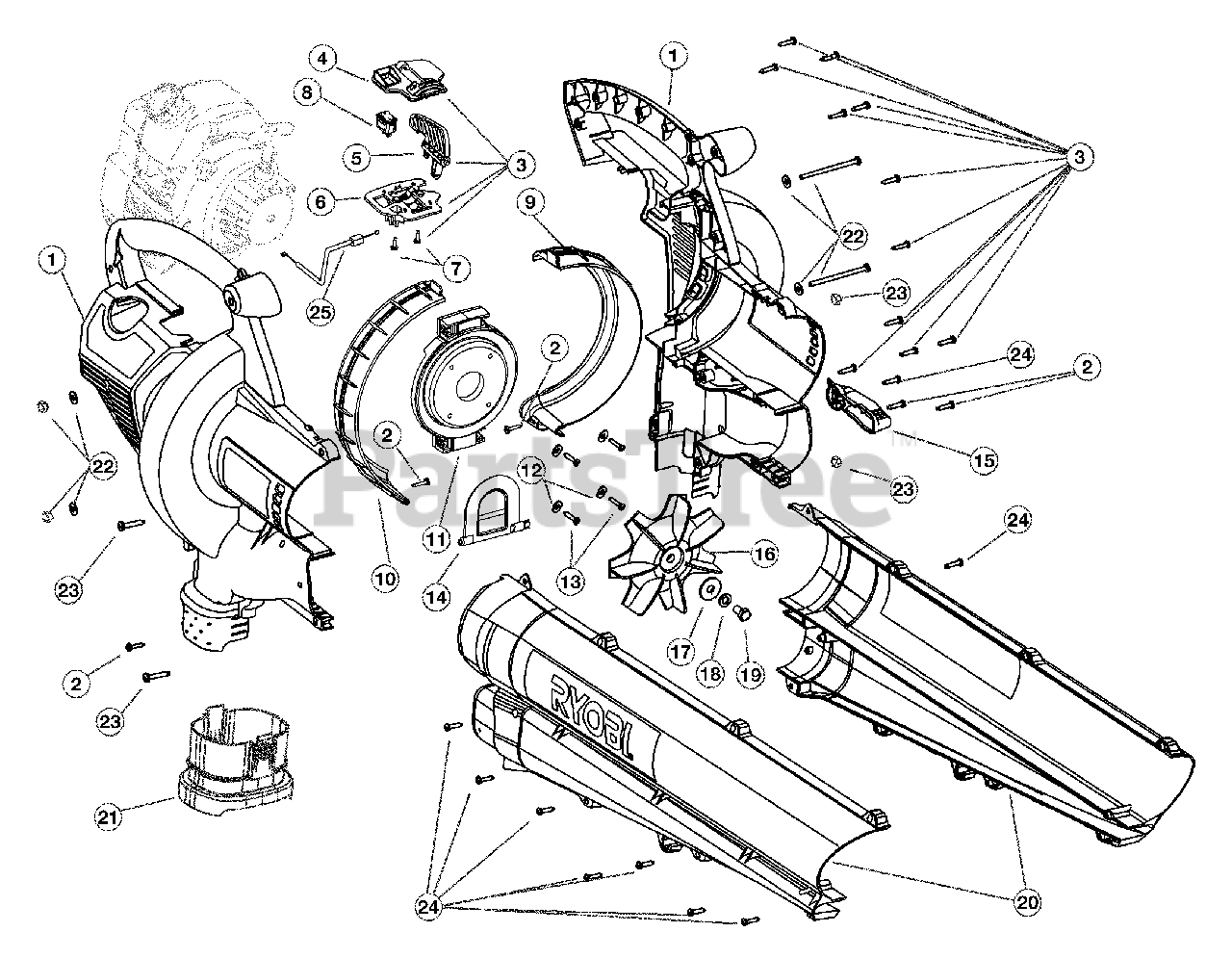

  • Title

1

MTD 753-04138

Engine Cover Assembly

Note: (includes 2)

$

$

Not available

2

Troy-Bilt 791-181345

Cover Screw

$3.99

$

In Stock, Qty 18

0

3

Troy-Bilt 791-182419

Throttle Control Assembly
(Superseded to 753-05013A)

Note: (includes 4-7)

$

$

Not available

4

Troy-Bilt 791-182420

Upper Throttle Control Plate
(Superseded to 753-05013A)

$

$

Not available

5

Troy-Bilt 791-182728

Throttle Control Lever
(Superseded to 791-00048)

$10.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 791-182422

Lower Throttle Control Plate
(Superseded to 753-05013A)

$

$

Not available

7

Troy-Bilt 791-182423

Screw, Plastic

$

$

Not available

8

Troy-Bilt 791-182405

Rocker Switch Assembly

$9.99

$

In Stock, Qty 20+

0

9

MTD 753-04140

Left Side Liner

$

$

Not available

10

MTD 753-04139

Right Side Liner

$

$

Not available

11

MTD 791-182408

Engine Mounting Plate

Note: (includes 12 & 13)

$

$

Not available

12

Troy-Bilt 791-182409

Washer

$4.49

$

In Stock, Qty 5

0

13

MTD 791-181903

Screw

$

$

Not available

14

Troy-Bilt 791-182410

Mode Control Flapper

$8.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-182411

Mode Control Lever

Note: (includes 24)

$8.99

$

Usually ships in 3-6 days

0

16

MTD 791-147353

Impeller Blade

$

$

Not available

17

Troy-Bilt 791-182412

Washer
(Superseded to 936-0133)

$

$

Not available

18

Troy-Bilt 791-182413

Lock Washer
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 791-182414

Bolt

$4.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 791-182415

Blower/Vac Tube Assembly
(Superseded to 791-00051)

Note: (includes 24)

$57.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 791-182417

Vacuum Bag Adapter

$17.99

$

Usually ships in 3-6 days

0

22

MTD 791-182424

Mounting Plate Hardware

$

$

Not available

23

Troy-Bilt 791-182425

Blower/Vac Tube Mounting Hardware

$

$

Not available

24

Troy-Bilt 791-181482

Screw

$4.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 791-182068

Throttle Cable

$19.99

$

In Stock, only 2 left!

0

Troy-Bilt 791-612930

Cable Tie

Note: Item Not Shown

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04143

Vacuum Bag Assembly
(Superseded to 753-04465)

Note: (includes 21, Vacuum Bag & Cable Tie) Item Not Shown

$68.99

$

In Stock, only 2 left!

0
