TB 32 CS (41AC132C063) - Troy-Bilt String Trimmer, Electric Boom And Trimmer Parts Parts Diagram

String Trimmer, Electric

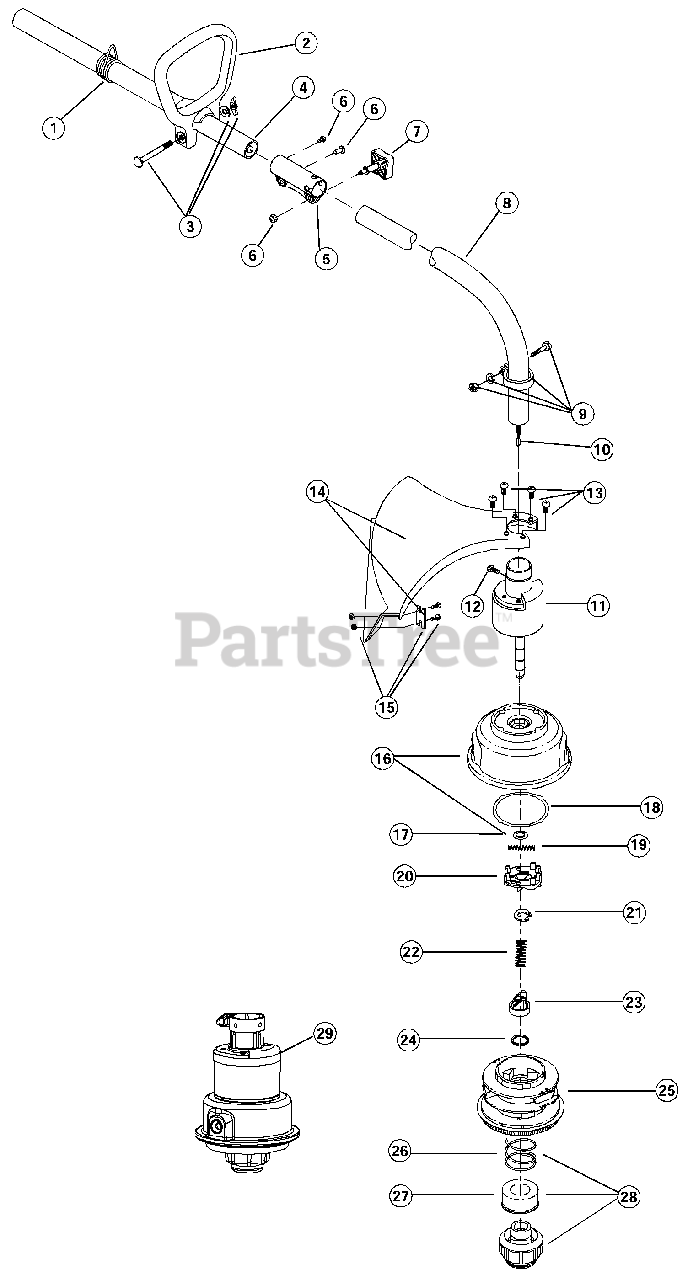

Boom And Trimmer Parts Parts Diagram

  • Title

1

Troy-Bilt 791-610327

Shoulder Harness Clamp

$30.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-153064

D-Handle

Note: (includes 3)

$

$

Not available

3

Troy-Bilt 791-181587

D-Handle Hardware Assembly

$18.99

$

In Stock, only 1 left!

0

4

MTD 791-181929

Upper Drive Shaft Housing Assembly
(Superseded to 753-04345)

$

$

Not available

5

MTD 791-182928

EZ-Link Coupler

Note: (includes 6)

$

$

Not available

6

Troy-Bilt 791-182057

EZ-Link Hardware

$4.49

$

In Stock, Qty 15

0

7

MTD 791-181951

Adjustment Knob
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 791-180340

Lower Drive Shaft Housing Assembly
(Superseded to 753-1218)

$98.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-153597

Lower Clamp Assembly

Note: (includes 11)

$15.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-181852

Flexible Drive Shaft

$58.99

$

In Stock, only 1 left!

0

11

MTD 791-181857

Bushing Housing Assembly w/shaft

$

$

Not available

12

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

13

Troy-Bilt 791-180531

Guard Mounting Screws
(Superseded to 791-181858)

$

$

Not available

14

Troy-Bilt 791-683274

Guard and Blade Assembly

$36.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

16

Troy-Bilt 791-181457

Outer Spool and Eyelet Assembly w/ Retainer

$37.99

$

In Stock, only 3 left!

0

17

Troy-Bilt 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

18

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

19

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, Qty 19

0

20

Troy-Bilt 791-04257

Slider

$

$

Currently unavailable

21

Troy-Bilt 791-181532

E-Clip

$4.49

$

In Stock, Qty 16

0

22

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

23

Troy-Bilt 791-181462

Plunger

$

$

Not available

24

Troy-Bilt 791-181463

C-Clip

$3.99

$

In Stock, Qty 5

0

25

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$30.99

$

In Stock, Qty 7

0

26

Troy-Bilt 791-181465

Large Spring

$

$

Currently unavailable

27

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

28

Troy-Bilt 791-181468

Bump Head Knob Assembly w/Spring & Foam Seal
(Superseded to 791-181468B)

$15.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 791-181469

Complete Cutting Head Assembly

$

$

Currently unavailable

Troy-Bilt 791-682075

Shoulder Strap Harness
(Superseded to 791-682075B)

Note: Optional Accessories; not shown

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-181460

Reel w/.080 Line
(Superseded to 791-181460B)

Note: Optional Accessories; not shown

$30.99

$

In Stock, Qty 7

0
