TB 32 EC (41CDZ32C766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

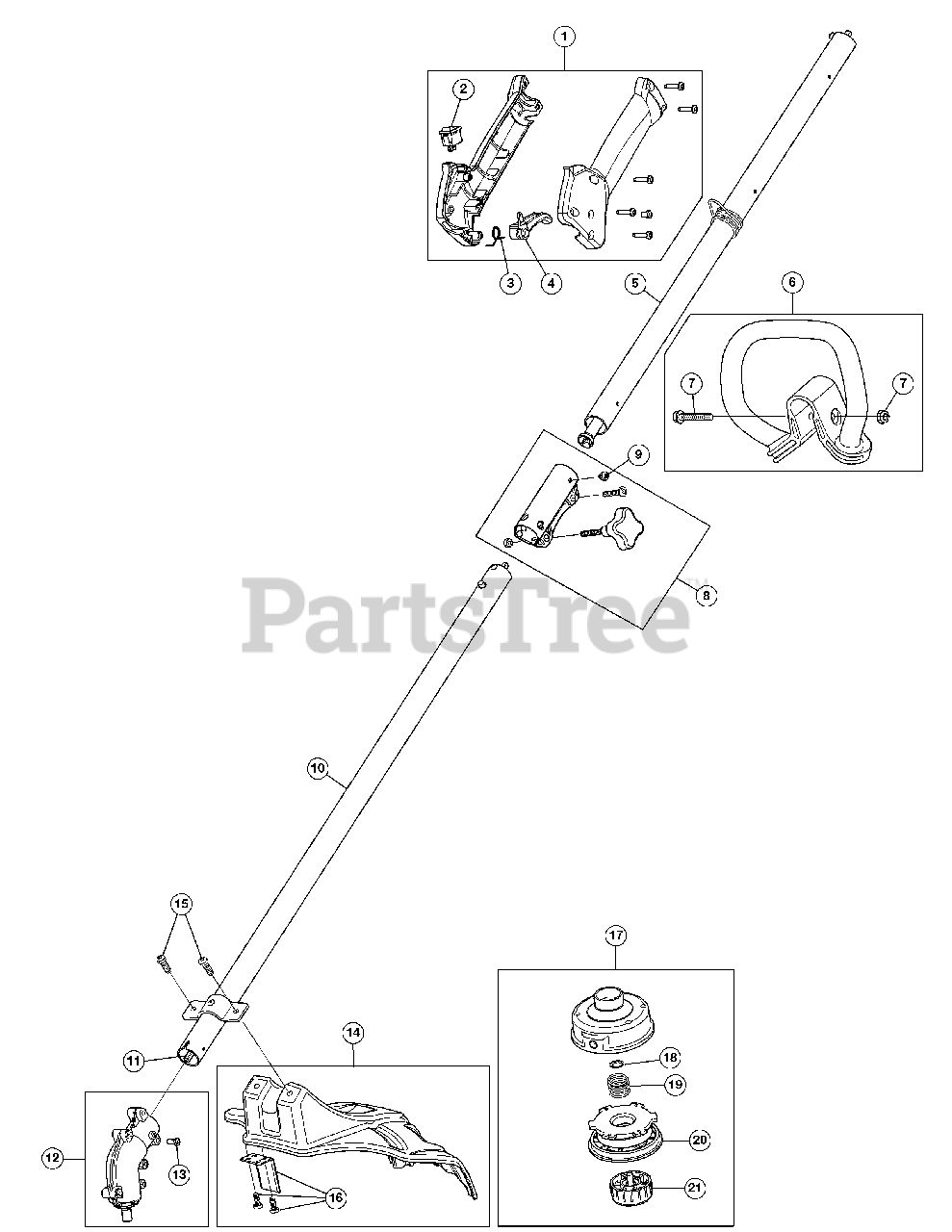

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (Incl. 2 - 4)

$21.99

$

In Stock, Qty 17

0

2

Troy-Bilt 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, Qty 13

0

4

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 753-04344

Upper Drive Shaft Housing Assembly

$85.99

$

In Stock, Qty 8

0

6

Troy-Bilt 753-08042

D-Handle (Incl. 7)

$4.99

$

In Stock, Qty 5

0

7

Troy-Bilt 753-06040

D-Handle Bolt

$6.99

$

In Stock, Qty 6

0

8

Troy-Bilt 753-1190

Split Boom Coupler (Incl. 9)

$23.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 11

0

10

Troy-Bilt 753-06139

Lower Drive Shaft Housing Assembly

$20.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, Qty 6

0

12

Troy-Bilt 753-06571

Gear Box Assembly (Incl. 13 & 17 - 21)

$45.99

$

In Stock, Qty 17

0

13

Troy-Bilt 7039

Anti-Rotation Screw

$4.99

$

In Stock, Qty 8

0

14

Troy-Bilt 753-06123

Shield Assembly (Incl. 15 & 16)

$20.99

$

In Stock, Qty 16

0

15

Troy-Bilt 753-06125

Shield Mounting Screws

$6.99

$

In Stock, Qty 8

0

16

Troy-Bilt 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 6

0

17

Troy-Bilt 753-04284

Outer Spool Assembly

$28.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 791-153066B

Bump Knob Assembly

$13.99

$

In Stock, Qty 20+

0

Troy-Bilt 953-1156

Reel & Line Assembly

Note: (Optional Accessory)

$31.99

$

In Stock, Qty 7

0

Troy-Bilt 49M2027P966

Corded Electric Starter Attachment

Note: (Optional Accessory)

$65.99

$

In Stock, Qty 9

0

Troy-Bilt 49MRBESY966

Cordless Electric Start Adaptor
(Superseded to 49MRBESY953)

Note: (Optional Accessory)

$

$

Not available

Troy-Bilt 49MESCBP966

Drill Bit Electric Start Adaptor
(Superseded to 49MASCBP966)

Note: (Optional Accessory)

$19.99

$

In Stock, Qty 12

0

Troy-Bilt 49U2341K953

Round Line-.095, 40 ft. packet

Note: (Optional Accessory)

$

$

Not available

Troy-Bilt OL-216-OM

Oil, 2-Cycle 16 OZ.

Note: (Optional Accessory)

$10.99

$

In Stock, Qty 9

0
