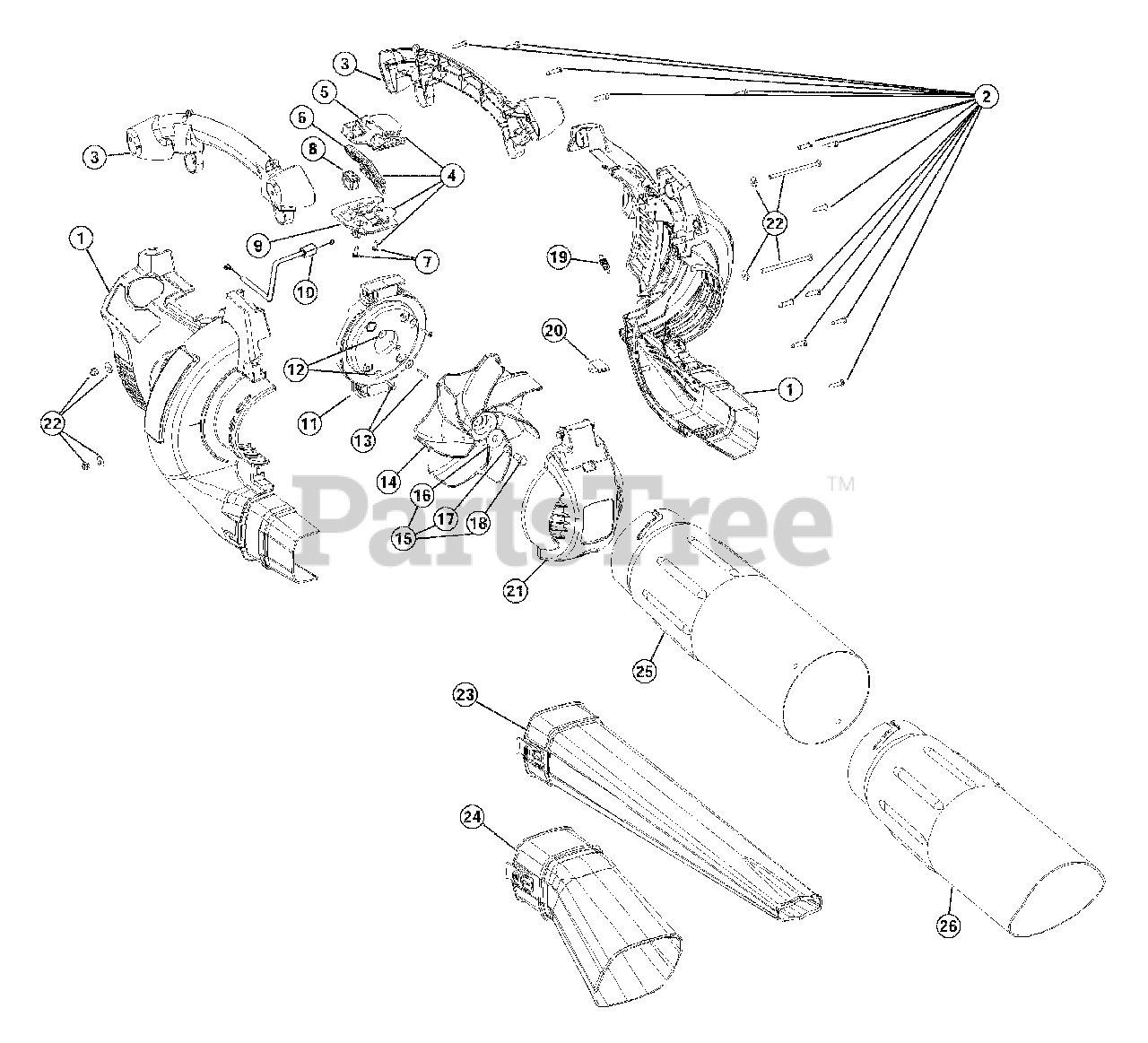

TB 320 BV (41AS320G966) - Troy-Bilt Blower Vacuum Housing Parts Parts Diagram

Blower Vacuum

Housing Parts Parts Diagram

  • Title

1

MTD 753-04452

Engine Cover Assm

Note: (includes 2)

$

$

Not available

2

Troy-Bilt 791-181345

Screw

$3.99

$

In Stock, Qty 18

0

3

Troy-Bilt 753-04451

Handle Assm
(Superseded to 753-05047)

Note: (includes 2)

$26.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 753-04756

Throttle control Assm
(Superseded to 753-05013A)

Note: (includes 5-9)

$

$

Not available

5

Troy-Bilt 791-182420

Upper Throttle Control Plate
(Superseded to 753-05013A)

$

$

Not available

6

Troy-Bilt 791-00048

Throttle Control Lever

$10.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-182423

Screw

$

$

Not available

8

Troy-Bilt 791-182405

Rocker Switch Assm

$9.99

$

In Stock, Qty 20+

0

9

MTD 753-04809

Lower Throttle Control Plate

$

$

Not available

10

Troy-Bilt 791-00049

Throttle Cable

$

$

Not available

11

MTD 753-04483

Engine Mount Plate

Note: (includes 12 & 13)

$

$

Not available

12

Troy-Bilt 791-182409

Washer

$4.49

$

In Stock, Qty 5

0

13

Troy-Bilt 791-147500

Screw

$

$

Not available

14

Troy-Bilt 753-04596

Impeller Blade
(Superseded to 731-04275)

$32.99

$

In Stock, Qty 5

0

15

Troy-Bilt 753-04482

Impeller Hardware

Note: (includes 16-18)

$9.49

$

In Stock, only 1 left!

0

16

Troy-Bilt 753-04833

Washer
(Superseded to 736-04107)

$4.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 753-04834

Lock Washer
(Superseded to 736-04110A)

$4.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 791-182414

Bolt

$4.49

$

Usually ships in 3-6 days

0

19

MTD 753-04456

Vacuum Door Spring

$

$

Not available

20

Troy-Bilt 753-04455

Vacuum Door Lock
(Superseded to 732-04092A)

$9.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-04454

Vacuum Door

$

$

Not available

22

MTD 791-182424

Mounting Plate Hardware

$

$

Not available

23

Troy-Bilt 791-182647

Blower Tube

$

$

Not available

24

Troy-Bilt 753-04457

Vacuum Bag Adaptor
(Superseded to 791-182477)

$26.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 791-180466

Upper Vacuum Tube

$

$

Not available

26

Troy-Bilt 791-180467

Lower Vacuum Tube

$35.99

$

In Stock, Qty 5

0

Troy-Bilt 791-612930

Cable Tie

Note: Not Shown

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04458

Vacuum Bag Assm

Note: (includes Bag & Cable Tie); Not Shown

$50.99

$

In Stock, only 2 left!

0

Troy-Bilt 791-682075B

Shoulder Strap

Note: Not Shown

$36.99

$

Usually ships in 3-6 days

0
