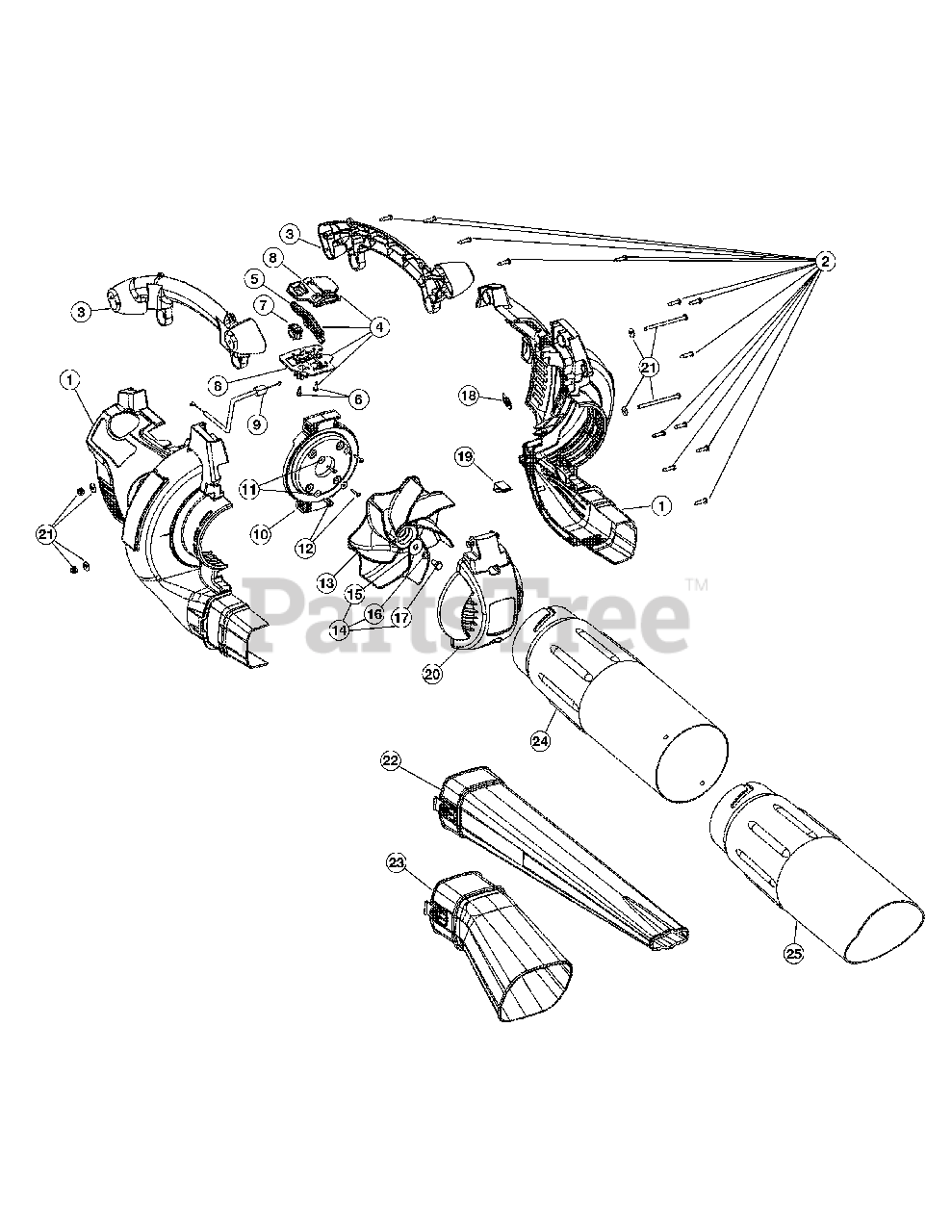

TB 320 BV (41CS320G966) - Troy-Bilt Blower Vacuum Housing Parts 2008 & after Parts Diagram

Blower Vacuum

Housing Parts 2008 & after Parts Diagram

  • Title

1

MTD 753-04452

Engine Cover Assembly

Note: (Incl. Ref No. 2)

$

$

Not available

2

Troy-Bilt 791-181345

Screw

$4.49

$

In Stock, Qty 17

0

3

Troy-Bilt 753-04451

Handle Assembly
(Superseded to 753-05047)

Note: (Incl. Ref No. 2)

$26.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 753-05013A

Throttle Control Assembly

Note: (Incl. Ref No. 5, 6 & 8)

$

$

Not available

5

Troy-Bilt 791-00048

Throttle Control Lever

$11.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 791-182423

Screw

$

$

Not available

7

Troy-Bilt 791-182405

Rocker Switch Assembly

$10.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 791-182422

Throttle Control Plate
(Superseded to 753-05013A)

Note: (Incl. Ref No. 6)

$

$

Not available

9

Troy-Bilt 791-00049

Throttle Cable

$

$

Not available

10

MTD 753-04809

Engine Mount Plate

Note: (Incl. Ref No. 11 & 12)

$

$

Not available

11

Troy-Bilt 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

12

Troy-Bilt 753-04755

Screw
(Superseded to 710-04215A)

$4.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-04596

Impeller Blade
(Superseded to 731-04275)

$35.99

$

In Stock, Qty 5

0

14

Troy-Bilt 753-04482

Impeller Hardware

Note: (Incl. Ref No. 15-17)

$9.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 753-04833

Washer
(Superseded to 736-04107)

$4.49

$

In Stock, only 1 left!

0

16

Troy-Bilt 753-04834

Lock Washer
(Superseded to 736-04110A)

$5.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-182414

Bolt

$4.99

$

Usually ships in 3-6 days

0

18

MTD 753-04456

Vacuum Door Spring

$

$

Not available

19

Troy-Bilt 753-04455

Vacuum Door Lock
(Superseded to 732-04092A)

$9.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 753-04454

Vacuum Door

$

$

Not available

21

MTD 791-182424

Mounting Plate Hardware

$

$

Not available

22

Troy-Bilt 791-182647

Blower Tube

$

$

Not available

23

Troy-Bilt 791-182477

Vacuum Bag Adapter

$28.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 791-180466

Upper Vacuum Tube

$

$

Not available

25

Troy-Bilt 791-180467

Lower Vacuum Tube

$38.99

$

In Stock, Qty 5

0

Troy-Bilt 791-612930

Cable Tie

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04458

Vacuum Bag Assembly

Note: (Incl. Bag & Cable Tie)

$50.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-682075B

Shoulder Strap

$38.99

$

Usually ships in 3-6 days

0
