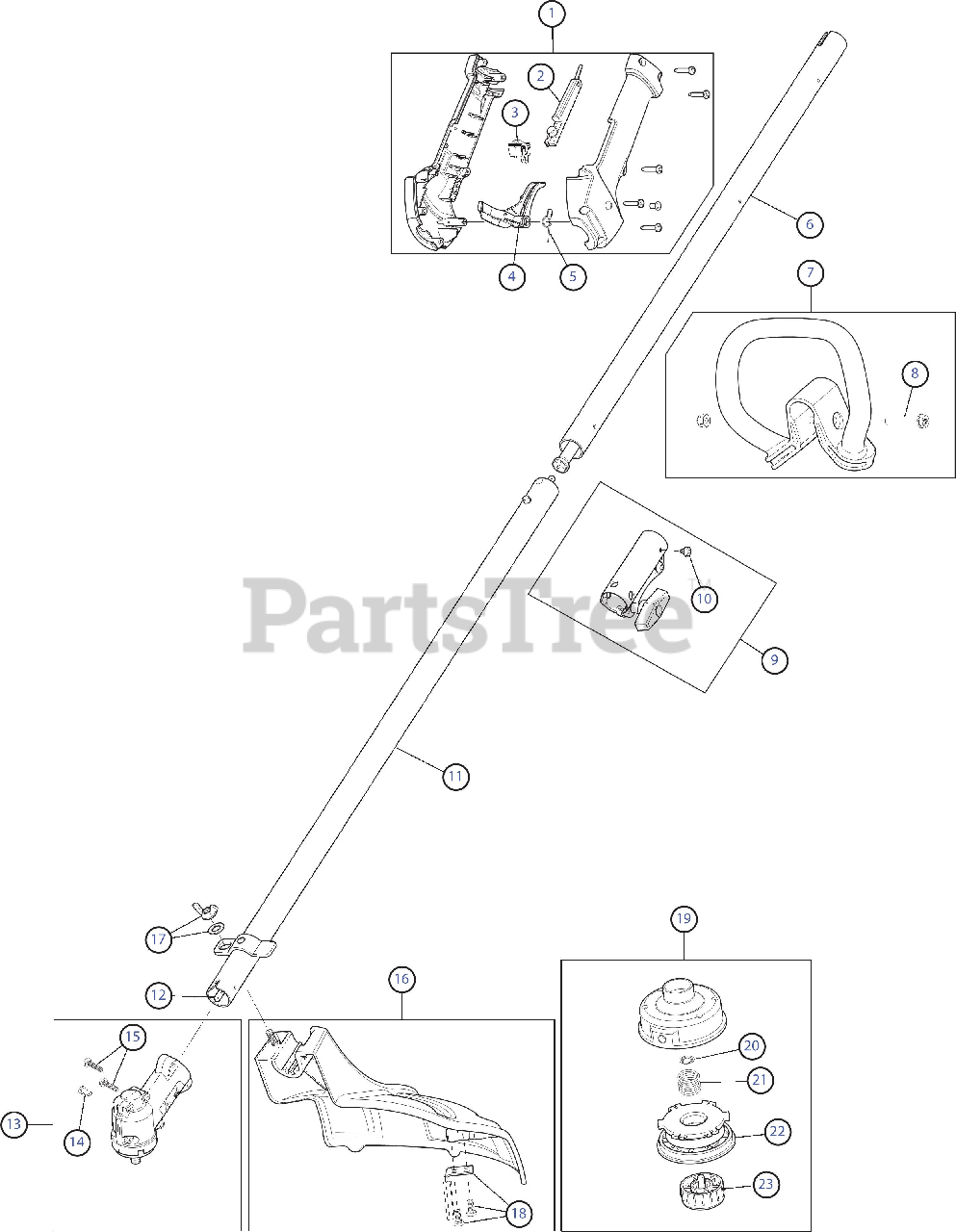

TB 35 EC (41BDZ35C766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-08344

Throttle Housing Assembly (Incl. 2 - 5)

$30.99

$

In Stock, Qty 7

0

2

Troy-Bilt 731-08433A-10

Throttle Trigger Lock-Out
(Superseded to 731-08433C-10)

$3.49

$

In Stock, only 1 left!

0

3

Troy-Bilt 791-182405

Throttle Switch Assembly

$10.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 731-04970B-10

Throttle Trigger

$9.49

$

In Stock, Qty 9

0

5

Troy-Bilt 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 1 left!

0

6

Troy-Bilt 753-06880

Upper Shaft Housing Assembly

$19.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 753-08042

D-Handle (Incl. 8)

$4.99

$

In Stock, Qty 5

0

8

Troy-Bilt 753-06040

D-Handle Bolt

$6.99

$

In Stock, Qty 6

0

9

Troy-Bilt 753-1190

Split Boom Coupler (Incl. 10)

$23.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 11

0

11

Troy-Bilt 753-08356

Lower Shaft Housing Assembly

$24.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, Qty 6

0

13

Troy-Bilt 753-08180

Gearbox Assembly (Incl. 14 & 15)

$45.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 791-182519

Gearbox Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 7

0

16

Troy-Bilt 753-08354

Shield Assembly (Incl. 17 & 18)

$16.99

$

In Stock, Qty 9

0

17

Troy-Bilt 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 753-08355

Blade Assembly

$4.49

$

In Stock, Qty 17

0

19

Troy-Bilt 753-08561

Outer Spool Assembly (Incl. 20 - 23)

$17.99

$

In Stock, Qty 9

0

20

Troy-Bilt 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 753-08560

Inner Reel

$9.99

$

In Stock, Qty 19

0

23

Troy-Bilt 753-08559

Bump Knob Assembly

$6.49

$

In Stock, Qty 20+

0
