TB 360 (12ABD3BY711) - Troy-Bilt Walk-Behind Mower (2014) General Assembly TB360 Parts Diagram

Walk-Behind Mower

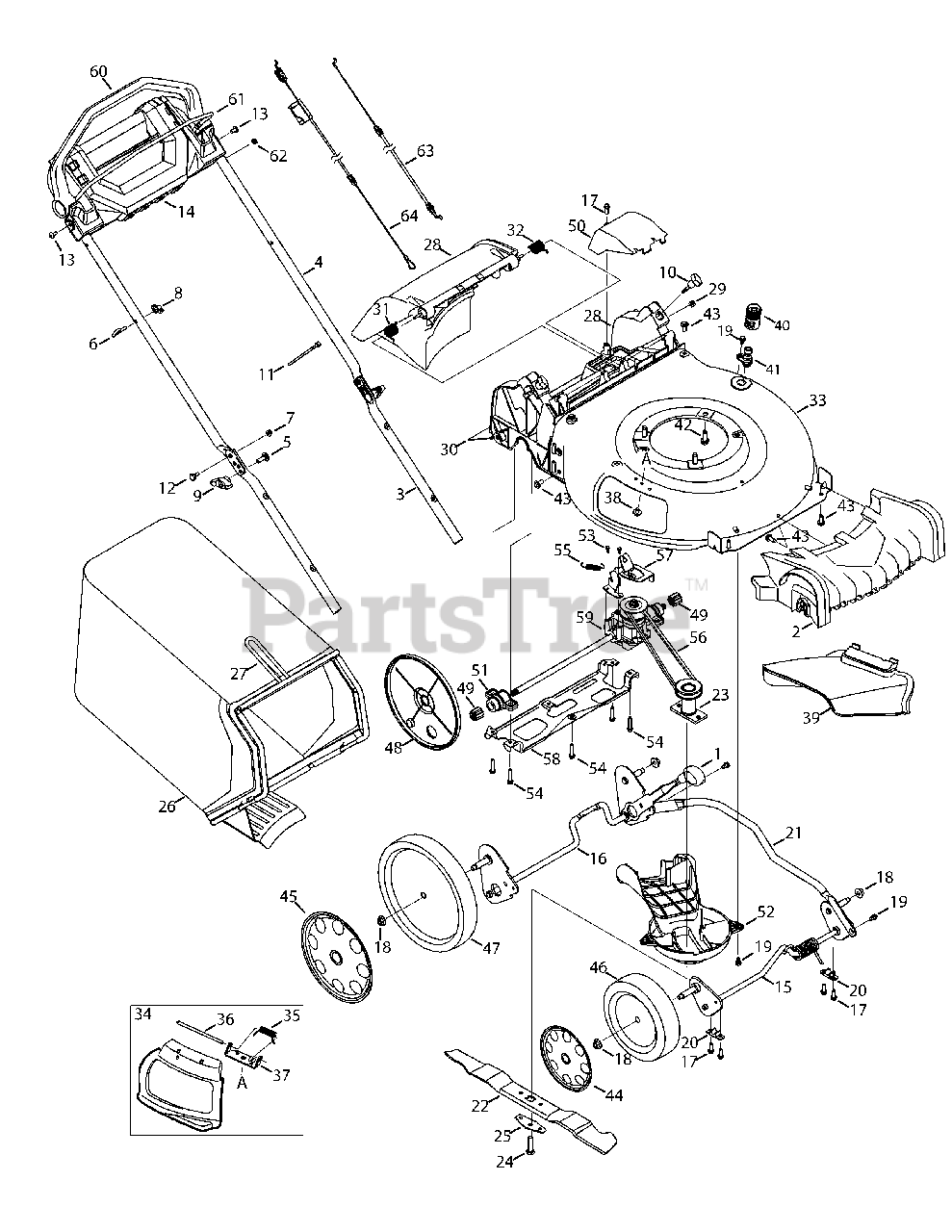

General Assembly TB360 Parts Diagram

  • Title

1

Troy-Bilt 720-04113

Adjustment Lever Knob

$9.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 931-10334

Front Cover

$39.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 749-05084-0637

Upper Handle
(Superseded to 749-05084B-0637)

$31.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 710-04998

Carriage Screw, 5/16-18

$5.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

7

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 720-04124

Wing Knob

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 720-05066A

Wing Nut

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

12

Troy-Bilt 738-04419A

Sldr. Screw, .375 x .126 x 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-1017

Screw, 1/4-14 x .625

$7.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 931-09823A

Handle Console

$31.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 911-04191B

Front Axle Assembly

$50.99

$

In Stock, only 3 left!

0

16

Troy-Bilt 911-04192

Rear Axle Assembly
(Superseded to 611-04192A)

$53.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 710-0895

Screw, 1/4-15 x .750

$5.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-04217

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 738-04278

Scr., Shldr., 1/4-20 x .50

$6.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 741-0492A

Bushing, Lock, .505 Dia. X .62

$5.99

$

In Stock, Qty 12

0

21

Troy-Bilt 949-04840B-0637

Cross Bracket

$35.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 687-02220

Blade Adapter

$35.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 964-04150B

Grass Bag

$51.99

$

In Stock, only 3 left!

0

27

Troy-Bilt 747-05362A

Grass Catcher Frame

Variations

Troy-Bilt 747-05362A-0637

Grass Bag Frame, Rwd - POWDER BLACK (0637)

$40.99

$

In Stock, Qty 20+

0

$40.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 631-04514A

Rear Discharge Door Assembly

$77.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 712-04222

Nut, Sq., 1/4-20

$5.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 731-07203

Trailing Shield

$9.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 732-05061A

Torsion Spring - RH
(Superseded to 732-05061B)

$4.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 732-05062A

Torsion Spring - LH

$4.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 787-02002B-0638

Deck , 21"

$133.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 987-02516A

Mulch Plug (Incl. 35-37)

$19.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 732-1014C

Torsion Spring

$7.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 747-0710A

Hinge Pin

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 787-01779

Chute Deflector Bracket

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 710-05073

Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 731-07131

Side Discharge Chute

$14.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 921-04041

Water Nozzle Adapter

$21.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 731-07487

Water Nozzle

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 710-04683C

Screw, 3/8-16 x 1.00

$6.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 710-04995A

Screw, 5/16-14 x .750

$3.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 731-07198

Hubcap, 8"

$6.99

$

In Stock, Qty 17

0

45

Troy-Bilt 731-07199

Hubcap, 11"

$9.49

$

In Stock, Qty 8

0

46

Troy-Bilt 634-04660

Front Wheel

$25.99

$

In Stock, Qty 11

0

47

Troy-Bilt 934-04666

Rear Wheel

$33.99

$

In Stock, only 3 left!

0

48

Troy-Bilt 731-07731C

Wheel Dust Cover

$9.49

$

In Stock, Qty 7

0

49

Troy-Bilt 917-04849

Spur Gear, 9T

$4.49

$

In Stock, Qty 7

0

50

Troy-Bilt 731-08175

Transmission Cover

$10.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 631-04501A

Bearing Assembly

$6.49

$

Usually ships in 3-6 days

0

52

Troy-Bilt 631-04512C

Engine Baffle
(Superseded to 631-04512D)

$19.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 710-04374

Screw, Hex Washer, .159 x .43

$3.49

$

Usually ships in 3-6 days

0

54

Troy-Bilt 710-04774

Screw, 1/4-15 x 1.25

$4.49

$

In Stock, only 3 left!

0

55

Troy-Bilt 732-05150A

Exten. Spring, 2.405

$3.99

$

In Stock, only 3 left!

0

56

Troy-Bilt 954-04282

V-Belt

$28.99

$

In Stock, Qty 20+

0

57

Troy-Bilt 787-01868A-0637

Transmission Bracket
(Superseded to 787-01868B-0637)

$8.49

$

In Stock, Qty 8

0

58

Troy-Bilt 787-01915A

Rear Support Bracket
(Superseded to 787-01915C)

$17.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 918-07000

Transmission Assembly

$138.99

$

In Stock, only 2 left!

0

60

Troy-Bilt 731-09730A

Drive Handle
(Superseded to 731-09730B)

$27.99

$

In Stock, Qty 20+

0

61

Troy-Bilt 747-06243-0638

Blade Control

$16.99

$

In Stock, only 4 left!

0

62

Troy-Bilt 748-05047

Shoulder Spacer, .18 x .315 x .09

$5.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 946-05107A

Control Cable
(Superseded to 946-05107B)

$27.99

$

In Stock, Qty 20+

0

64

Troy-Bilt 946-05121A

Drive Cable

$25.99

$

In Stock, Qty 20+

0
