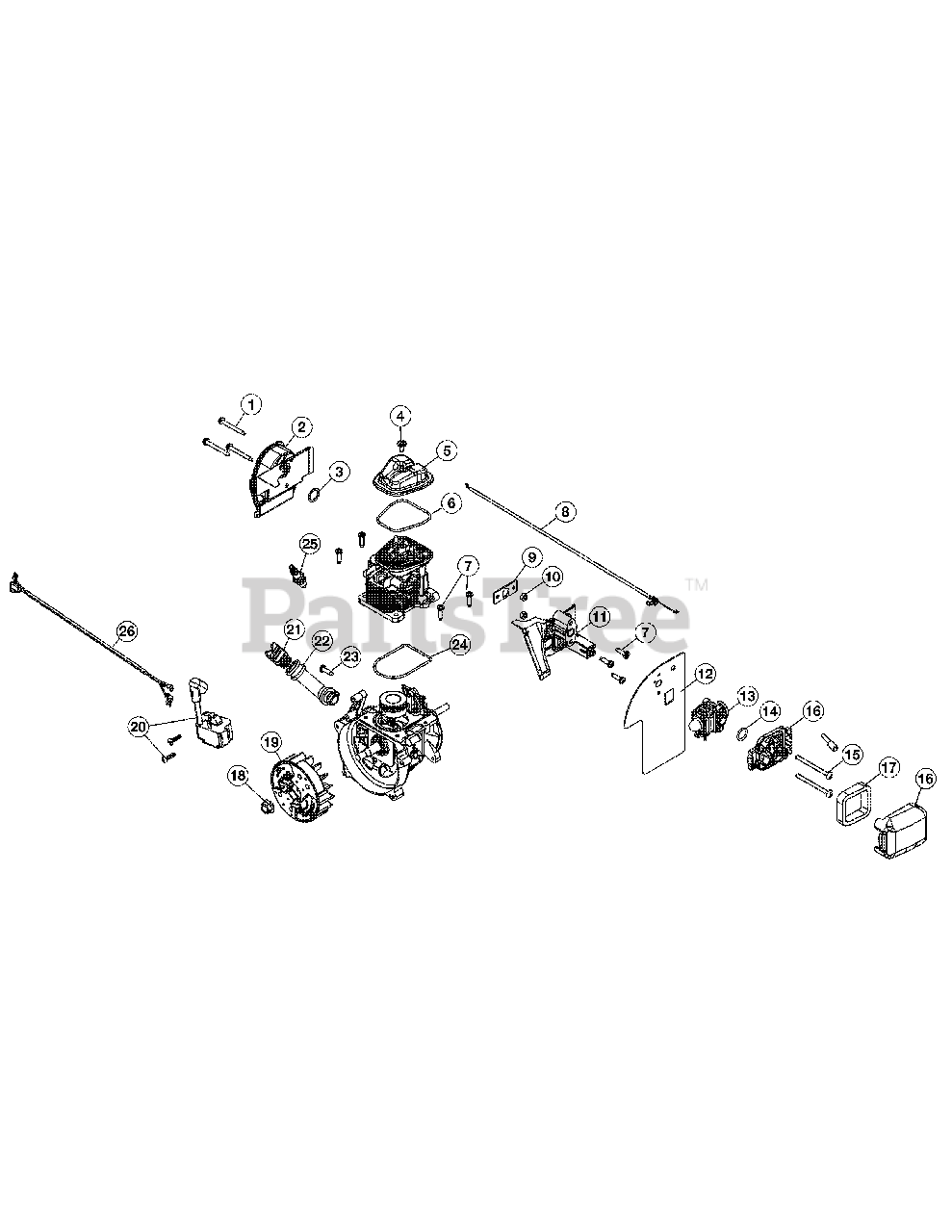

TB 4 SC (41AS4SCG966) - Troy-Bilt Handheld Blower Engine Assembly Parts Diagram

Handheld Blower

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05246

Muffler Screws
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

2

Troy-Bilt 753-05900

Muffler Assembly

Note: (Incl. Ref. No. 1 & 3)

$27.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-05244

Muffler Gasket

$5.49

$

In Stock, Qty 11

0

4

Troy-Bilt 791-181025

Screw

$2.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-05901

Rocker Cover

$7.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-05902

O-Ring

$4.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

8

Troy-Bilt 753-05903

Throttle Cable

$15.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-05673

Insulator Gasket

$9.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-05248

Nut
(Superseded to 712-04099)

$6.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-05904

Insulator

$7.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 753-05905

Carburetor Gasket

$9.49

$

In Stock, Qty 6

0

13

Troy-Bilt 753-05908

Carburetor

$52.99

$

In Stock, only 4 left!

0

14

Troy-Bilt 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 753-05253

Screw
(Superseded to 710-04517)

$4.99

$

In Stock, only 4 left!

0

16

Troy-Bilt 753-04223

Air Cleaner Assembly

Note: (Incl. Ref. No. 17)

$28.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 791-181757

Air Filter

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-05687

Nut
(Superseded to 712-04137)

$6.49

$

In Stock, only 3 left!

0

19

Troy-Bilt 753-05906

Flywheel Assembly

$

$

Not available

20

Troy-Bilt 753-05907

Module

$48.99

$

In Stock, Qty 5

0

21

Troy-Bilt 753-05400

Oil Plug
(Superseded to 753-05408)

$27.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 753-05909

Oil Fill Tube

$8.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-05377

Screw
(Superseded to 710-04604)

$3.99

$

In Stock, Qty 12

0

24

Troy-Bilt 753-05910

O-Ring

$2.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 753-05784

Spark Plug
(Superseded to 794-00082)

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 753-05911

Lead Wire

$5.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-05912

Shortblock Assembly

Note: Not Shown (Incl. Ref. No. 4-7 & 21-25)

$202.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-05966

Valve

Note: Not Shown

$4.49

$

Usually ships in 3-6 days

0
