TB 4 SC (41AS4SCG966) - Troy-Bilt Handheld Blower General Assembly Parts Diagram

Handheld Blower

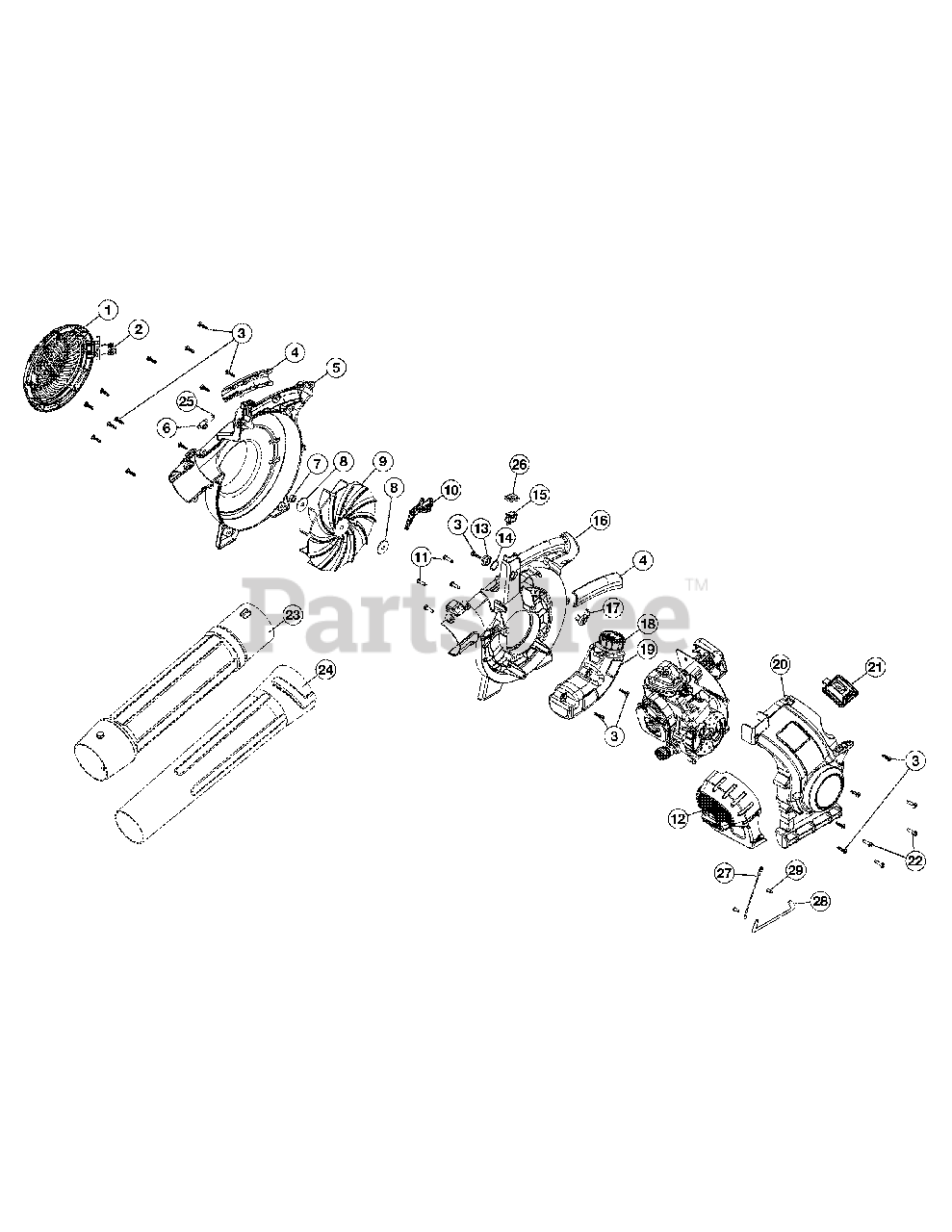

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05917

Intake Cover

$7.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-05918

Spring

$2.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-04595

Screw
(Superseded to 710-04194)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 753-05919

Handle Grips

$5.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-05920

Impeller Housing

Note: (Incl. Ref.No. 4)

$36.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-05926

Latch Tube

$2.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 753-05927

Nut

$2.99

$

In Stock, only 4 left!

0

8

Troy-Bilt 753-05928

Washer

$2.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 753-05929

Impeller

$12.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 753-05930

Throttle Trigger

$

$

Not available

11

Troy-Bilt 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

12

Troy-Bilt 753-05931

Muffler Cover

Note: (Incl. Ref.No. 3)

$5.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-05924

Inner Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-05925

Wavey Washer
(Superseded to 736-04353)

$5.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 753-05921

Impeller Housing
(Superseded to 753-06693)

Note: (Incl. Ref.No. 4)

$16.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-05932

Outer Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-05289

Fuel Cap

$21.99

$

In Stock, Qty 10

0

19

Troy-Bilt 753-05933

Fuel Tank Assembly

Note: (Incl. Ref.No. 18)

$23.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 753-05941

Engine Cover Assembly

Note: (Incl. Ref.No. 3, 21 & 22)

$

$

Not available

21

Troy-Bilt 753-05935

Spark Plug Cover

$2.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 753-05377

Screw
(Superseded to 710-04604)

$3.99

$

In Stock, Qty 12

0

23

Troy-Bilt 753-05936

Upper Tube

$17.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 753-05937

Lower Tube

$17.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 753-05939

Latch Spring

$2.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 753-05942

Switch Cover

$

$

Not available

27

Troy-Bilt 753-05964

Wire Ground

$2.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 753-05965

Strap Ground

$2.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 753-01202

Screw

$

$

Currently unavailable
