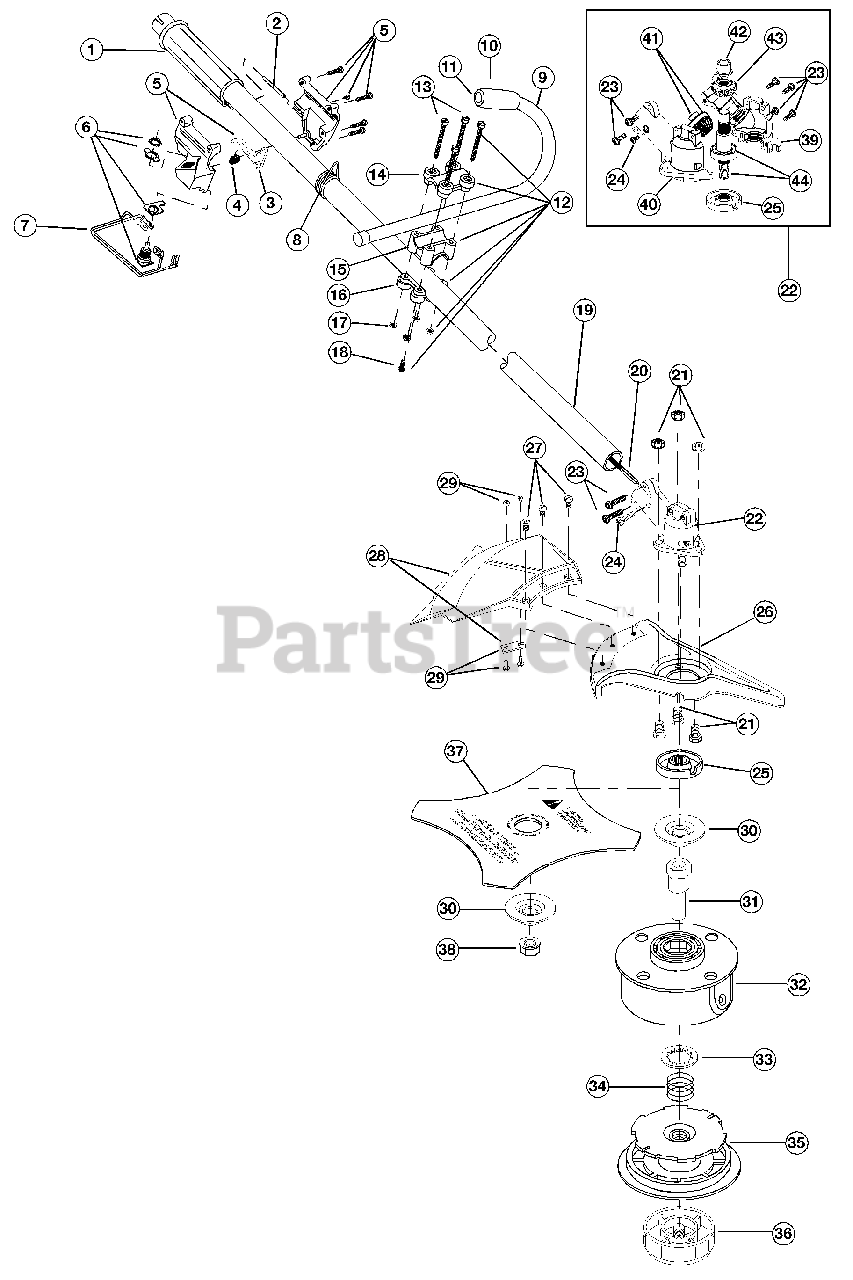

TB 4000 (41ADTB 4G063) - Troy-Bilt String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

Troy-Bilt 791-180866

Grip

$

$

Not available

2

Troy-Bilt 791-181688

Throttle Cable Assembly
(Superseded to 753-05088)

$20.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 791-180975

Throttle Trigger
(Superseded to 791-181807)

$10.99

$

In Stock, Qty 6

0

4

Troy-Bilt 791-610314

Throttle Trigger Spring

$10.99

$

Usually ships in 3-6 days

0

5

MTD 791-181689

Throttle Trigger Assembly

Note: (includes 3 & 4)

$

$

Not available

6

Troy-Bilt 791-180252

Switch Assembly

$

$

Not available

7

Troy-Bilt 791-181690

Wire Lead Assembly

$

$

Not available

8

Troy-Bilt 791-610327

Shoulder Harness Clamp

$34.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-182832

J-Handle Assembly

Note: (includes 10 & 11)

$

$

Not available

10

Troy-Bilt 791-612831

Grip

$12.99

$

Usually ships in 3-6 days

0

11

MTD 791-612021

Tube Closure
(Superseded to 1925)

$2.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 791-683295

Handle Bracket Assembly

Note: (includes 13-18)

$48.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 791-181812

Upper Handle Clamp

$9.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 791-181814

Lower Handle Clamp

$9.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181815

Nut

$4.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

19

MTD 791-181691

Drive Shaft Housing Assembly

$

$

Not available

20

MTD 791-182833

Flexible Drive Shaft

$

$

Not available

21

Troy-Bilt 791-182200

Shield Mount Screw Assembly

$7.49

$

In Stock, only 2 left!

0

22

Troy-Bilt 791-182193

2 piece Gearbox Assembly

Note: (includes 23-25)

$105.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 791-182519

Anti-Rotation Screw

$5.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 791-182196

Blade Driver

$23.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 791-147492

Blade Shield/Shield Mount

$134.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 791-683304

Shield Mounting Screw

$12.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 791-182189

Shield and Blade Assembly

Note: (includes 29)

$69.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 791-682061

Blade Assembly

$15.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 791-147490

Retaining Washer

$12.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 791-612483

Spool Shaft

$59.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 791-683301

Outer Spool and Eyelet Assembly

Note: (includes 33)

$51.99

$

In Stock, Qty 5

0

33

Troy-Bilt 791-612026

Retainer
(Superseded to 1772)

$7.49

$

In Stock, Qty 12

0

34

Troy-Bilt 791-610636

Spring
(Superseded to 791-610636B)

$10.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 791-147495

Inner Reel

$27.99

$

In Stock, Qty 5

0

36

Troy-Bilt 791-180814

Bump Head Knob Assembly
(Superseded to 791-180814B)

$21.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 791-49M5873L063

4-Tooth Blade

$

$

Currently unavailable

38

Troy-Bilt 791-181699

Nut
(Superseded to 712-04105)

$11.99

$

In Stock, only 2 left!

0

Troy-Bilt 791-613226

Locking Rod Tool

Note: Item not shown

$15.99

$

In Stock, Qty 6

0

Troy-Bilt 791-682075

Shoulder Harness
(Superseded to 791-682075B)

Note: Item not shown

$41.99

$

Usually ships in 3-6 days

0

39

MTD 791-182191

Left Housing

Note: 2 Piece Gearbox Assembly Part - Item 22

$

$

Not available

40

MTD 791-182192

Right Housing

Note: 2 Piece Gearbox Assembly Part - Item 22

$

$

Not available

41

Troy-Bilt 791-182194

Pinion Gear Assembly

Note: 2 Piece Gearbox Assembly Part - Item 22

$33.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 791-182199

Output Shaft Bushing

Note: 2 Piece Gearbox Assembly Part - Item 22

$

$

Not available

43

Troy-Bilt 791-182198

Output Shaft Gear

Note: 2 Piece Gearbox Assembly Part - Item 22

$

$

Not available

44

Troy-Bilt 791-182197

Output Shaft Assembly

Note: (includes 42 & 43); 2 Piece Gearbox Assembly Part - Item 22

$

$

Not available

Troy-Bilt 791-49U1341L063

Replacement Line, 0.095 Diameter

Note: Optional Accessory; Item Not Shown

$

$

Currently unavailable

Troy-Bilt 791-49U5001L063

Reel and Line Assembly

Note: Optional Accessory; Item Not Shown

$

$

Currently unavailable

Troy-Bilt 791-41AM079G063

Brush Cutter Accessory Kit

Note: Optional Accessory; Item Not Shown

$

$

Currently unavailable

Troy-Bilt 791-147498

Bump Head Assembly

Note: (includes 31-36); Optional Accessory; Item Not Shown

$124.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-180014

Blade Retaining Kit

Note: (items 30 & 38); Optional Accessory; Item Not Shown

$

$

Currently unavailable
