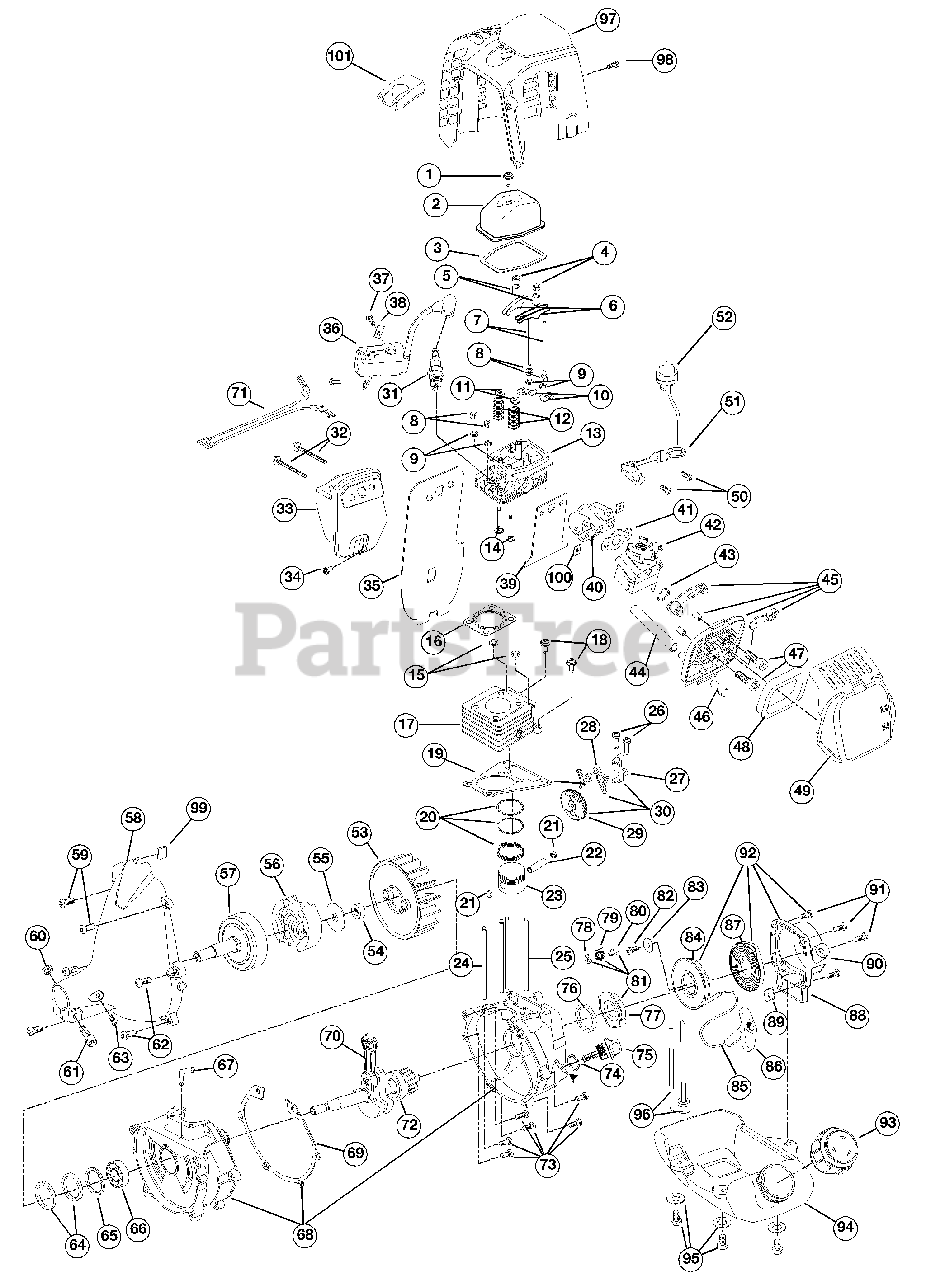

TB 4000 (41ADTB 4G063) - Troy-Bilt String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

Troy-Bilt 791-181025

Valve Cover Screw

$2.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-182098

Valve Cover

$9.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 791-182099

Valve Cover Gasket

$9.49

$

In Stock, only 1 left!

0

4

MTD 791-182340

Rocker Adjustment Nut

$

$

Not available

5

Troy-Bilt 791-182101

Rocker Arm Pivot

$6.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 791-182100

Rocker Arm

$

$

Not available

7

MTD 791-181033

Push Rod

$

$

Not available

8

MTD 791-181034

Hex Nut
(Superseded to 9072)

$

$

Not available

9

MTD 791-181035

Washer

$

$

Not available

10

Troy-Bilt 791-182102

Push Rod Guide

$

$

Not available

11

Troy-Bilt 791-182103

Valve Spring Retainer

$

$

Not available

12

MTD 791-181038

Valve Spring

$

$

Not available

13

MTD 791-182306

Cylinder Head w/Valve Seal (includes 10-14)

$

$

Not available

14

Troy-Bilt 791-181040

Valve

$

$

Not available

15

MTD 791-181000

O-Ring

$

$

Not available

16

Troy-Bilt 791-181001

Cylinder Head Gasket

$

$

Not available

17

Troy-Bilt 791-182132

Cylinder

$

$

Not available

18

Troy-Bilt 791-181003

Screw (M5 x 18.7mm)
(Superseded to 9052-1)

$

$

Not available

19

MTD 791-181004

Cylinder Gasket

$

$

Not available

20

Troy-Bilt 791-182295

Piston Ring Set (3 Piece Oil Ring)
(Superseded to 753-04801)

$

$

Not available

21

Troy-Bilt 791-181008

Wrist Pin Button

$9.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 791-181006

Wrist Pin

$5.99

$

In Stock, only 1 left!

0

23

MTD 753-1243

Piston (3 Piece Oil Ring)

$

$

Not available

24

MTD 791-181010

Cylinder STud(83.5mm)

$

$

Not available

25

MTD 791-181011

Cylinder STud(115.5mm)

$

$

Not available

26

MTD 791-181012

Cam Bracket Screw

$

$

Not available

27

Troy-Bilt 791-181013

Cam Bracket

$

$

Not available

28

MTD 791-182123

Cam Follower (Chromed)

$

$

Not available

29

MTD 791-182124

Cam Gear

$

$

Not available

30

MTD 791-182125

Cam Bracket Assembly (includes 26-29)

$

$

Not available

31

Troy-Bilt 791-180852B

Spark Plug
(Superseded to 794-00082)

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 791-182105

Muffler Mounting Screw

$

$

Not available

33

Troy-Bilt 791-182106

Muffler

$

$

Not available

34

Troy-Bilt 791-182153

Spark Arrestor Screen

$

$

Not available

35

MTD 791-182107

Muffler Gasket

$

$

Not available

36

MTD 753-04226

Module

$

$

Not available

37

Troy-Bilt 791-181066

Screw

$

$

Not available

38

MTD 791-611063

Ground Tab

$

$

Not available

39

Troy-Bilt 791-182131

Insulator Gasket

$

$

Not available

40

Troy-Bilt 791-182109

Insulator

$

$

Not available

41

MTD 791-182270

Carburetor Gasket

$

$

Not available

42

MTD 791-182110

Carburetor

$

$

Not available

43

Troy-Bilt 791-181751

O-Ring, Carburetor

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 791-182379

Breather Hose

$4.49

$

In Stock, only 1 left!

0

45

MTD 791-182111

Air Cleaner Assembly
(Superseded to 753-05451)

$

$

Not available

46

Troy-Bilt 791-182097

Breather assembly

$10.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 791-182133

Screw

$

$

Not available

48

MTD 791-182116

Air Filter

$

$

Not available

49

MTD 791-182115

Air Cleaner Cover
(Superseded to 753-05451)

$

$

Not available

50

Troy-Bilt 791-182105

Screw

$

$

Not available

51

Troy-Bilt 791-182589

Throttle Cable Bracket

$

$

Not available

52

Troy-Bilt 791-181538

Primer and Line Assembly

$

$

Not available

53

Troy-Bilt 791-182113

Flywheel

$

$

Not available

54

Troy-Bilt 791-181731

Spacer

$

$

Not available

55

MTD 791-181074

Clutch Washer

$

$

Not available

56

Troy-Bilt 791-181730

Clutch

$42.99

$

In Stock, Qty 7

0

57

Troy-Bilt 791-180232

Clutch Drum

$

$

Not available

58

Troy-Bilt 791-182829

Clutch Housing

$

$

Not available

59

Troy-Bilt 791-181764

Screw
(Superseded to 791-181844)

$5.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 791-181761

Nut

$

$

Not available

61

Troy-Bilt 791-181760

Engine Bolt

$

$

Not available

62

Troy-Bilt 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

63

Troy-Bilt 791-182188

Anti-Rotation Screw

$

$

Not available

64

MTD 791-182127

Oil Seal

$

$

Not available

65

Troy-Bilt 791-182128

Snap Ring

$

$

Not available

66

Troy-Bilt 791-182134

Bearing

$

$

Not available

67

Troy-Bilt 791-182375

90? Elbow

$

$

Not available

68

MTD 791-182593

Crankcase (includes 69, 72 & 73)

$

$

Not available

69

MTD 791-182136

Crankcase Gasket

$

$

Not available

70

MTD 791-182139

Crankshaft

$

$

Not available

71

MTD 791-182126

Lead Wire

$

$

Not available

72

MTD 791-182138

Bearing

$

$

Not available

73

MTD 791-182147

Screw

$

$

Not available

74

Troy-Bilt 791-181021

O-Ring
(Superseded to 791-181022B)

$

$

Not available

75

Troy-Bilt 791-182378

Oil Cap Dipstick (includes 74)

$9.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 791-182378

Oil Seal

$9.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 791-182187

Pulley with Nut

$

$

Not available

78

Troy-Bilt 791-181747

Retaining Ring

$

$

Not available

79

Troy-Bilt 791-181746

Spring

$4.49

$

Usually ships in 3-6 days

0

80

MTD 791-181745

Ratchet

$

$

Not available

81

MTD 791-182118

Pulley Assembly (includes 77-80)

$

$

Not available

82

Troy-Bilt 791-181740

Screw

$

$

Not available

83

MTD 791-181741

Washer

$

$

Not available

84

Troy-Bilt 791-181738

Recoil Pulley

$

$

Not available

85

Troy-Bilt 791-181742

Rope

$8.99

$

In Stock, only 1 left!

0

86

Troy-Bilt 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

87

Troy-Bilt 791-181739

Recoil Spring

$16.99

$

In Stock, only 2 left!

0

88

Troy-Bilt 791-182120

Recoil Case (includes 82-91)

$

$

Not available

89

MTD 791-182121

Square Nut

$

$

Not available

90

Troy-Bilt 791-182122

Rope Guide

$

$

Not available

91

Troy-Bilt 791-182143

Screw

$

$

Not available

92

MTD 791-182117

Recoil Case Assembly (includes 78-87)

$

$

Not available

93

Troy-Bilt 753-04033

Fuel Cap

$

$

Not available

94

MTD 791-182130

Fuel Tank

$

$

Not available

95

Troy-Bilt 791-182830

Screw with Washer

$

$

Not available

96

Troy-Bilt 791-182129

Fuel Line Assembly

$

$

Not available

97

MTD 791-182288

Engine Cover

$

$

Not available

98

MTD 791-182146

Screw

$

$

Not available

99

Troy-Bilt 791-182157

Wire Grommet

$

$

Not available

100

Troy-Bilt 791-182159

Nut

$

$

Not available

101

Troy-Bilt 791-182293

Spark Plug Cover

$

$

Not available

MTD 791-182595

Crankcase Assembly (includes 24, 25, & 64-76)

Note: not shown

$

$

Not available

MTD 791-182594

Short Block Assembly (includes 1-20, & 64-76)

Note: not shown

$

$

Not available

MTD 791-182307

Valve Stem Seal

Note: not shown

$

$

Not available

Troy-Bilt 791-182153

Spark Arrestor Screen

Note: not shown

$

$

Not available

Troy-Bilt 753-04014

AC-10 Carburetor Repair Kit

Note: not shown

$35.99

$

In Stock, Qty 5

0
