TB 415 CS (41ADT41C966) - Troy-Bilt Super Bronco String Trimmer Boom & Trimmer Assembly TB415CS Parts Diagram

Super Bronco String Trimmer

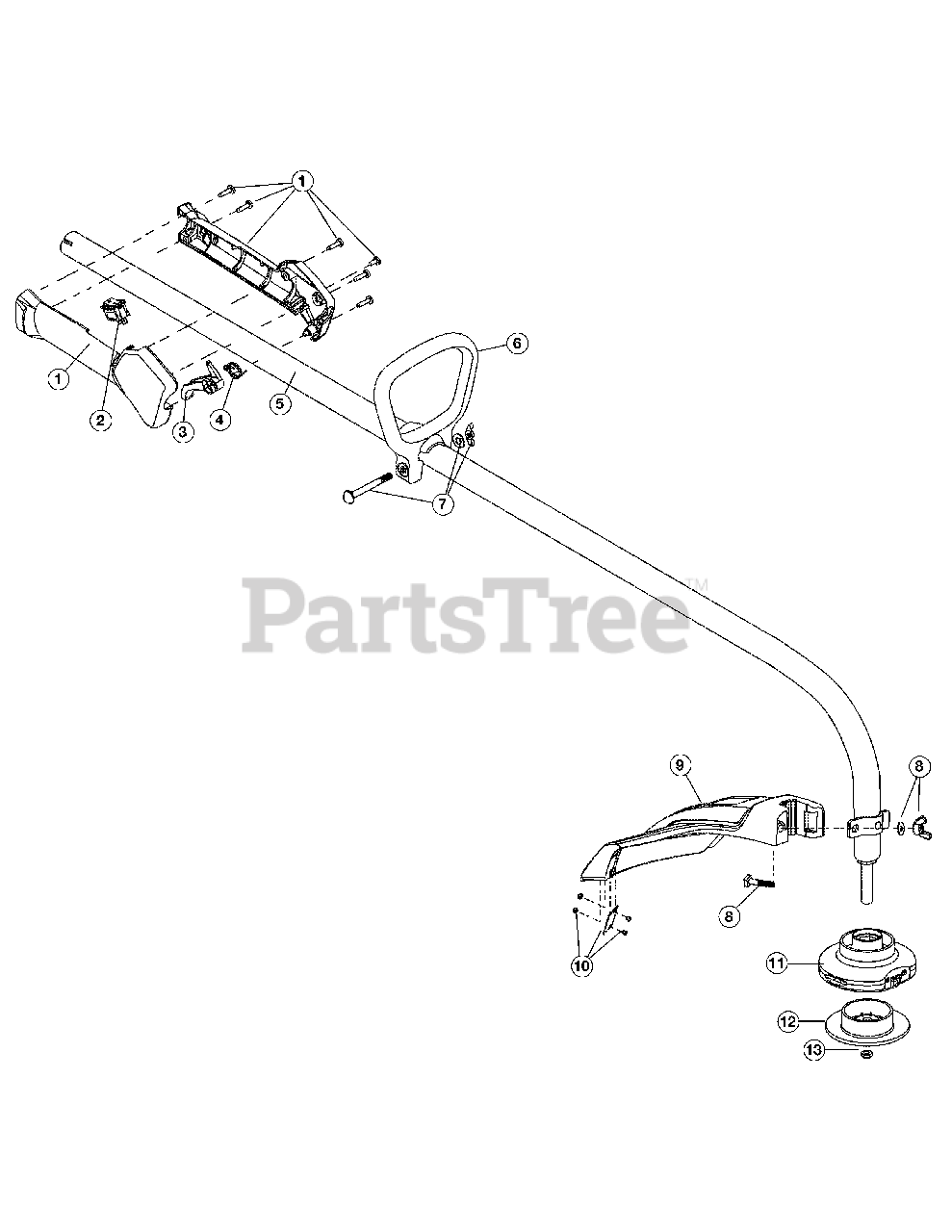

Boom & Trimmer Assembly TB415CS Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (includes 2-4)

$22.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 791-182405

Switch

$11.99

$

In Stock, only 4 left!

0

3

Troy-Bilt 753-04119

Throttle Trigger

$7.99

$

In Stock, Qty 7

0

4

Troy-Bilt 791-182690

Throttle Trigger Spring

$8.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 753-05162

Drive Shaft Housing Assembly

$

$

Not available

6

Troy-Bilt 791-153064

D-Handle (includes 7)

$

$

Not available

7

Troy-Bilt 791-181587

Handle Hardware

$20.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-04282

Guard Mounting Hardware

$27.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 753-05425

Guard (includes 10)

$

$

Not available

10

Troy-Bilt 753-05212

Blade Assembly
(Superseded to 753-06048)

$

$

Not available

11

Troy-Bilt 753-05430

Fixed Line Head Assembly (includes 12 & 13)

$

$

Not available

12

Troy-Bilt 753-05428

Glide Cap
(Superseded to 731-05714)

$17.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 753-05429

Locknut
(Superseded to 712-04018A)

$4.99

$

In Stock, only 3 left!

0

Troy-Bilt 753-05164

Replacement Line
(Superseded to 796-00027)

Note: Optional Accessories, Not Shown

$32.99

$

Usually ships in 3-6 days

0
