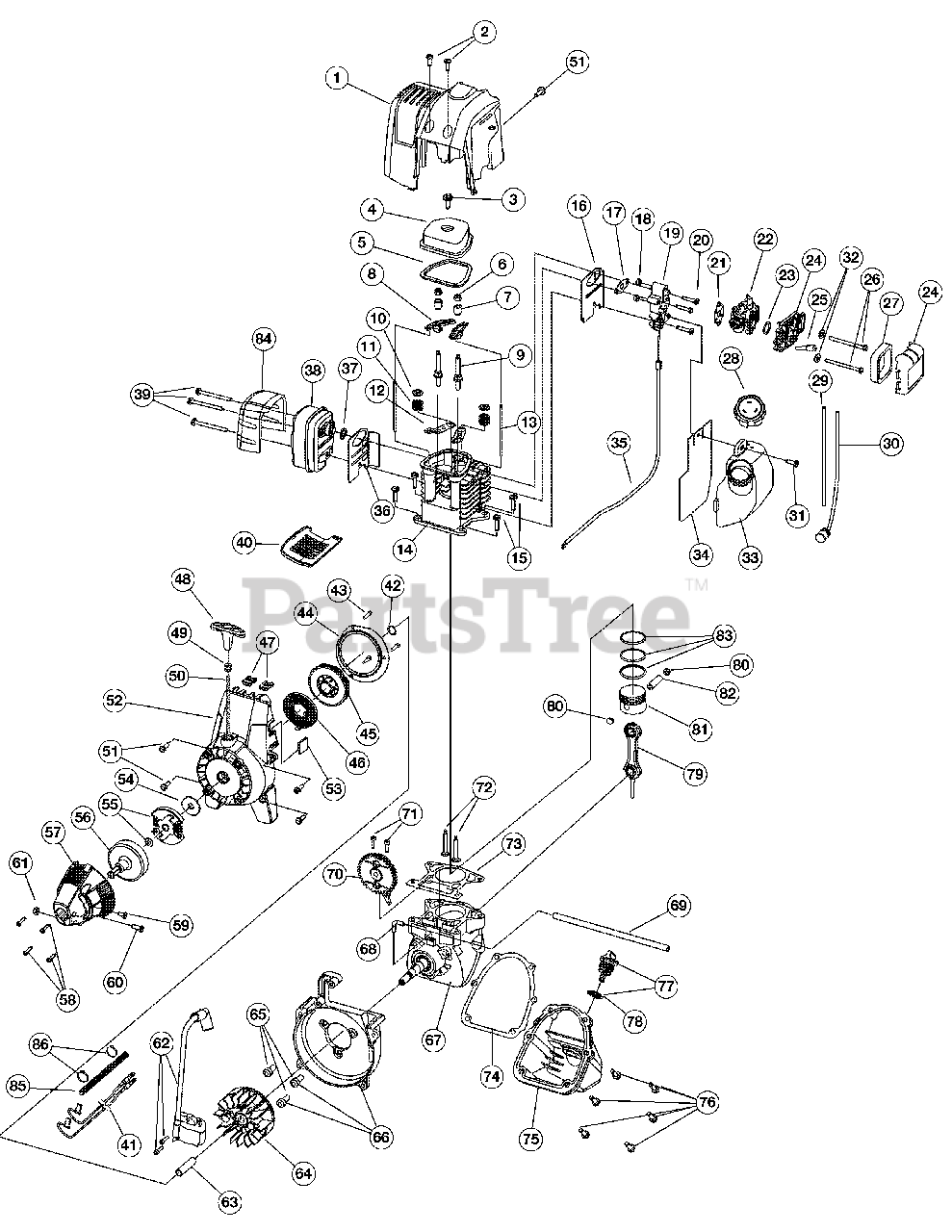

TB 415 CS (41BDT41G966) - Troy-Bilt String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

Troy-Bilt 753-04083

Engine Cover

$

$

Not available

2

Troy-Bilt 791-181930

Engine Cover Screws

$6.49

$

In Stock, Qty 9

0

3

Troy-Bilt 791-181025

Valve Cover Screw

$2.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 791-182098

Valve Cover

$9.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 791-182099

Valve Cover Gasket

$9.49

$

In Stock, only 1 left!

0

6

MTD 791-182340

Rocker Adjustment Nut

$

$

Not available

7

Troy-Bilt 791-182101

Rocker Arm Pivot

$6.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 791-182100

Rocker Arm

$

$

Not available

9

Troy-Bilt 791-182341

Rocker Arm Stud

$

$

Not available

10

Troy-Bilt 791-182103

Valve Spring Retainer

$

$

Not available

11

MTD 791-181038

Valve Spring

$

$

Not available

12

Troy-Bilt 791-182102

Push Rod Guide

$

$

Not available

13

MTD 791-181033

Push Rod

$

$

Not available

14

MTD 753-04816

Cylinder Assembly

Note: (includes 9-12, 15, 72 & 73)

$

$

Not available

15

Troy-Bilt 791-181003

Cylinder Screw
(Superseded to 9052-1)

$

$

Not available

16

Troy-Bilt 791-182345

Intake Baffle Gasket

$4.49

$

In Stock, only 2 left!

0

17

Troy-Bilt 791-182749

Carburetor Mount Gasket

$8.49

$

In Stock, only 3 left!

0

18

MTD 791-181034

Nut
(Superseded to 9072)

$

$

Not available

19

Troy-Bilt 791-182347

Carburetor Mount

Note: (includes 18)

$18.99

$

Usually ships in 3-6 days

0

20

MTD 791-182348

Carburetor Mount Screw

$

$

Not available

21

MTD 791-182732

Carburetor Gasket

$

$

Not available

22

Troy-Bilt 753-1225

Carburetor w/Primer

$66.99

$

In Stock, Qty 16

0

23

Troy-Bilt 791-181751

O-Ring, Carburetor

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 753-04223

Air Filter Cover Assembly

Note: (includes 25 & 27)

$28.99

$

In Stock, only 4 left!

0

25

Troy-Bilt 791-182097

Breather Tube

$10.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 791-181750

Air Filter Mounting Screw

$5.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 791-181757

Air Filter

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 753-1229

Fuel Cap

$21.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 791-182352

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 791-182353

Fuel Pick-Up Line with Filter

$9.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 753-04510

Screw
(Superseded to 710-04185)

$

$

Not available

32

Troy-Bilt 791-182409

Washer

$4.49

$

In Stock, Qty 5

0

33

MTD 753-1230

Fuel Tank Assembly

Note: (includes 28-30)

$

$

Not available

34

MTD 791-182356

Fuel Tank Shield

$

$

Not available

35

Troy-Bilt 753-1231

Throttle Cable

$16.99

$

In Stock, only 3 left!

0

36

MTD 791-182358

Muffler Baffle

$

$

Not available

37

Troy-Bilt 791-181048

Muffler Gasket
(Superseded to 9094-1)

$4.49

$

In Stock, only 1 left!

0

38

MTD 791-182359

Muffler

Note: (includes 37)

$

$

Not available

39

MTD 791-182361

Muffler Mounting Screw

$

$

Not available

40

MTD 753-04092

Muffler Cover

$

$

Not available

41

MTD 791-182804

Switch Wire Assembly

$

$

Not available

42

Troy-Bilt 753-04288

Palnut

$9.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 753-05074

Pressure Plate Assembly

Note: (includes 43)

$

$

Not available

45

Troy-Bilt 753-05072

Recoil Pulley Assembly

Note: (includes 42 & 50)

$38.99

$

In Stock, only 3 left!

0

46

Troy-Bilt 753-04286

Recoil Spring

$24.99

$

In Stock, Qty 6

0

47

Troy-Bilt 791-182366

Nut Clip

$5.49

$

In Stock, only 2 left!

0

48

Troy-Bilt 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

49

Troy-Bilt 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

50

Troy-Bilt 791-182661

Rope

$

$

Not available

51

Troy-Bilt 791-181020

Housing Screw
(Superseded to 9054)

$4.49

$

In Stock, Qty 5

0

52

Troy-Bilt 753-05158

Starter Housing Assembly

Note: (includes 42-51)

$82.99

$

In Stock, Qty 7

0

53

Troy-Bilt 791-182537

Wire Grommet

$7.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

55

Troy-Bilt 753-1238

Clutch w/Spacer

$41.99

$

In Stock, Qty 17

0

56

Troy-Bilt 791-153592

Clutch Drum

$48.99

$

In Stock, Qty 14

0

57

MTD 753-05076

Clutch Cover Assembly

Note: (includes 58-61)

$

$

Not available

58

Troy-Bilt 791-181345

Cover Screw

$3.99

$

In Stock, Qty 17

0

59

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

60

Troy-Bilt 753-04003

Screw
(Superseded to 9689A)

$10.99

$

In Stock, only 2 left!

0

61

Troy-Bilt 791-180217

Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 9

0

62

MTD 791-182725

Ignition Module with Screws

$

$

Not available

63

Troy-Bilt 753-05078

Spacer
(Superseded to 750-04434)

$6.49

$

In Stock, Qty 5

0

64

Troy-Bilt 753-05240

Flywheel

$71.99

$

In Stock, only 3 left!

0

64

Troy-Bilt 914-04016

Woodruff Key.125 x .375

Note: Not shown

$4.49

$

Usually ships in 3-6 days

0

65

Troy-Bilt 791-181861

Screw

$4.49

$

Usually ships in 3-6 days

0

66

MTD 791-182743

Shroud Assembly

Note: (includes 65)

$

$

Not available

67

Troy-Bilt 753-05079

Crankcase Assembly

Note: (includes 68 & 69)

$

$

Not available

68

Troy-Bilt 791-182375

90° Elbow

$

$

Not available

69

Troy-Bilt 791-182379

Breather Hose

$4.49

$

In Stock, only 1 left!

0

70

Troy-Bilt 753-04919

Cam Bracket Assembly

$34.99

$

Usually ships in 3-6 days

0

71

MTD 791-181012

Cam Bracket Screw

$

$

Not available

72

Troy-Bilt 791-181040

Valves, Intake and Exhaust

$

$

Not available

73

Troy-Bilt 791-182374

Cylinder Gasket

$

$

Not available

74

Troy-Bilt 791-181018

Oil Pan Gasket

$

$

Not available

75

MTD 791-182377

Oil Pan

Note: (includes 74 & 76)

$

$

Not available

76

Troy-Bilt 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.49

$

In Stock, Qty 5

0

77

Troy-Bilt 753-04041

Dipstick Assembly
(Superseded to 791-182378)

Note: (includes 78)

$9.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 791-182290

O-Ring

$4.99

$

In Stock, only 1 left!

0

79

Troy-Bilt 791-181009

Connecting Rod

$

$

Not available

80

Troy-Bilt 791-181008

Wrist Pin Button

$9.99

$

Usually ships in 3-6 days

0

81

MTD 753-04878

Piston

Note: (includes 83)

$

$

Not available

82

Troy-Bilt 753-05176

Wrist Pin

$

$

Not available

83

Troy-Bilt 753-04801

Piston Ring Set

$

$

Not available

84

MTD 791-182360

Heat Shield

$

$

Not available

85

Troy-Bilt 753-04098

Wire Lead Cover

$

$

Not available

86

MTD 791-160428

Cable Clamp

$

$

Not available

MTD 791-180890

Spark Arrestor

Note: (not shown)

$

$

Not available

Troy-Bilt 791-180852B

Spark Plug
(Superseded to 794-00082)

Note: (not shown)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 753-05081

Short Block Assembly

Note: (includes 3-15, 67-83) (not shown)

$

$

Not available
