TB 42 (13B277KS066) - Troy-Bilt 42" Lawn Tractor (2016) Hood & Grill Parts Diagram

42" Lawn Tractor

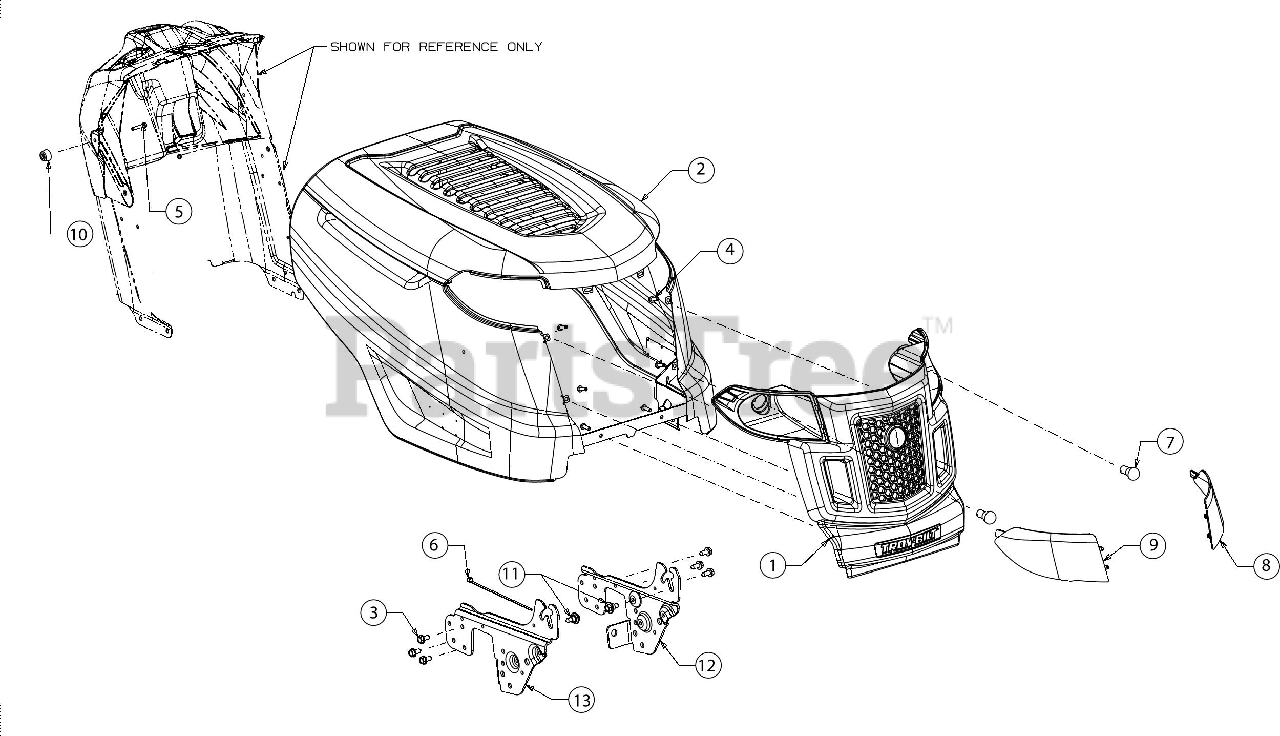

Hood & Grill Parts Diagram

  • Title

1

Troy-Bilt 631-04272

GRILLE ASSEMBLY (TROY-BILT)

$74.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 777D13024

LABEL-TROYBILT/GEAR

$9.49

$

In Stock, only 1 left!

0

2

Troy-Bilt 683-04441A-0638

HOOD ASSEMBLY (K STYLE)

$378.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 783-06302-0638

HOOD W/LOUVERS

$106.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04484

SCREW 5/16-18 X .750

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-05108

SCREW 1/4 X .750

$3.99

$

In Stock, Qty 17

0

5

Troy-Bilt 710-05281

SCREW #12 X 1.15

$3.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 725-0157

CABLE TIE 7",1"

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 925-0963

MINIATUURE BULB 12V

$7.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 731-06095

LENS-(LH)

$13.99

$

In Stock, Qty 5

0

9

Troy-Bilt 731-06096

LENS-(RH)

$12.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 731-06404

DASH BUMPER K STYLE

$9.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 783-05327B-0637

SUPPORT BRACKET (LH)

$42.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 783-05328A-0637

SUPPORT BRACKET (RH)
(Superseded to 783-05328B-0637)

$45.99

$

In Stock, only 2 left!

0
