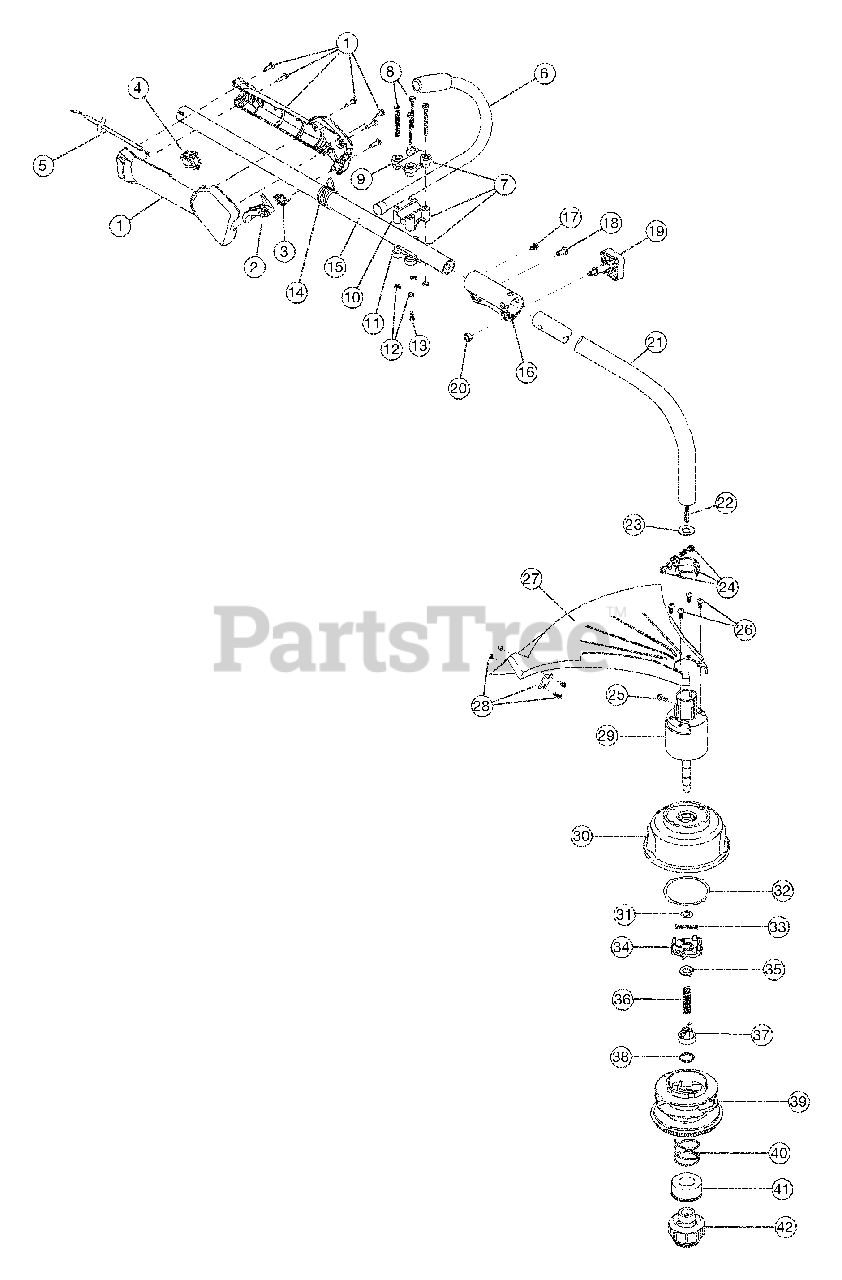

TB 425 CS (41ADT42C766) - Troy-Bilt String Trimmer Boom And Trimmer Parts Diagram

String Trimmer

Boom And Trimmer Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing and Trigger Assembly

Note: (includes 2 & 3)

$19.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 15

0

4

Troy-Bilt 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

5

MTD 753-04297

Throttle Cable

$

$

Not available

6

Troy-Bilt 791-180687

J-Handle Assembly

$38.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-683295

Handle Bracket Assembly

Note: (includes 8-13)

$42.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

14

Troy-Bilt 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-04503

Upper Drive Shaft Housing Assembly

$

$

Not available

16

Troy-Bilt 753-1190

EZ-Link(TM) Coupler

Note: (includes 17-20)

$21.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

18

Troy-Bilt 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

19

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

20

Troy-Bilt 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

21

Troy-Bilt 753-04304

Lower Drive Shaft Housing Assembly

$53.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 791-181852

Lower Flexible Drive Shaft

$58.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 791-181560

Palnut
(Superseded to 753-04348)

$6.49

$

In Stock, only 1 left!

0

24

Troy-Bilt 791-153597

Lower Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

26

Troy-Bilt 791-180531

Shield Mounting Hardware
(Superseded to 791-181858)

$

$

Not available

27

Troy-Bilt 791-181659

Shield and Blade Assembly

Note: (includes 28)

$

$

Not available

28

Troy-Bilt 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

29

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

30

Troy-Bilt 791-181457

Outer Spool Assembly

Note: (includes 31)

$37.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 791-181458

Retaining Ring

$4.49

$

In Stock, only 2 left!

0

32

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

33

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, Qty 19

0

34

Troy-Bilt 753-04257

Slider

$6.99

$

In Stock, Qty 8

0

35

Troy-Bilt 791-181532

E-Clip

$4.49

$

In Stock, Qty 16

0

36

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

37

Troy-Bilt 791-181462

Plunger

$

$

Not available

38

Troy-Bilt 791-181463

C-Clip

$3.99

$

In Stock, Qty 5

0

39

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$30.99

$

In Stock, Qty 7

0

40

Troy-Bilt 791-181465

Large Spring

$

$

Currently unavailable

41

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

42

Troy-Bilt 791-181468

Bump Head Knob Assembly
(Superseded to 791-181468B)

Note: (includes 40 & 41)

$15.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-180120

Replacement Line, 0.095 Diameter
(Superseded to 953-1156)

Note: Optional Accessory; Item Not Shown

$31.99

$

In Stock, Qty 7

0

Troy-Bilt 753-04218

Reel and Line Assembly

Note: Optional Accessory; Item Not Shown

$

$

Not available

Troy-Bilt 791-682075

Shoulder Strap Assembly
(Superseded to 791-682075B)

Note: Optional Accessory; Item Not Shown

$36.99

$

Usually ships in 3-6 days
