TB 425 CS (41ADT42C966) - Troy-Bilt String Trimmer Boom & Trimmer Curved Shaft Parts Diagram

String Trimmer

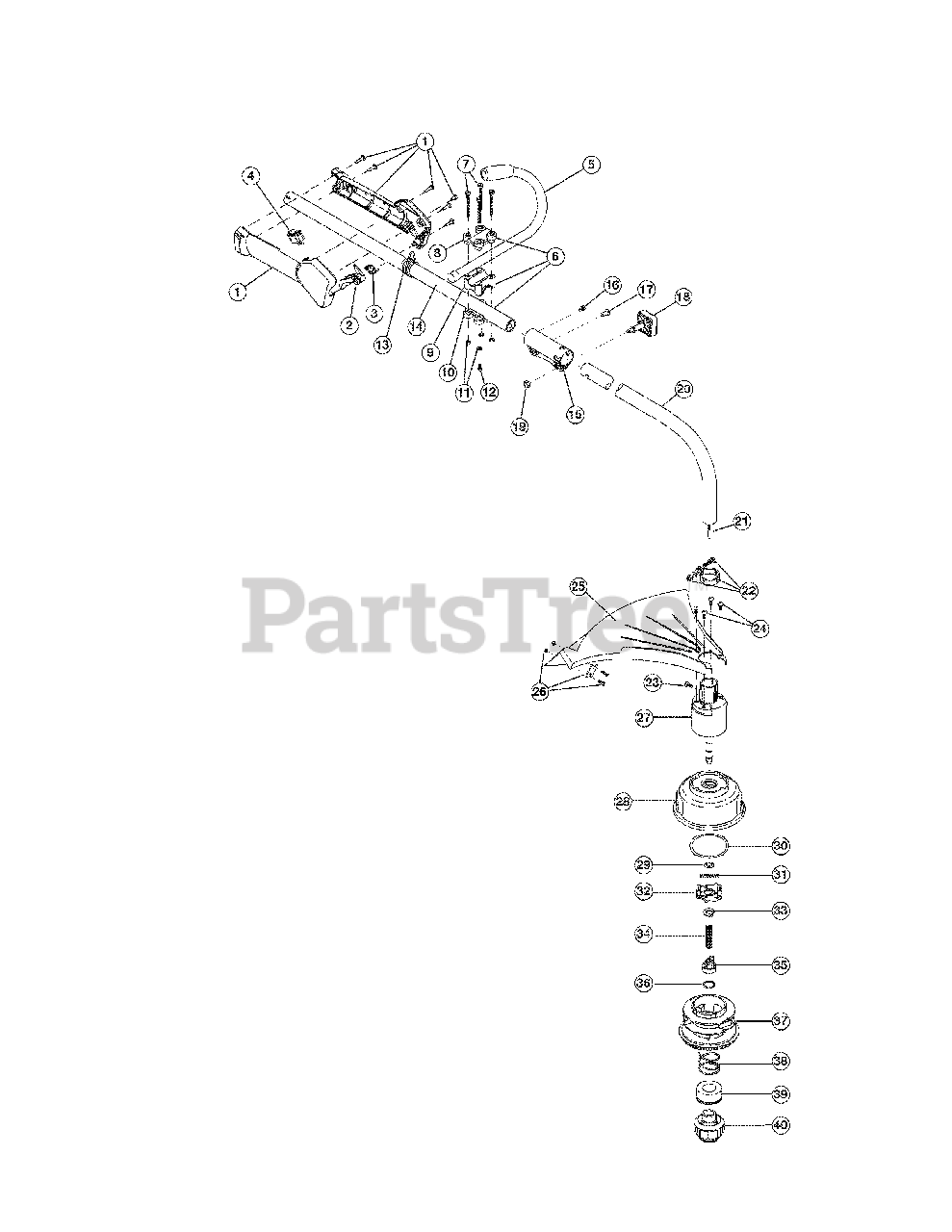

Boom & Trimmer Curved Shaft Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (includes 2-4)

$22.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 753-04119

Throttle Trigger

$7.99

$

In Stock, Qty 7

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$8.49

$

In Stock, only 2 left!

0

4

Troy-Bilt 791-182405

Switch Assembly

$11.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 791-180687

J-Handle Assembly

$41.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 791-683295

Handle Bracket Assembly (includes 7-12)

$48.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 791-181812

Upper Handle Clamp

$9.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-181814

Lower Handle Clamp

$9.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 791-181815

Nut

$4.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

13

Troy-Bilt 791-610327

Harness Clip

$34.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-1247

Upper Drive Shaft Housing Assembly
(Superseded to 753-04503)

$

$

Not available

15

Troy-Bilt 753-1190

Split Boom Coupler (includes 16-19)

$24.99

$

In Stock, Qty 8

0

16

Troy-Bilt 791-182057

Screw

$4.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 791-181617

Bolt

$5.99

$

In Stock, Qty 8

0

18

Troy-Bilt 791-181981

Adjustment Knob (includes 19)
(Superseded to 697-00661-9)

$7.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.99

$

In Stock, only 3 left!

0

20

Troy-Bilt 753-04304

Lower Drive Shaft Housing Assembly

$61.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 791-181852

Lower Flexible Drive Shaft

$62.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 791-153597

Lower Clamp Assembly

$

$

Not available

23

Troy-Bilt 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

24

Troy-Bilt 791-180531

Shield Mounting Hardware
(Superseded to 791-181858)

$

$

Not available

25

Troy-Bilt 791-181659

Shield Assembly (includes 26)

$

$

Not available

26

Troy-Bilt 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

27

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

28

Troy-Bilt 791-181457

Outer Spool Assembly (includes 29)

$42.99

$

In Stock, Qty 8

0

29

Troy-Bilt 791-181458

Retaining Ring

$4.99

$

In Stock, Qty 12

0

30

Troy-Bilt 791-181561

Thrust Washer

$4.99

$

In Stock, only 4 left!

0

31

Troy-Bilt 791-181459

Small Spring

$

$

Not available

32

Troy-Bilt 791-181461

Slider
(Superseded to 753-04257)

$7.99

$

In Stock, Qty 14

0

33

Troy-Bilt 791-181532

E-Clip

$4.99

$

In Stock, Qty 14

0

34

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, only 3 left!

0

35

Troy-Bilt 791-181462

Plunger

$

$

Not available

36

Troy-Bilt 791-181463

C-Clip

$

$

Not available

37

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$34.99

$

In Stock, Qty 8

0

38

Troy-Bilt 791-181465B

Large Spring

$11.99

$

In Stock, only 2 left!

0

39

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

40

Troy-Bilt 791-181468B

Bump Head Knob Assembly (includes 38 & 39)

$

$

Not available

Troy-Bilt 791-180120

Replacement Line, 0.095 Diameter (NOT SHOWN)
(Superseded to 953-1156)

$33.99

$

In Stock, only 2 left!

0

Troy-Bilt 753-04218

Reel and Line Assembly (NOT SHOWN)

$

$

Not available

Troy-Bilt 791-682075B

Shoulder Strap Assembly (NOT SHOWN)

$41.99

$

Usually ships in 3-6 days
