TB 4400 B (41AG402B766) - Troy-Bilt Hedge Trimmer General Assembly Parts Diagram

Hedge Trimmer

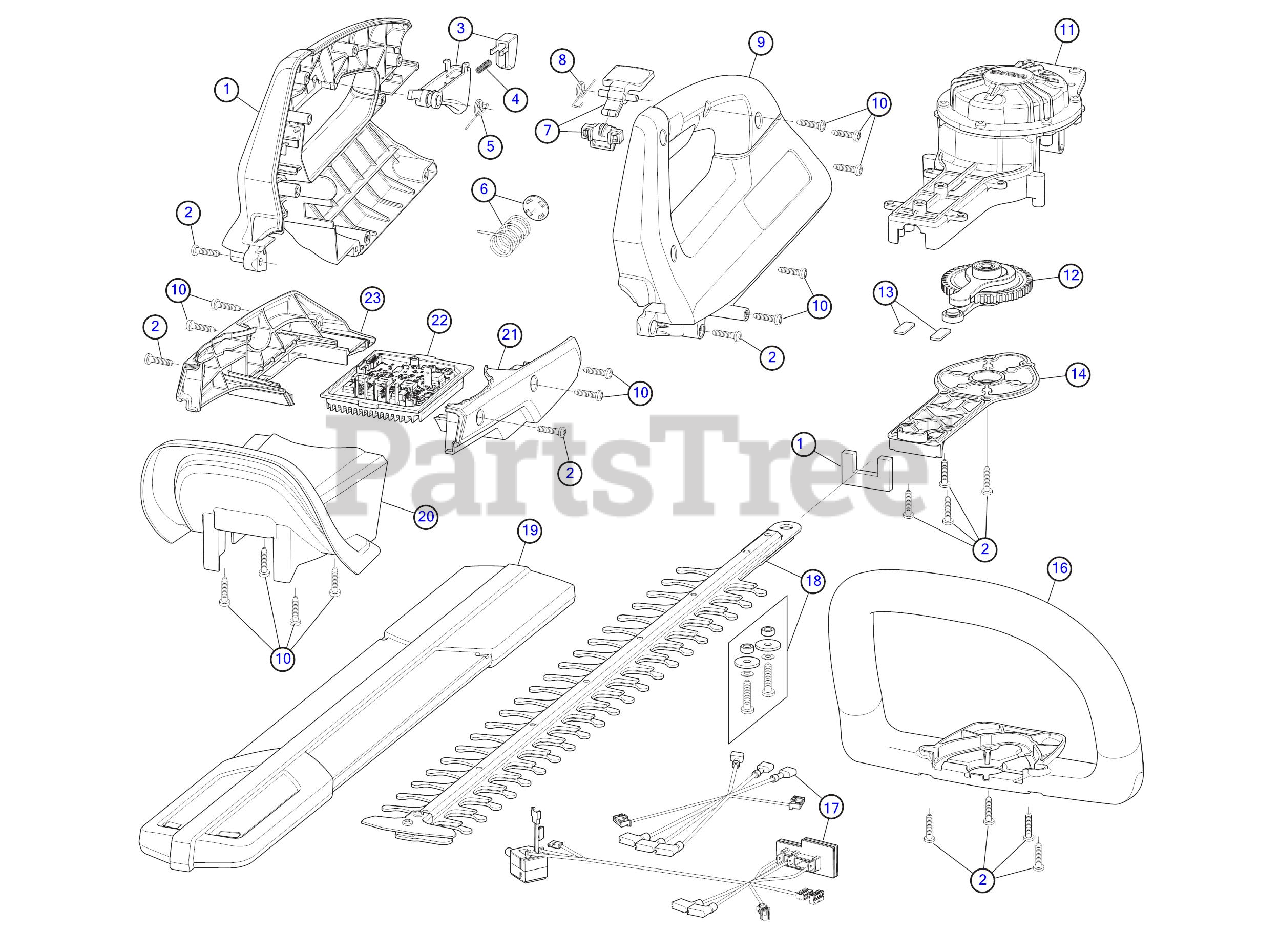

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-08642

Right Battery Housing

Note: (Incl. 2)

$9.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-06302

Screw

$4.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-08643

Trigger Assembly

Note: (Incl. 4 & 5)

$3.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 732-05434

Lockout Spring

$1.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 732-04270A

Trigger Spring
(Superseded to 753-05007)

$4.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 732-05407

Battery Spring Assembly

$2.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-08644

Battery Latch Assembly

Note: (Incl. 8)

$3.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 732-04270A

Battery Latch Spring
(Superseded to 753-05007)

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-08645

Left Battery Housing

Note: (Incl. 2 & 10)

$9.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-04510

Screw

$2.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-08654

Motor

Note: (Incl. 2 & 12 - 15)

$150.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 753-08646

Gear & Link Assembly

Note: (Incl. 13)

$35.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 731-11954

Wear Plate

$2.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-08647

Gearbox Plate Assembly

Note: (Incl. 2)

$9.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 721-04846

Felt Seal

$2.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 753-08648

Handle

Note: (Incl. 2)

$9.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-08649

Wire Harness Assembly

$36.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-08650

Blade Assembly

$51.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 731-11898

Scabbard

$10.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 753-08651

Guard

Note: (Incl. 10)

$8.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-08652

Left Controller Housing

Note: (Incl. 2 & 10)

$3.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 725-06732A

Controller

$92.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-08653

Right Controller Housing

Note: (Incl. 2 & 10)

$4.49

$

Usually ships in 3-6 days

0

Troy-Bilt 490-280-Y001

4Ah Lithium-Ion Battery

Note: (Sold Separately)

$252.99

$

Usually ships in 3-6 days

0

Troy-Bilt 490-280-Y003

Charger

Note: (Sold Separately)

$151.99

$

Usually ships in 3-6 days

0

Troy-Bilt 490-280-Y002

6Ah Lithium-Ion Battery

Note: (Sold Separately)

$352.99

$

Usually ships in 3-6 days

0
