TB 449 E (12AE449D066) - Troy-Bilt Walk-Behind Mower (2008) General Assembly Parts Diagram

Walk-Behind Mower

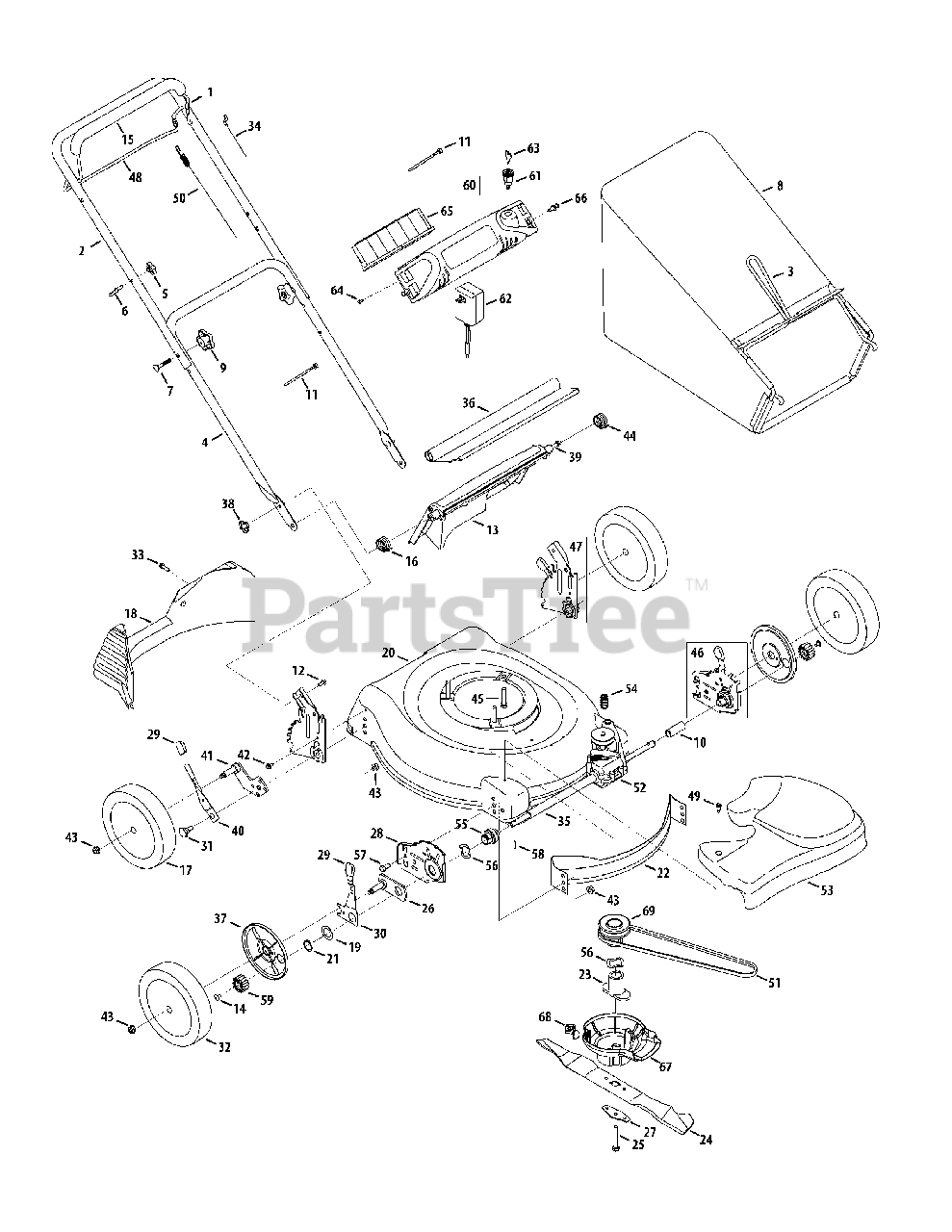

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 747-1161A

Blade Control

Variations

Troy-Bilt 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 6

0

$14.99

$

In Stock, Qty 6

0

2

Troy-Bilt 749-1233D

Upper Handle
(Superseded to 749-1233D-0637)

Variations

Troy-Bilt 749-1233D-0637

Upper Handle, Electric - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 747-04080A

Grass Catcher Frame

Variations

Troy-Bilt 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$63.99

$

In Stock, only 4 left!

0

$63.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

Troy-Bilt 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$35.99

$

In Stock, only 3 left!

0

$35.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 720-0279

Wing Nut

$4.99

$

In Stock, Qty 15

0

6

Troy-Bilt 710-1205

Rope Guide

$4.49

$

In Stock, Qty 12

0

7

Troy-Bilt 710-1174

Carriage Bolt ,5/16-18 x 2

$7.99

$

In Stock, Qty 16

0

8

Troy-Bilt 664-04011

Grass Bag Assembly
(Superseded to 964-04007A)

$138.99

$

In Stock, Qty 11

0

9

Troy-Bilt 720-04072

Hand Knob
(Superseded to 720-04072A)

$7.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 750-04595

Sleeve Spacer - LH

$4.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0703

Carriage Bolt ,1/4-20

$4.49

$

In Stock, Qty 15

0

13

Troy-Bilt 731-05865

Rear Discharge Door
(Superseded to 731-06847)

$30.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 710-04531

Screw 1/4-20

$5.49

$

In Stock, Qty 10

0

15

Troy-Bilt 731-04204

Bail Cover

$12.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 732-04090A

Torsion Spring - RH

$8.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 734-04014B

Rear Wheel, 8" x 2.125"
(Superseded to 753-08175)

$45.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 736-0474

Washer, 1.5" OD

$7.49

$

In Stock, Qty 11

0

20

Troy-Bilt 787-01277

Deck - 21"

Variations

Troy-Bilt 787-01277-0665

DECK-21" - YARDMAN GREEN (0665)

$338.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01277-0638

DECK-21" - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 787-01277-0691

DECK-21" - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 787-01277-0729

DECK-21" - STORM GRAY (0729)

$

$

Not available

$273.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 716-0102

Snap Ring

$5.49

$

In Stock, Qty 7

0

22

Troy-Bilt 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

23

Troy-Bilt 748-04082

Blade Adapter

Note: Equipped with Engine Model # 124T05-0947-B2

$39.99

$

In Stock, Qty 6

0

23

Troy-Bilt 748-04015A

One Piece Blade Adapter
(Superseded to 948-04015A)

Note: Equipped with Engine Model # 124T05-0486-E1

$69.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 742-0741

21" Mulch Blade
(Superseded to 942-0741A)

$31.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 710-1257

Hex Bolt , 3/8-24 x 2.5

$8.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 687-02334

Pivot Plate Assembly
(Superseded to 987-02334)

$10.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$6.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 787-01298

Height Adjustment Plate - RH
(Superseded to 787-01298A-0637)

$19.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 787-01299

Height Adjustment Plate - LH
(Superseded to 787-01299A-0637)

$15.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 720-0426

Adjustment Lever Knob
(Superseded to 731-13116-1)

$14.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 732-0706

Front Lever - RH

$16.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 732-0707

Front Lever - LH

$16.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 738-04266

Shoulder Screw

$6.99

$

In Stock, only 3 left!

0

32

Troy-Bilt 734-04018A

Front Wheel, 8" x 2.125"
(Superseded to 734-04018C)

$20.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 746-1132

Control Cable - 40.75"
(Superseded to 946-1132)

$23.99

$

In Stock, Qty 15

0

35

Troy-Bilt 750-04594

Sleeve Spacer - RH

$9.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 731-05642

Trailshield
(Superseded to 731-05642A)

$30.99

$

In Stock, only 4 left!

0

37

Troy-Bilt 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 13

0

38

Troy-Bilt 712-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 747-04587

Rear Door Pivot Rod

$16.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 732-04175

Spring Lever

$12.99

$

In Stock, only 2 left!

0

41

Troy-Bilt 687-02333

Pivot Arm Assembly - RH
(Superseded to 987-02333)

$17.99

$

In Stock, only 2 left!

0

41

Troy-Bilt 687-02332

Pivot Arm Assembly - LH
(Superseded to 987-02332)

$19.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 710-1652

AB Screw

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 732-04089A

Torsion Spring - LH

$8.49

$

Usually ships in 3-6 days

0

45

Troy-Bilt 710-0654A

TT Sems Screw, 3/8-16 x 1.00

$4.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 687-02193A

Ht. Adjustment Assy. Front - LH
(Superseded to 987-02193A)

$70.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 687-02194A

Ht. Adjustment Assy. Front - RH
(Superseded to 987-02194A)

$70.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 687-02270A

Rear Handle Bracket Assy. - LH
(Superseded to 987-02270A)

$38.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 687-02271A

Rear Handle Bracket Assy. - RH
(Superseded to 987-02271A)

$

$

Not available

48

Troy-Bilt 747-1214

Drive Control

$24.99

$

In Stock, only 4 left!

0

49

Troy-Bilt 710-1650

Shoulder Screw

$4.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 746-04203

Drive Cable
(Superseded to 946-04203)

$51.99

$

In Stock, only 3 left!

0

51

Troy-Bilt 754-0637A

V-Belt
(Superseded to 954-0637A)

$15.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 618-04376A

Transmission Assembly
(Superseded to 918-04376B)

$

$

Not available

53

Troy-Bilt 731-05020A

Front Drive Cover
(Superseded to 931-05020A)

$74.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 732-1043

Belt Tension Spring

$4.99

$

In Stock, Qty 9

0

55

Troy-Bilt 687-02347

Bearing Assembly
(Superseded to 987-02347)

$18.99

$

In Stock, only 2 left!

0

56

Troy-Bilt 736-0447

Wave Washer

$4.49

$

In Stock, Qty 16

0

57

Troy-Bilt 710-0216

Hex Screw

$4.49

$

In Stock, Qty 8

0

58

Troy-Bilt 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 17

0

59

Troy-Bilt 717-1762

Gear, 14T - RH

$14.99

$

In Stock, only 4 left!

0

59

Troy-Bilt 717-1761

Gear, 14T - LH

$14.99

$

In Stock, only 2 left!

0

60

Troy-Bilt 625-04029

Electric Start Harness Assembly
(Superseded to 925-04072)

$105.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 725-04347

Key Switch
(Superseded to 925-04347)

$35.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 725-04329

Battery Charger 12V
(Superseded to 725-06121B)

$

$

Not available

63

Troy-Bilt 725-0201

Key
(Superseded to 925-0201)

$9.99

$

In Stock, Qty 9

0

64

Troy-Bilt 710-1667A

Screw, #10-16 x .75

$4.49

$

In Stock, Qty 13

0

65

Troy-Bilt 725-04323

12 Volt Battery
(Superseded to 925-04323)

$121.99

$

In Stock, only 3 left!

0

66

Troy-Bilt 728-0199

Plastic Rivet

$4.99

$

In Stock, Qty 20+

0

67

Troy-Bilt 731-06029

Engine Baffle
(Superseded to 753-06116)

$17.99

$

In Stock, Qty 7

0

68

Troy-Bilt 787-01593

Engine Baffle Bracket

$6.49

$

In Stock, only 3 left!

0

69

Troy-Bilt 656-04047

Drive Pulley Assembly
(Superseded to 656-04047A)

Note: Equipped with Engine Model # 124T05-0947-B2

$26.99

$

In Stock, only 1 left!

0
