TB 45 E (41ACT45P966) - Troy-Bilt String Trimmer, Electric General Assembly Parts Diagram

String Trimmer, Electric

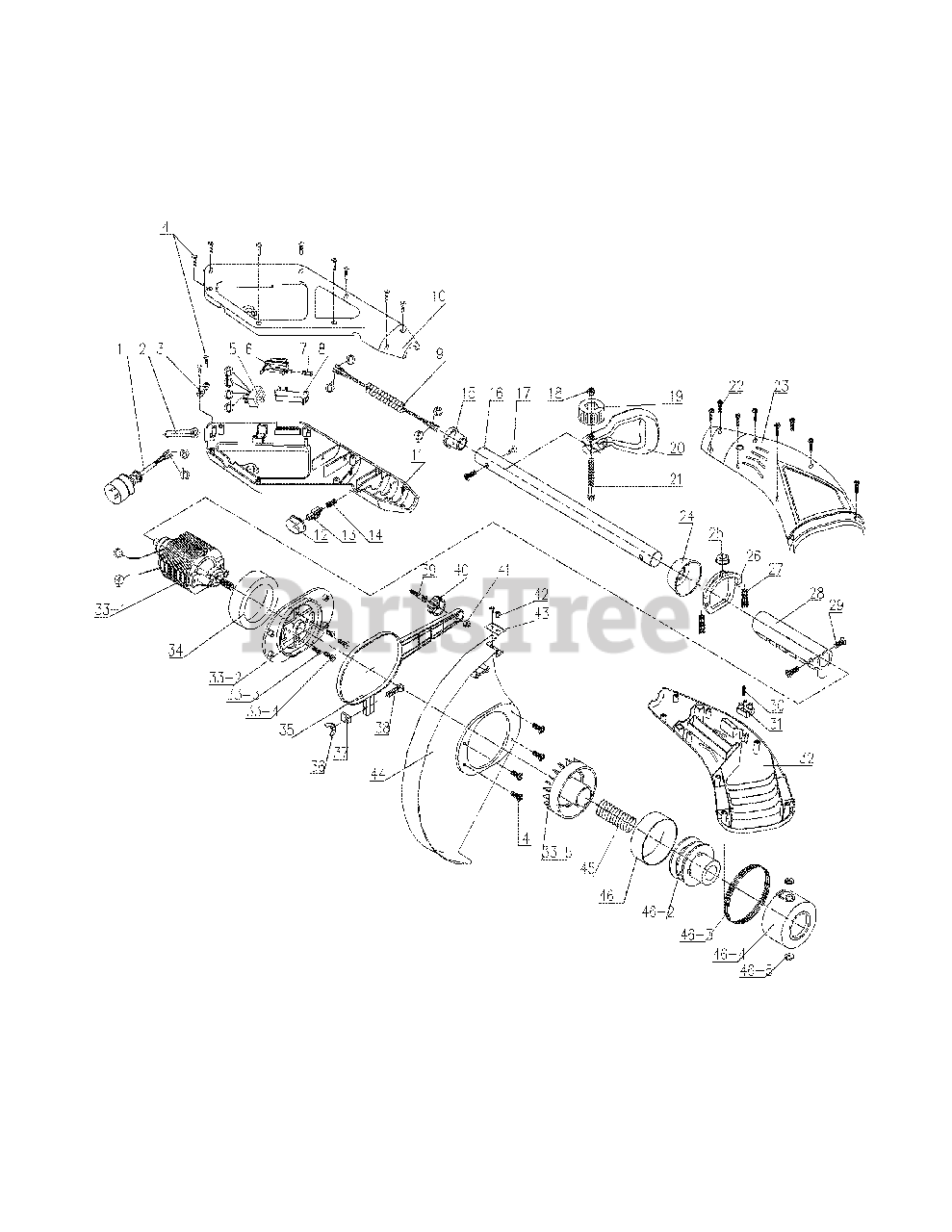

General Assembly Parts Diagram

  • Title

1

MTD MC-6011-202A02

POWER CORD

$

$

Not available

2

MTD MC-6199-202A01

CORD GUARD

$

$

Not available

3

MTD MC-6043-202A01

PLATE (PRESSING CORD)

$

$

Not available

4

Troy-Bilt MC-6SDABB04-14

SCREW

$

$

Not available

5

Troy-Bilt MC-6022-202A01

SWITCH

$

$

Not available

6

MTD MC-6134-202A01

TRIGGER

$

$

Not available

7

Troy-Bilt MC-6024-202A01

SPRING

$

$

Not available

8

MTD MC-6134-202A02

TRIGGER

$

$

Not available

9

MTD MC-6010-202A01

WIRE

$

$

Not available

10

Troy-Bilt MC-6068-202A04

UPPER HANDGRIP (R)-MTD RED

$

$

Currently unavailable

11

Troy-Bilt MC-6068-202A03

UPPER HANDGRIP (L)-MTD RED

$

$

Currently unavailable

12

MTD MC-6056-202A03

BUTTON-Black

$

$

Not available

13

MTD MC-6021-202A01

LEVER

$

$

Not available

14

Troy-Bilt MC-6024-202A02

SPRING

$5.99

$

In Stock, only 1 left!

0

15

MTD MC-6131-202A01

JOINT PIPE

$

$

Not available

16

MTD MC-6129-202A01

CENTRAL TUBE

$

$

Not available

17

MTD MC-6SDABB04-06

SCREW

$

$

Not available

18

MTD MC-6NGB-06

NUT

$

$

Not available

19

MTD MC-6056-230302

BUTTON

$

$

Not available

20

MTD MC-6196-202601

CENTRAL HANDGRIP

$

$

Not available

21

Troy-Bilt MC-6SHDB-06-52

SCREW

$

$

Not available

22

MTD MC-6SDABB04-18

SCREW

$

$

Not available

23

MTD MC-6038-202A03

HOUSING (R)-MTD RED

$

$

Not available

24

MTD MC-6059-202A01

JACKET

$

$

Not available

25

MTD MC-6056-202A04

BUTTON-Black

$

$

Not available

26

MTD MC-6239-202A01

FIXED RING

$

$

Not available

27

MTD MC-6024-202A03

SPRING

$

$

Not available

28

MTD MC-6131-202A02

EXPANDING RING

$

$

Not available

29

MTD MC-6SVABB04-10

SCREW

$

$

Not available

30

MTD MC-6SDABA03-16

SCREW

$

$

Not available

31

MTD MC-6041-840001

TERMINAL BLOCK

$

$

Not available

32

MTD MC-6038-202A04

HOUSING (L)-MTD RED

$

$

Not available

33-1

MTD MC-6099-202B01

MOTOR

$

$

Not available

33-2

Troy-Bilt MC-6187-202A01

FIX PLATE

$

$

Not available

33-3

Troy-Bilt MC-6SADB-03-12

SCREW

$

$

Currently unavailable

33-4

Troy-Bilt MC-6SADB-04-12

SCREW

$

$

Currently unavailable

33-5

MTD MC-6270-202003

WHEEL PLATE

$

$

Not available

34

MTD MC-6131-202A04

CUSHION RING

$

$

Not available

35

MTD MC-6114-202A02

CUSHION RING

$

$

Not available

36

MTD MC-6NBB-06

NUT

$

$

Not available

37

MTD MC-6043-815501

GASKET

$

$

Not available

38

MTD MC-6SXDB-06-20

SCREW

$

$

Not available

39

Troy-Bilt MC-6115-202A01

SHAFT PIN

$

$

Not available

40

MTD MC-6137-202A01

WHEEL

$

$

Not available

41

Troy-Bilt MC-6NAB-05

NUT

$

$

Not available

42

MTD MC-6RAE03-6.5

SCREW

$

$

Not available

43

MTD MC-6250-202503

WIRE CUTTING BLADE

$

$

Not available

44

MTD MC-6262-202A02

SHIELD

$

$

Not available

45

MTD MC-6024-202A04

SPRING

$

$

Not available

46-1

MTD MC-6059-202004

BLISTER PACK

$

$

Not available

46-2

MTD MC-6008-202001A

SPOOL CARRIER

$

$

Not available

46-3

MTD MC-6194-202001

WIRE-CUTTING

$

$

Not available

46-4

MTD MC-6059-202005

SPOOL COVER

$

$

Not available

46-5

Troy-Bilt MC-6RE-04-04

PILOT

$

$

Currently unavailable

46

MTD MC-6228-202004A

SPOOL CARRIER ASSEMBLY (NOT SHOWN)

$

$

Not available
