TB 4620 (41AY462S866) - Troy-Bilt Chainsaw General Assembly Parts Diagram

Chainsaw

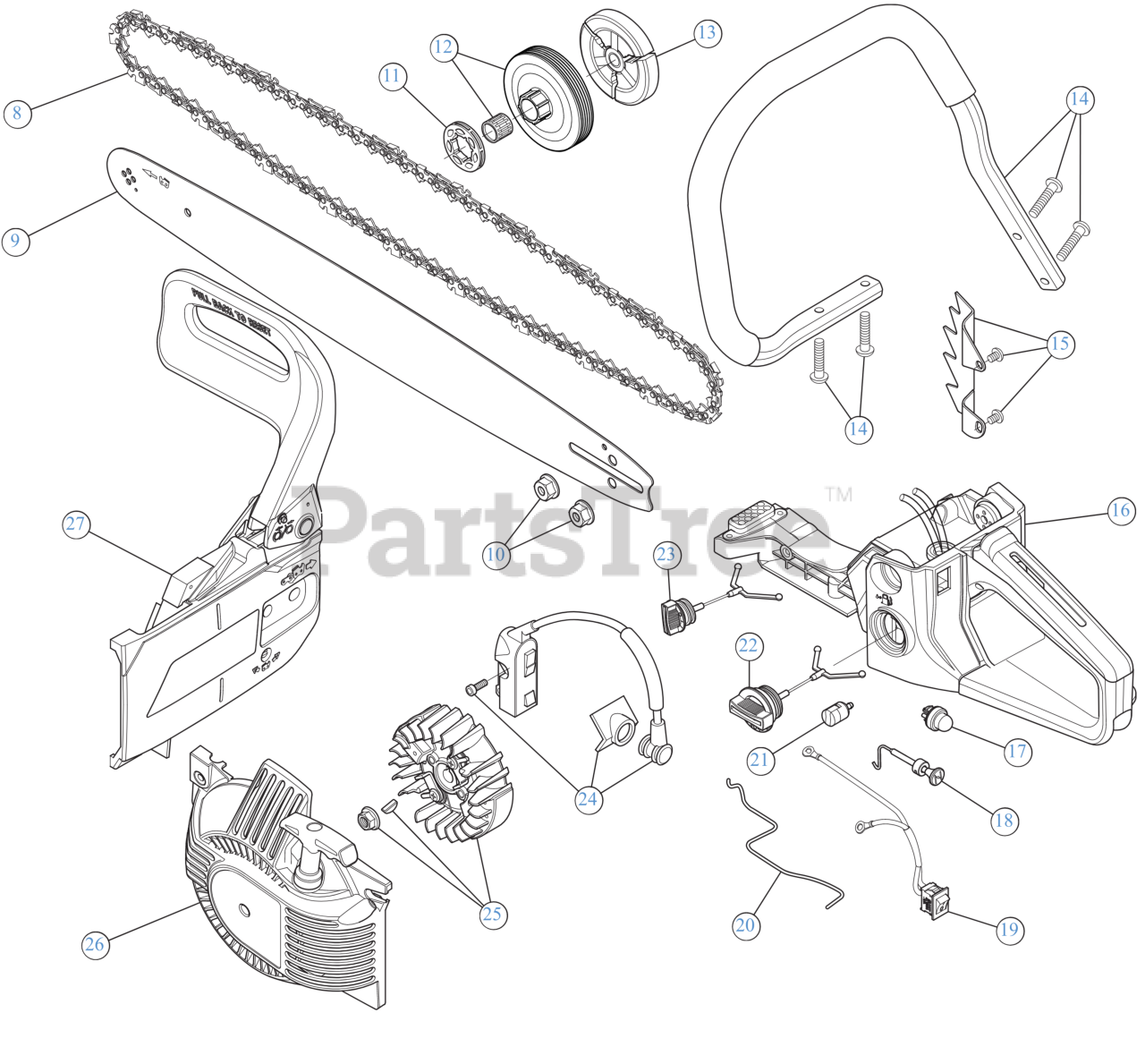

General Assembly Parts Diagram

  • Title

8

Troy-Bilt 913-05044

20" CHAINSAW CHAIN

$50.99

$

In Stock, Qty 7

0

9

Troy-Bilt 795-01026

20" GUIDE BAR

$

$

Not available

10

Troy-Bilt 953-08105

BAR NUT M8

$3.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 953-08219

SPROCKET

$7.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 953-08220

CLUTCH DRUM ASSEMBLY

$21.99

$

In Stock, Qty 12

0

13

Troy-Bilt 953-08145

CLUTCH ASSEMBLY

$16.99

$

In Stock, Qty 16

0

14

Troy-Bilt 953-08130

HANDLE ASSEMBLY

Note: (with Screws)

$19.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 953-08128

SPIKE PLATE W/HDW

Note: (with Screws)

$5.49

$

In Stock, Qty 8

0

16

Troy-Bilt 953-08142

FUEL HOUSING ASSEMBLY

$42.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 953-08127

PRIMER BULB YD2500-18410

$6.49

$

In Stock, Qty 11

0

18

Troy-Bilt 753-11111

CHOKE LEVER

$3.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 953-08223

SWITCH ASSEMBLY

$3.49

$

In Stock, Qty 18

0

20

Troy-Bilt 953-08132

THROTTLE ROD

$3.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 953-08123

FUEL FILTER YD4600-18034

$12.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 753-08133

FUEL CAP ASSEMBLY

$5.99

$

In Stock, Qty 10

0

23

Troy-Bilt 953-08222

OIL CAP ASSEMBLY

$5.99

$

In Stock, Qty 7

0

24

Troy-Bilt 753-11118

IGNITION MODULE

Note: (with Screws)

$

$

Currently unavailable

25

Troy-Bilt 953-08131

FLYWHEEL

$21.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 753-11108

STARTING HOUSING

$19.99

$

In Stock, only 4 left!

0

27

Troy-Bilt 753-11110

BRAKE

$29.99

$

Usually ships in 3-6 days

0
