TB 4620 CC (41AY60AR766) - Troy-Bilt Chainsaw General Assembly Parts Parts Diagram

Chainsaw

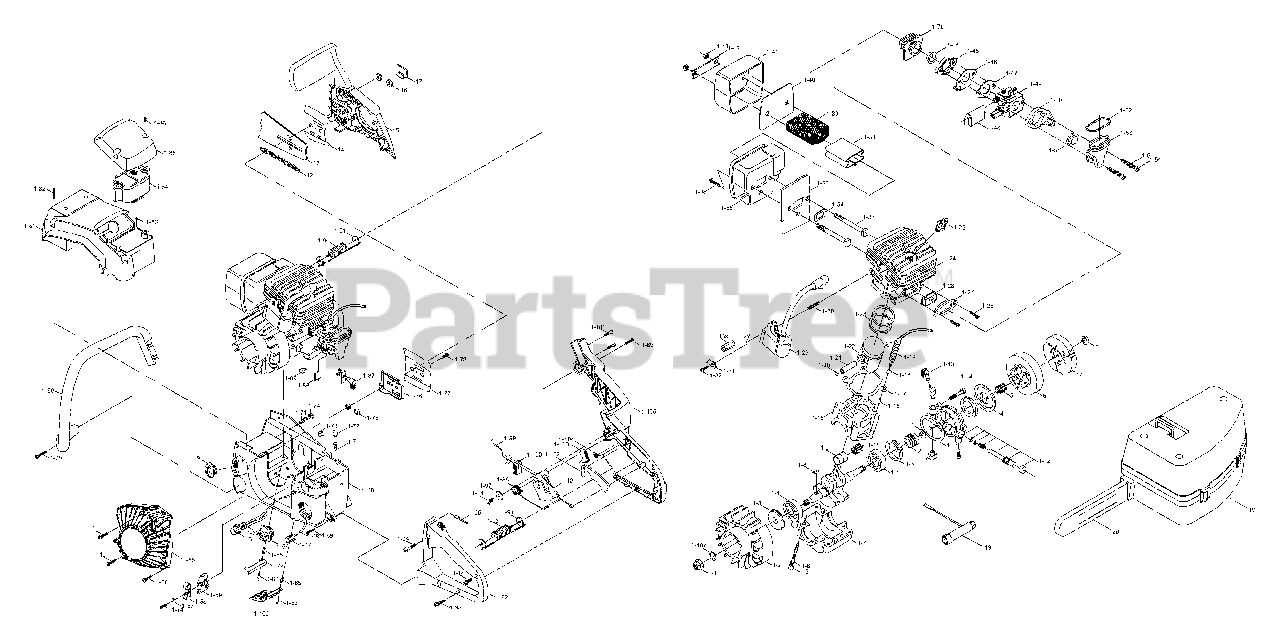

General Assembly Parts Parts Diagram

  • Title

1

Troy-Bilt MC-9238-31B201

POWERHEAD ASS'Y

$

$

Currently unavailable

1-1

Troy-Bilt MC-9NAB-5/16-24

NUT

$

$

Not available

1-2

MTD MC-9169-310201

FLYWHEEL

$

$

Not available

1-3

Troy-Bilt MC-9157-310201

SEAL

$

$

Not available

1-4

Troy-Bilt MC-9DB-620201

BEARING

$

$

Not available

1-5

MTD 710-04298

SCREW

$

$

Not available

1-6

MTD MC-9WFB-0.2

WASHER

$

$

Not available

1-7

MTD MC-9072-310201

CRANKCASE LOWER

$

$

Not available

1-8

MTD MC-9221-310001

KEY

$

$

Not available

1-9

Troy-Bilt MC-9228-310203F

C'SHAFT/C'ROD ASS'Y

$

$

Not available

1-10

Troy-Bilt MC-9155-310201

BEARING

$

$

Not available

1-11

MTD MC-9076-310201

O RING

$

$

Not available

1-12

MTD MC-9228-310208

PUMP ASS'Y

$

$

Not available

1-13

Troy-Bilt MC-9154-310201

CONNECTOR

$

$

Not available

1-14

Troy-Bilt 710-04493

SCREW

$

$

Not available

1-15

Troy-Bilt MC-9124-310201

FITTING, PULSE LINE

$

$

Not available

1-16

MTD MC-9072-310202

CRANKCASE UPPER

$

$

Not available

1-17

Troy-Bilt MC-9014-310212

GASKET

$

$

Not available

1-18

MTD MC-9036-310201

CLAMP, WIRE HOSE

$

$

Not available

1-19

Troy-Bilt MC-9059-310201

CONDUIT, FLEX

$

$

Not available

1-20

Troy-Bilt MC-9CA-0.46

RING

$

$

Not available

1-21

Troy-Bilt MC-9PC-10-32.5

PIN

$

$

Not available

1-22

Troy-Bilt MC-9290-310201

PISTON

$35.99

$

Usually ships in 3-6 days

0

1-23

Troy-Bilt MC-9189-310201

RING, PISTON

$

$

Not available

1-24

Troy-Bilt MC-9292-310201

CYLINDER

$

$

Not available

1-25

MTD MC-9295-320001

SPARK PLUG

$

$

Not available

1-26

Troy-Bilt 710-04297

SCREW
(Superseded to 710-04491)

$

$

Not available

1-27

Troy-Bilt MC-9014-310203

FLANGE

$

$

Not available

1-28

Troy-Bilt MC-9131-310202

EYELET

$

$

Not available

1-29

MTD 725-04321

IGNITION ASS'Y

$

$

Not available

1-30

MTD MC-9191-310201

STUD

$

$

Not available

1-31

Troy-Bilt MC-9051-310202

CONTACT. CROUNT

$

$

Not available

1-32

Troy-Bilt 710-04491

SCREW

$

$

Not available

1-33

Troy-Bilt 9STDZY10/24-2.79

SCREW

$

$

Currently unavailable

1-34

Troy-Bilt MC-9014-310208

WASHER

$

$

Not available

1-35

MTD MC-9082-310201

BAFFLER

$

$

Not available

1-36

MTD MC-9228-310217

MUFFLER BODY ASS'Y

$

$

Not available

1-37

Troy-Bilt MC-9SKKBY10/24-0.5

SCREW

$

$

Currently unavailable

1-38

MTD MC-9211-310201

PLATE

$

$

Not available

1-39

MTD MC-9183-310201

SCREEN

$

$

Not available

1-40

MTD MC-9082-310205

BAFFLER

$

$

Not available

1-41

MTD MC-9017-310204

COVER, MUFFLER

$

$

Not available

1-42

MTD MC-9158-310201

LOCKPLATE

$

$

Not available

1-43

Troy-Bilt MC-9NAC-10/24

NUT

$

$

Not available

1-44

MTD MC-9131-310203

EYELET

$

$

Not available

1-45

Troy-Bilt MC-9014-310204

FLANGE

$

$

Not available

1-46

Troy-Bilt MC-9102-310202

PLATE

$

$

Not available

1-47

Troy-Bilt MC-9014-310202

GASKET

$

$

Not available

1-48

Troy-Bilt MC-9124-310203

BOOT

$

$

Not available

1-49

MTD MC-9287-310201

CARB

$

$

Not available

1-50

Troy-Bilt MC-9014-310201

FLANGE

$

$

Not available

1-51

Troy-Bilt MC-9131-310204

EYELET

$

$

Not available

1-52

MTD MC-9024-310202

SPRING

$

$

Not available

1-53

Troy-Bilt MC-9124-310204

BOOT

$

$

Not available

1-54

Troy-Bilt 710-04503

SCREW

$

$

Not available

1-55

MTD MC-9228-31B201

STARTER ASS'Y

$

$

Not available

1-56

Troy-Bilt 9SKKBY10/24-0.62

SCREW

$

$

Currently unavailable

1-57

Troy-Bilt MC-9WFZ-0.18

WASHER

$

$

Not available

1-58

MTD MC-9223-310201

CLIP

$

$

Not available

1-59

Troy-Bilt MC-9183-310202

SCREEN

$

$

Not available

1-60

Troy-Bilt MC-9228-310205

FUEL/OIL TANK ASS'Y

$80.99

$

Usually ships in 3-6 days

0

1-61

MTD MC-9142-310002

PRIMER REMOTE

$21.99

$

In Stock, Qty 20+

0

1-62

MTD MC-9129-310002

HOSE

$

$

Not available

1-63

Troy-Bilt 710-04551

SCREW

$

$

Not available

1-64

MTD MC-9043-310201

PLATE

$

$

Not available

1-65

MTD MC-9124-310206

SPACE

$

$

Not available

1-66

Troy-Bilt MC-9228-310206

CAP, FUEL

$

$

Not available

1-67

Troy-Bilt MC-9182-310001

FILTER, FUEL

$

$

Not available

1-68

MTD MC-9129-310004

HOSE

$

$

Not available

1-69

Troy-Bilt 710-04501

SCREW

$

$

Not available

1-70

Troy-Bilt MC-9124-310202

BOOT, CARB

$

$

Not available

1-71

MTD MC-9070-310002

VALVE DUCKBILL

$

$

Not available

1-72

MTD MC-9129-310209

HOSE

$

$

Not available

1-73

MTD MC-9013-310201

PLUG

$

$

Not available

1-74

MTD MC-9252-310002

FILTER

$

$

Not available

1-75

MTD MC-9131-310206

WASHER

$

$

Not available

1-76

Troy-Bilt MC-9043-310203

PLATE, BAR

$

$

Not available

1-77

MTD MC-9043-310202

PLATE, FLANGE

$

$

Not available

1-78

Troy-Bilt 710-04492

SCREW

$

$

Not available

1-79

MTD 710-04496

SCREW

$

$

Not available

1-80

Troy-Bilt MC-9228-31B202

HANDLE ASS'Y
(Superseded to MC-9228-31B202P)

$

$

Not available

1-81

MTD MC-9228-310216

COVER ASS'Y

$

$

Not available

1-82

MTD 9SKKBY10/14-02

SCREW

$

$

Not available

1-83

Troy-Bilt MC-9SKKBY10/14-0.68

SCREW

$

$

Currently unavailable

1-84

MTD MC-9228-310204

AIR CLEANER ASS'Y

$

$

Not available

1-85

Troy-Bilt MC-9067-310202

COVER

$

$

Not available

1-86

MTD MC-9214-310101

SCREW

$

$

Not available

1-87

MTD MC-9228-310242

CHOKE ASS'Y

$

$

Not available

1-88

MTD MC-9114-310202

ROD, CHOKE

$

$

Not available

1-89

MTD MC-9013-310202

PLUG

$

$

Not available

1-90

Troy-Bilt MC-9228-310213

ISOLATOR ASS'Y

$

$

Not available

1-91

MTD MC-9228-310214

CABLE ASS'Y

$

$

Not available

1-92

Troy-Bilt MC-9228-310232

COVER ASS'Y, HANDLE
(Superseded to MC-9228-310232P)

$

$

Not available

1-93

Troy-Bilt 710-04494

SCREW

$

$

Not available

1-94

Troy-Bilt 710-04495

SCREW

$

$

Not available

1-95

Troy-Bilt MC-9010-310203

WIRE

$

$

Not available

1-96

MTD MC-9228-310222

ISOLATOR ASS'Y

$

$

Not available

1-97

Troy-Bilt MC-9WFB-4.9-17

WASHER

$

$

Not available

1-98

Troy-Bilt MC-9024-310206

SPRING

$

$

Not available

1-99

MTD MC-9010-310201

CABLE

$

$

Not available

1-100

Troy-Bilt MC-9124-310209

GROMMET

$

$

Not available

1-101

Troy-Bilt MC-9028-310202

TRIGGER

$

$

Not available

1-102

Troy-Bilt MC-9028-310201

RELEASE, TRIGGER

$

$

Not available

1-103

Troy-Bilt MC-9072-310203

LATCH, HIGH IDLE

$

$

Not available

1-104

MTD MC-9024-310207

SPRING

$

$

Not available

1-105

Troy-Bilt MC-9068-310203

FRAME, REAR

$

$

Not available

1-106

Troy-Bilt 710-04490

SCREW

$

$

Not available

1-107

MTD MC-9WOC-08

WASHER

$

$

Not available

1-108

MTD MC-9124-310205

SPACER

$

$

Not available

1-109

Troy-Bilt MC-9043-310205

PLATE

$

$

Not available

2

MTD MC-9073-310201

GEAR, WORM

$

$

Not available

3

Troy-Bilt MC-9WFN-0.4

WASHER

$

$

Not available

4

Troy-Bilt MC-9WDZ-0.722

WASHER

$

$

Not available

5

MTD MC-9155-310203

BEARING

$

$

Not available

6

MTD MC-9228-310211

DRUM SPRKT ASS'Y

$

$

Not available

7

MTD MC-9228-310210

CLUTCH ASS'Y

$

$

Not available

8

Troy-Bilt MC-9NHC-09

NUT

$

$

Not available

9

MTD MC-9228-310207

CAP, OIL

$

$

Not available

10

Troy-Bilt 710-04288

SCREW

$

$

Not available

11

Troy-Bilt 710-04549

SCREW

$

$

Not available

12

MTD MC-9220-31B203

CHAIN 78EB

$

$

Not available

13

MTD MC-9040-31B203

BAR (TROY-BILT LOGO)

$

$

Not available

14

MTD MC-9082-310204

PLATE

$

$

Not available

15

MTD MC-9228-310241

CHAIN BRAKE ASS'Y

$

$

Not available

16

Troy-Bilt MC-9NAZ-5/16-18

NUT

$

$

Not available

17

Troy-Bilt MC-9072-310206

PLATE

$

$

Not available

18

MTD MC-9042-310201

WRENCH

$

$

Not available

19

MTD MC-9120-MD0701

CARRY CASE

$

$

Not available

20

MTD MC-9017-310214

SCABBARD

$

$

Not available
