TB 465 SS (41ADT46C711) - Troy-Bilt String Trimmer Boom and Trimmer parts TB465SS Parts Diagram

String Trimmer

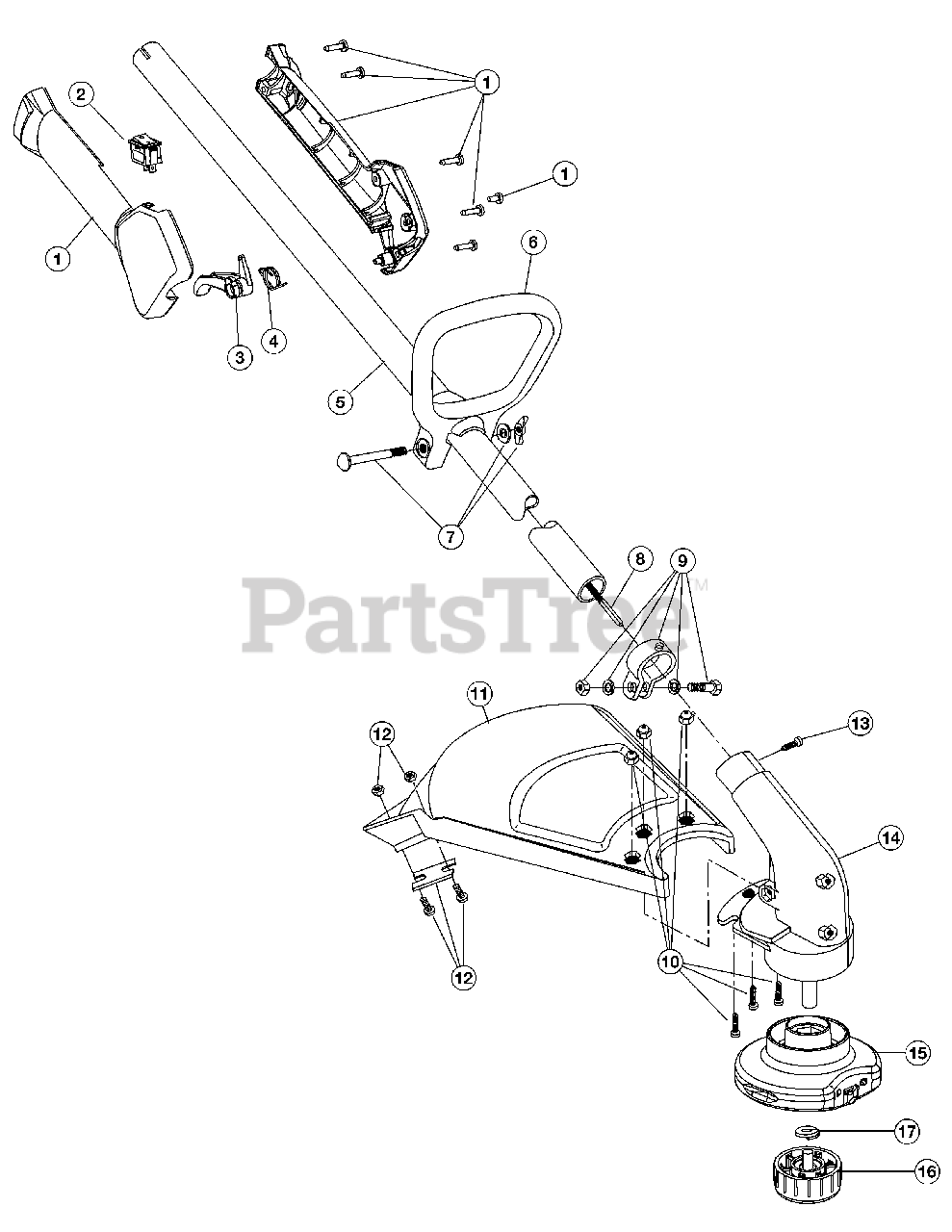

Boom and Trimmer parts TB465SS Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (includes 2-4)

$19.99

$

In Stock, Qty 18

0

2

Troy-Bilt 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 15

0

5

MTD 753-05166

Drive Shaft Housing Assembly (includes 8)

$

$

Not available

6

Troy-Bilt 791-153064

D-Handle (includes 7)

$

$

Not available

7

Troy-Bilt 791-181587

D-Handle Hardware Assembly

$18.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-05167

Flexible Drive Shaft

$

$

Not available

9

Troy-Bilt 791-153597

Lower Clamp Assembly (includes 13)

$15.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-180547

Guard Mounting Screw Assembly

$

$

Not available

11

MTD 791-180548

Guard Assembly (includes 12)

$

$

Not available

12

Troy-Bilt 791-180553

Blade Assembly

$14.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

14

Troy-Bilt 753-05168

Gearbox Assembly

$

$

Not available

15

Troy-Bilt 753-05165

Fixed HD Line Assembly
(Superseded to 753-08193)

$11.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 791-182413

Lock Washer
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Troy-Bilt 753-05164

Replacement Line
(Superseded to 796-00027)

Note: (Optional Accessories) (not shown)

$28.99

$

Usually ships in 3-6 days

0
