TB 465 SS (41ADT46C966) - Troy-Bilt Pony String Trimmer Boom & Trimmer Assembly TB465SS Parts Diagram

Pony String Trimmer

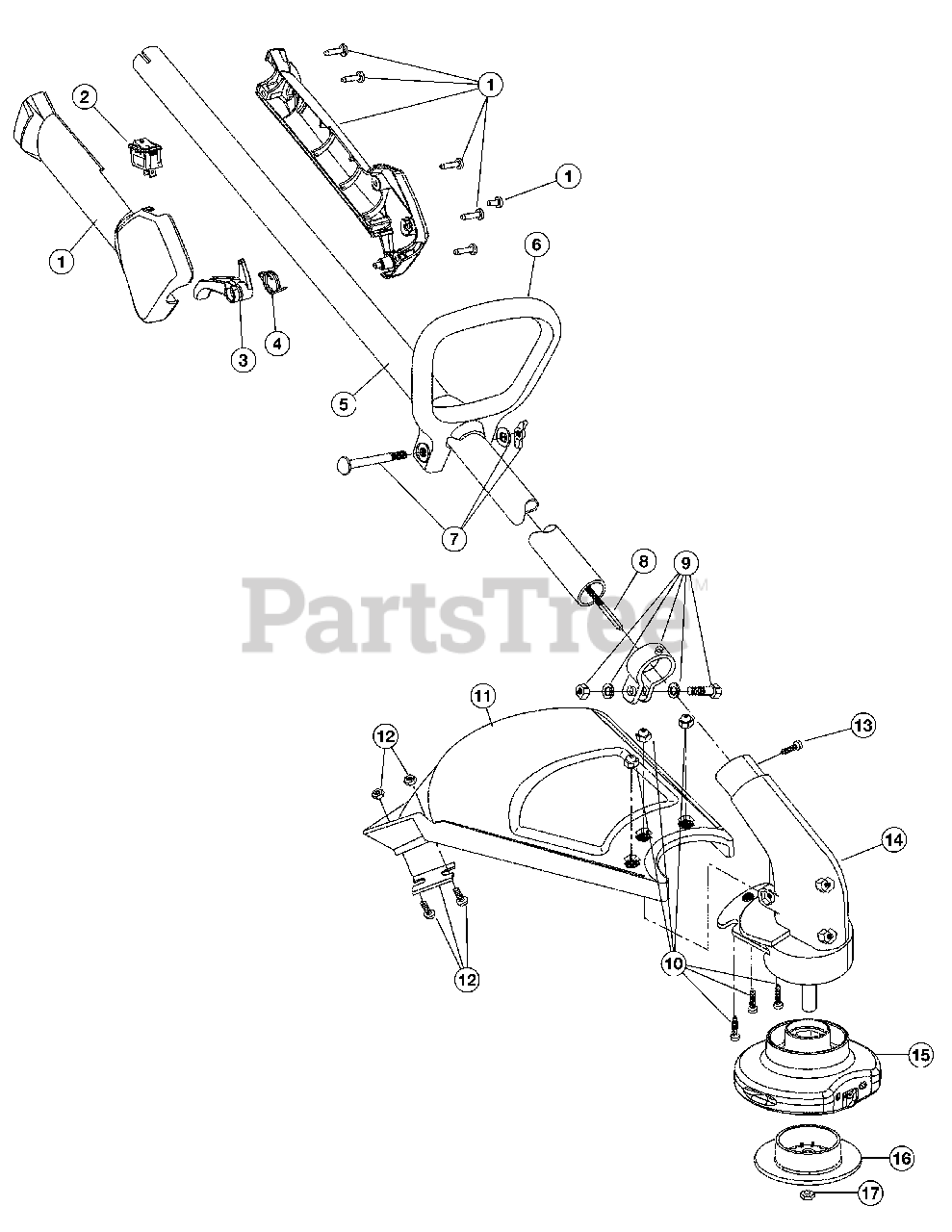

Boom & Trimmer Assembly TB465SS Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (includes 2-4)

$21.99

$

In Stock, Qty 18

0

2

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, Qty 14

0

5

MTD 753-05166

Drive Shaft Housing Assembly (includes 8)

$

$

Not available

6

Troy-Bilt 791-153064

D-Handle (includes 7)

$

$

Not available

7

Troy-Bilt 791-181587

D-Handle Hardware Assembly

$19.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-05167

Flexible Drive Shaft

$

$

Not available

9

Troy-Bilt 791-153597

Lower Clamp Assembly (includes 13)

$15.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-180547

Guard Mounting Screw Assembly

$

$

Not available

11

MTD 791-180548

Guard Assembly (includes 12)

$

$

Not available

12

Troy-Bilt 791-180553

Blade Assembly

$14.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 10

0

14

Troy-Bilt 753-05168

Gearbox Assembly

$

$

Not available

15

Troy-Bilt 753-05430

Fixed HD Line Assembly (includes 16 & 17)

$

$

Not available

16

Troy-Bilt 753-05428

Glide Cap
(Superseded to 731-05714)

$17.99

$

In Stock, Qty 10

0

17

Troy-Bilt 753-05429

Locknut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

Troy-Bilt 753-05164

Replacement Line
(Superseded to 796-00027)

Note: Optional Accessories, Not Shown

$30.99

$

Usually ships in 3-6 days

0
