TB 475 SS (41ADT47C966) - Troy-Bilt String Trimmer Boom & Trimmer Straight Shaft Parts Diagram

String Trimmer

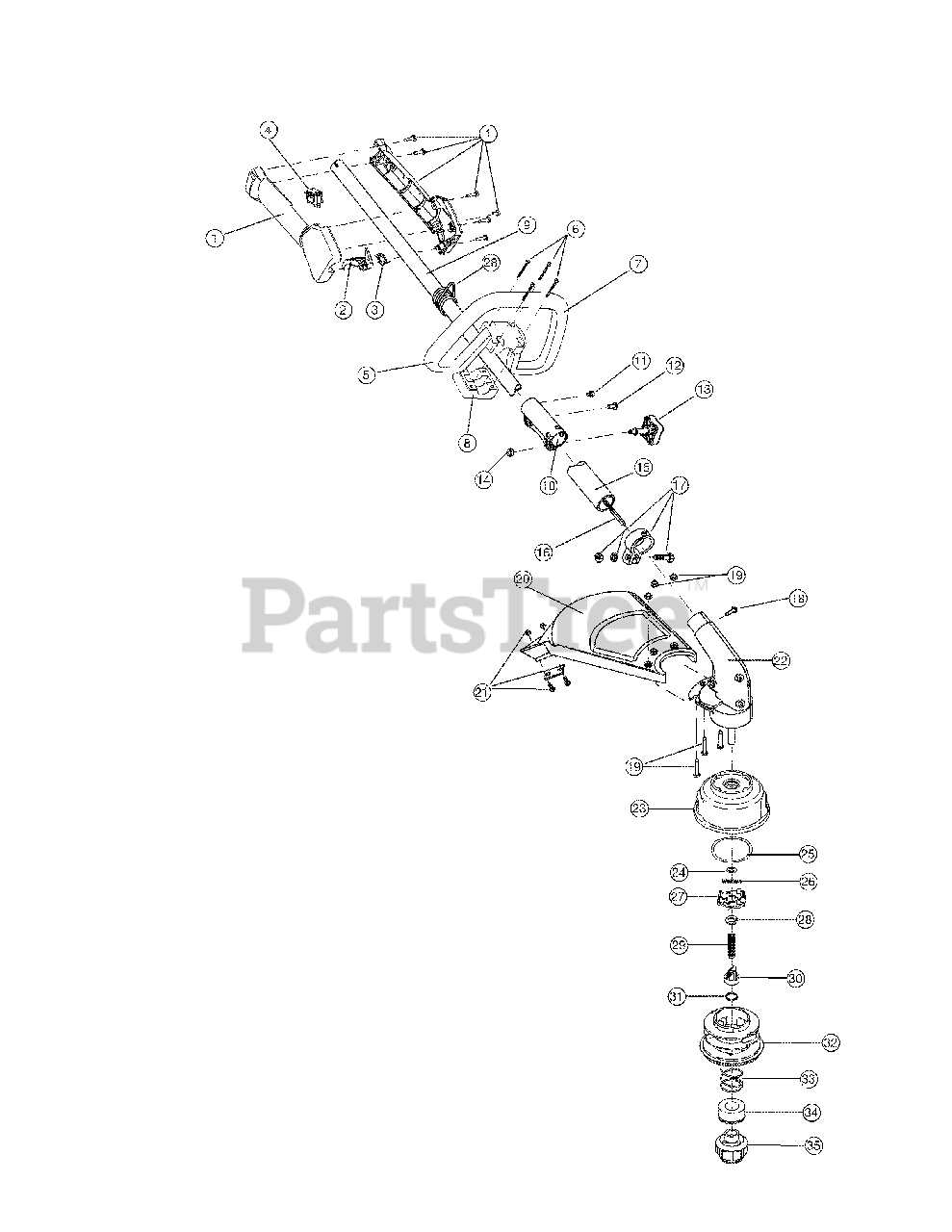

Boom & Trimmer Straight Shaft Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (includes 2 & 3)

$19.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

4

Troy-Bilt 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

5

MTD 791-180869

Deluxe D-Handle Assembly ( includes 6-8)

$

$

Not available

6

Troy-Bilt 791-181070

Handle Mount Hardware

$4.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

8

MTD 791-182168

Bottom Clamp

$

$

Not available

9

Troy-Bilt 753-04503

Upper Drive Shaft Housing Assembly

$

$

Not available

10

Troy-Bilt 753-1190

Split Boom Coupler (includes 11-14)

$21.99

$

In Stock, Qty 6

0

11

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

13

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

15

MTD 791-182388

Lower Drive Shaft Housing Assembly

$

$

Not available

16

Troy-Bilt 791-181166

Lower Flexible Drive Shaft

$28.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 791-153597

Lower Clamp Assembly (includes 18)

$15.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

19

Troy-Bilt 791-180547

Shield Mounting Hardware

$

$

Not available

20

Troy-Bilt 753-1213

Shield and Blade Assembly (includes 21)
(Superseded to 1A6902)

$

$

Not available

21

Troy-Bilt 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

22

MTD 791-181566

Gearbox Assembly

$

$

Not available

23

Troy-Bilt 791-181457

Outer Spool Assembly (includes 24)

$37.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 791-181458

Retaining Ring

$4.49

$

In Stock, only 2 left!

0

25

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

26

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 753-04257

Slider

$6.99

$

In Stock, Qty 10

0

28

Troy-Bilt 791-181532

E-Clip

$4.49

$

In Stock, Qty 16

0

29

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

30

Troy-Bilt 791-181462

Plunger

$

$

Not available

31

Troy-Bilt 791-181463

C-Clip

$3.99

$

In Stock, Qty 6

0

32

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$30.99

$

In Stock, Qty 7

0

33

Troy-Bilt 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

35

Troy-Bilt 791-181468

Bump Head Knob Assembly (includes 33 & 34)
(Superseded to 791-181468B)

$15.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-180120

Replacement Line, 0.095 Diameter (NOT SHOWN)
(Superseded to 953-1156)

$31.99

$

In Stock, Qty 8

0

Troy-Bilt 753-04218

Reel and Line Assembly (NOT SHOWN)

$

$

Not available

Troy-Bilt 791-682075

Shoulder Strap Assembly (NOT SHOWN)
(Superseded to 791-682075B)

$36.99

$

Usually ships in 3-6 days

0
