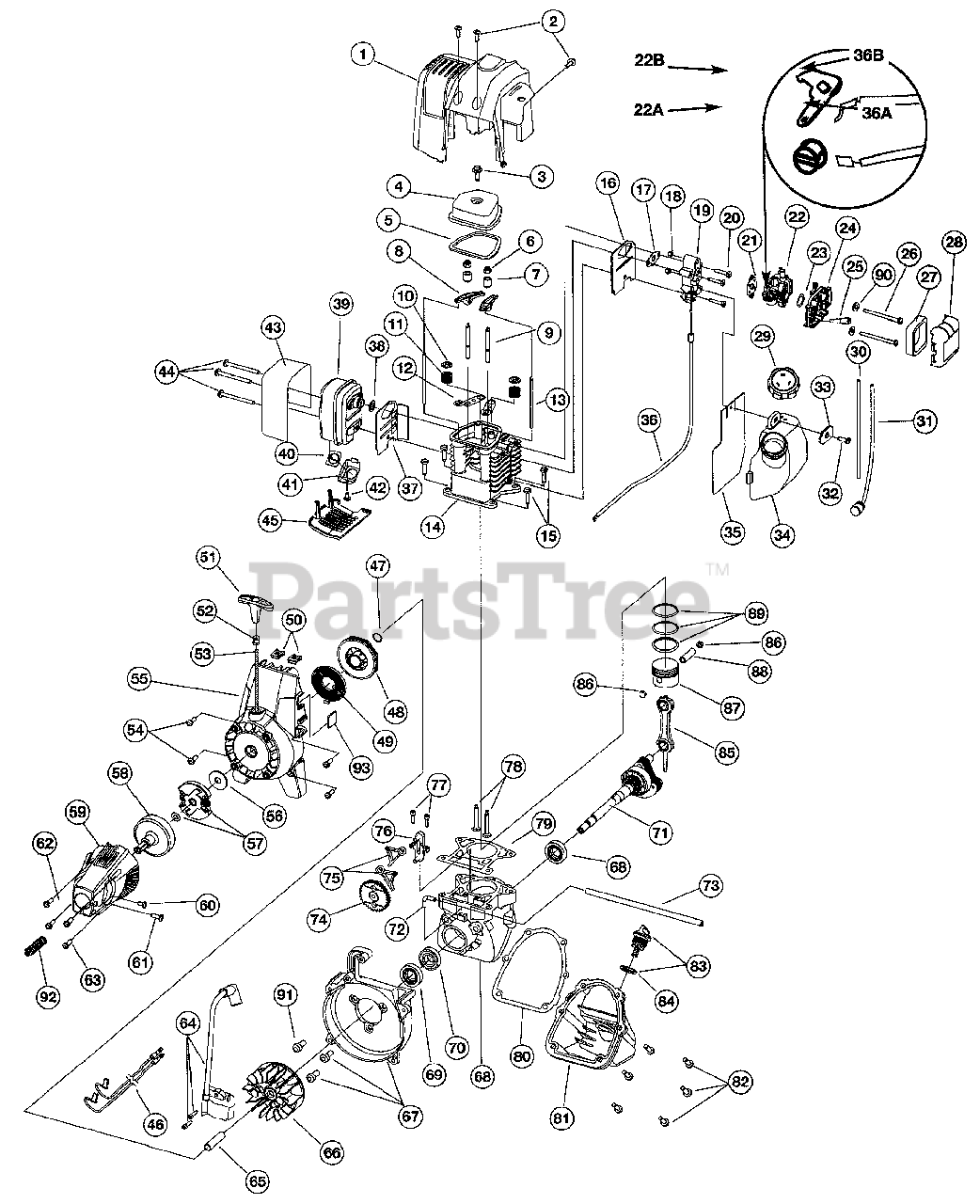

TB 490 BC (41ADT49C063) - Troy-Bilt Brush Cutter Engine Parts Parts Diagram

Brush Cutter

Engine Parts Parts Diagram

  • Title

1

MTD 791-182338

Engine Cover

$

$

Not available

2

Troy-Bilt 791-182339

Engine Cover Screws
(Superseded to 753-04994)

$7.49

$

In Stock, only 1 left!

0

3

Troy-Bilt 791-181025

Valve Cover Screw

$2.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 791-182098

Valve Cover

$10.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 791-182099

Valve Cover Gasket

$10.99

$

Usually ships in 3-6 days

0

6

MTD 791-182340

Rocker Adjustment Nut

$

$

Not available

7

Troy-Bilt 791-182101

Rocker Arm Pivot

$6.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 791-182100

Rocker Arm

$

$

Not available

9

Troy-Bilt 791-182341

Rocker Arm Stud

$

$

Not available

10

Troy-Bilt 791-182103

Valve Spring Retainer

$

$

Not available

11

MTD 791-181038

Valve Spring

$

$

Not available

12

Troy-Bilt 791-182102

Push Rod Guide

$

$

Not available

13

MTD 791-181033

Push Rod

$

$

Not available

14

MTD 791-182700

Cylinder Head
(Superseded to 753-04816)

Note: (includes 9 & 12)

$

$

Not available

15

Troy-Bilt 791-182344

Cylinder Screw
(Superseded to 791-181003)

$

$

Not available

16

Troy-Bilt 791-182345

Intake Baffle

$4.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 791-182749

Carburetor Mount Gasket

$9.99

$

In Stock, only 3 left!

0

18

MTD 791-181034

Nut
(Superseded to 9072)

$

$

Not available

19

Troy-Bilt 791-182347

Carburetor Mount

Note: (includes 18)

$20.99

$

Usually ships in 3-6 days

0

20

MTD 791-182348

Carburetor Mount Screw

$

$

Not available

21

MTD 791-182732

Carburetor Gasket

$

$

Not available

22A

Troy-Bilt 791-182654

Carburetor with Primer

$99.99

$

In Stock, only 1 left!

0

22B

Troy-Bilt 753-1225

Carburetor with Primer

$76.99

$

In Stock, Qty 10

0

23

Troy-Bilt 791-181751

O-Ring, Carburetor

$4.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 753-1227

Air Filter/Choke Cover Assembly
(Superseded to 753-04223)

Note: (includes 27 & 28)

$32.99

$

In Stock, only 4 left!

0

25

Troy-Bilt 791-182097

Breather Tube

$11.99

$

In Stock, Qty 5

0

26

Troy-Bilt 791-181750

Air Filter Mounting Screw

$6.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 791-181757

Air Filter

$4.49

$

In Stock, Qty 14

0

28

Troy-Bilt 753-1228

Air Filter Cover
(Superseded to 753-04223)

$32.99

$

In Stock, only 4 left!

0

29

Troy-Bilt 753-1229

Fuel Cap

$24.99

$

In Stock, Qty 8

0

30

Troy-Bilt 791-182352

Fuel Return Line

$8.49

$

In Stock, Qty 9

0

31

Troy-Bilt 791-182353

Fuel Pick-Up Line with Filter

$10.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 791-181080

Screw

$6.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 791-182354

Washer

$

$

Not available

34

MTD 753-1230

Fuel Tank Assembly

Note: (includes 29-31)

$

$

Not available

35

MTD 791-182356

Fuel Tank Shield

$

$

Not available

36A

Troy-Bilt 753-1234

Throttle Cable

$

$

Not available

36B

Troy-Bilt 753-1231

Throttle Cable

$18.99

$

In Stock, only 2 left!

0

37

MTD 791-182358

Muffler Baffle

$

$

Not available

38

Troy-Bilt 791-181048

Muffler Gasket
(Superseded to 9094-1)

$4.99

$

In Stock, only 2 left!

0

39

MTD 791-182359

Muffler

Note: (includes 40, 42-44)

$

$

Not available

40

MTD 791-180890

Spark Arrestor Screen

$

$

Not available

41

Troy-Bilt 791-181045

Screen Cover

$

$

Not available

42

Troy-Bilt 791-181046

Screw

$

$

Not available

43

MTD 791-182360

Muffler Shield

$

$

Not available

44

MTD 791-182361

Muffler Mounting Screw

$

$

Not available

45

MTD 791-182362

Muffler Cover

$

$

Not available

46

MTD 791-182804

Switch Wire Assembly

$

$

Not available

47

Troy-Bilt 791-181247

Palnut
(Superseded to 753-04288)

$10.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 753-1199

Recoil Pulley

$24.99

$

In Stock, only 4 left!

0

49

Troy-Bilt 791-613102

Recoil Spring

$27.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 791-182366

Nut Clip

$5.99

$

In Stock, only 2 left!

0

51

Troy-Bilt 791-181079

Pull Handle
(Superseded to 631-04164B)

$4.49

$

In Stock, Qty 7

0

52

Troy-Bilt 791-611061

Rope Guide

$11.99

$

In Stock, only 2 left!

0

53

Troy-Bilt 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

54

Troy-Bilt 791-181020

Starter Housing Screw
(Superseded to 9054)

$4.99

$

In Stock, only 3 left!

0

55

Troy-Bilt 753-1237

Starter Housing Assembly
(Superseded to 753-04910)

Note: (includes 49-56)

$54.99

$

In Stock, only 4 left!

0

56

Troy-Bilt 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.99

$

In Stock, only 2 left!

0

57

Troy-Bilt 753-1238

Clutch with Spacer

$47.99

$

In Stock, Qty 12

0

58

Troy-Bilt 791-153592

Clutch Drum

$55.99

$

In Stock, Qty 8

0

59

MTD 753-1239

Clutch Cover

$

$

Not available

60

Troy-Bilt 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

61

MTD 753-1240

Screw

$

$

Not available

62

MTD 753-1241

Nut

$

$

Not available

63

Troy-Bilt 791-181345

Clutch Cover Screw

$4.49

$

In Stock, only 2 left!

0

64

MTD 791-182725

Ignition Module with Screws

$

$

Not available

65

MTD 791-181065

Spacer

$

$

Not available

66

Troy-Bilt 791-181867

Flywheel
(Superseded to 753-05240)

$81.99

$

In Stock, only 2 left!

0

67

MTD 791-182743

Shroud Assembly with Screws

$

$

Not available

68

Troy-Bilt 753-1244

Crankcase Assembly
(Superseded to 791-182376)

Note: (includes 69-73)

$

$

Not available

69

Troy-Bilt 791-610309

Oil Seal

$

$

Not available

70

Troy-Bilt 791-182372

Bearing

$

$

Not available

71

Troy-Bilt 791-182380

Crankshaft

$

$

Not available

72

Troy-Bilt 791-182375

90° Elbow

$

$

Not available

73

Troy-Bilt 791-182379

Breather Hose

$4.99

$

In Stock, Qty 8

0

74

Troy-Bilt 791-181015

Cam Gear

$

$

Not available

75

MTD 753-1242

Cam Follower Set

$

$

Not available

76

Troy-Bilt 791-181013

Cam Bracket

$

$

Not available

77

MTD 791-181012

Cam Bracket Screw

$

$

Not available

78

Troy-Bilt 791-181040

Valves, Intake and Exhaust

$

$

Not available

79

Troy-Bilt 791-182374

Cylinder Gasket

$

$

Not available

80

Troy-Bilt 791-181018

Oil Pan Gasket

$

$

Not available

81

MTD 791-182377

Oil Pan

Note: (includes 80 & 82)

$

$

Not available

82

Troy-Bilt 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.99

$

In Stock, only 3 left!

0

83

Troy-Bilt 791-182378

Dipstick Assembly

Note: (includes 84)

$11.99

$

In Stock, only 2 left!

0

84

Troy-Bilt 791-182290

O-Ring

$5.49

$

In Stock, Qty 5

0

85

Troy-Bilt 791-181009

Connecting Rod

$

$

Not available

86

Troy-Bilt 791-181008

Wrist Pin Button

$

$

Not available

87

MTD 753-1243

Piston

$

$

Not available

88

Troy-Bilt 791-181006

Wrist Pin

$5.99

$

In Stock, only 1 left!

0

89

Troy-Bilt 791-182295

Piston Ring Set
(Superseded to 753-04801)

$

$

Not available

90

Troy-Bilt 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

91

Troy-Bilt 791-181861

Screw

$4.49

$

Usually ships in 3-6 days

0

92

Troy-Bilt 791-612468

Compression Spring

$

$

Not available

93

Troy-Bilt 791-182537

Grommet

$7.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-180852B

Spark Plug
(Superseded to 794-00082)

Note: Parts not shown

$7.99

$

In Stock, Qty 20+

0

MTD 753-1245

Short Block Assembly

Note: (includes 3-7, 68-89); Parts not shown

$

$

Not available

MTD 791-182745

Cylinder Assembly
(Superseded to 753-04816)

Note: (includes 9, 12, 14 & 79); Parts not shown

$

$

Not available

Troy-Bilt 791-180142

Starter Pawl Repair Kit
(Superseded to 753-05240)

Note: Parts not shown

$81.99

$

In Stock, only 2 left!

0

Troy-Bilt 791-182156

Carburetor Repair Kit
(Superseded to 753-04014)

Note: Parts not shown

$40.99

$

In Stock, Qty 5

0

Troy-Bilt 753-1248

Gasket Diaphragm Repair Kit

Note: Parts not shown

$48.99

$

Usually ships in 3-6 days

0
