TB 490 BC (41BDT49C966) - Troy-Bilt Brush Cutter Boom Parts Diagram

Brush Cutter

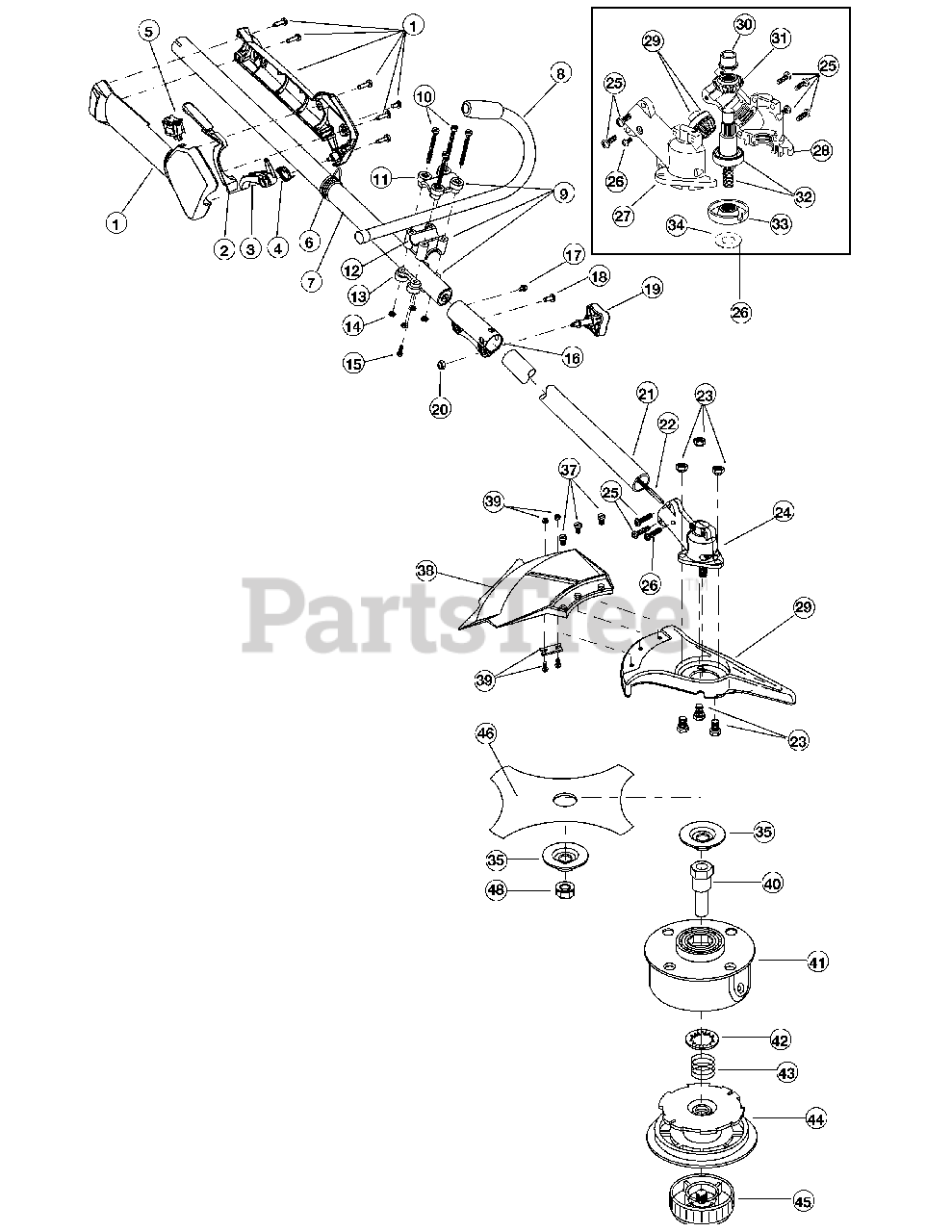

Boom Parts Diagram

  • Title

1

MTD 791-00040

Throttle Housing Assembly (includes 2-4)
(Superseded to 753-05321)

$

$

Not available

2

MTD 791-00041

Throttle Trigger Lock-Out

$

$

Not available

3

Troy-Bilt 791-00042

Throttle Trigger
(Superseded to 753-06754)

$6.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

5

Troy-Bilt 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-04503

Upper Drive Shaft Housing Assembly

$

$

Not available

8

MTD 791-181099

J-Handle Assembly

$

$

Not available

9

Troy-Bilt 791-683295

Handle Bracket Assembly (includes 10-15)

$42.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

16

Troy-Bilt 753-1190

Split Boom Coupler (includes 17-20)

$21.99

$

In Stock, Qty 6

0

17

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

19

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

20

Troy-Bilt 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

21

Troy-Bilt 791-182541

Lower Drive Shaft Housing Assembly

$86.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 791-613300

Lower Flexible Drive Shaft

$82.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 791-182200

Shield Mount Screw Assembly

$6.49

$

In Stock, only 2 left!

0

24

Troy-Bilt 791-182193

2 piece Gearbox Assembly (includes 25-35)

$92.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$6.99

$

In Stock, Qty 15

0

26

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

27

MTD 791-182192

Right Housing

$

$

Not available

28

MTD 791-182191

Left Housing

$

$

Not available

29

Troy-Bilt 791-182194

Pinion Gear Assembly

$29.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 791-182199

Output Shaft Bushing

$

$

Not available

31

Troy-Bilt 791-182198

Output Shaft Gear

$

$

Not available

32

Troy-Bilt 791-182197

Output Shaft Assembly (includes 30 & 31)

$

$

Not available

33

Troy-Bilt 791-182196

Blade Driver

$20.99

$

In Stock, only 3 left!

0

34

Troy-Bilt 753-04348

Palnut

$6.49

$

In Stock, only 1 left!

0

35

Troy-Bilt 791-147490

Retaining Washer

$10.99

$

In Stock, Qty 7

0

36

Troy-Bilt 791-147492

Blade Shield/Shield Mount

$118.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 791-683304

Shield Mounting Screw

$10.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 753-1191

Shield Assembly (includes 39)

$60.99

$

In Stock, only 2 left!

0

39

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

40

Troy-Bilt 791-612483

Spool Shaft

$51.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 791-683301

Outer Spool Assembly (includes 42)

$45.99

$

In Stock, Qty 9

0

42

Troy-Bilt 791-612026

Retainer
(Superseded to 1772)

$6.49

$

In Stock, Qty 17

0

43

Troy-Bilt 791-610636B

Spring

$9.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 791-147495

Inner Reel

$24.99

$

In Stock, Qty 14

0

45

Troy-Bilt 791-180814B

Bump Head Knob Assembly

$19.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 791-145873B

4-Tooth Blade

$42.99

$

In Stock, Qty 9

0

48

Troy-Bilt 791-181699

Nut
(Superseded to 712-04105)

$9.99

$

In Stock, only 3 left!

0

Troy-Bilt 791-180014B

Blade Retaining Kit (includes 34 & 43) (not shown)

$12.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-613226

Locking Rod Tool (not shown)

$13.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-682075B

Shoulder Harness (not shown)

$36.99

$

Usually ships in 3-6 days

0
