TB 510 (18AEB9C7711) - Troy-Bilt Walk-Behind Mower, Electric (2016) Handle Parts Diagram

Walk-Behind Mower, Electric

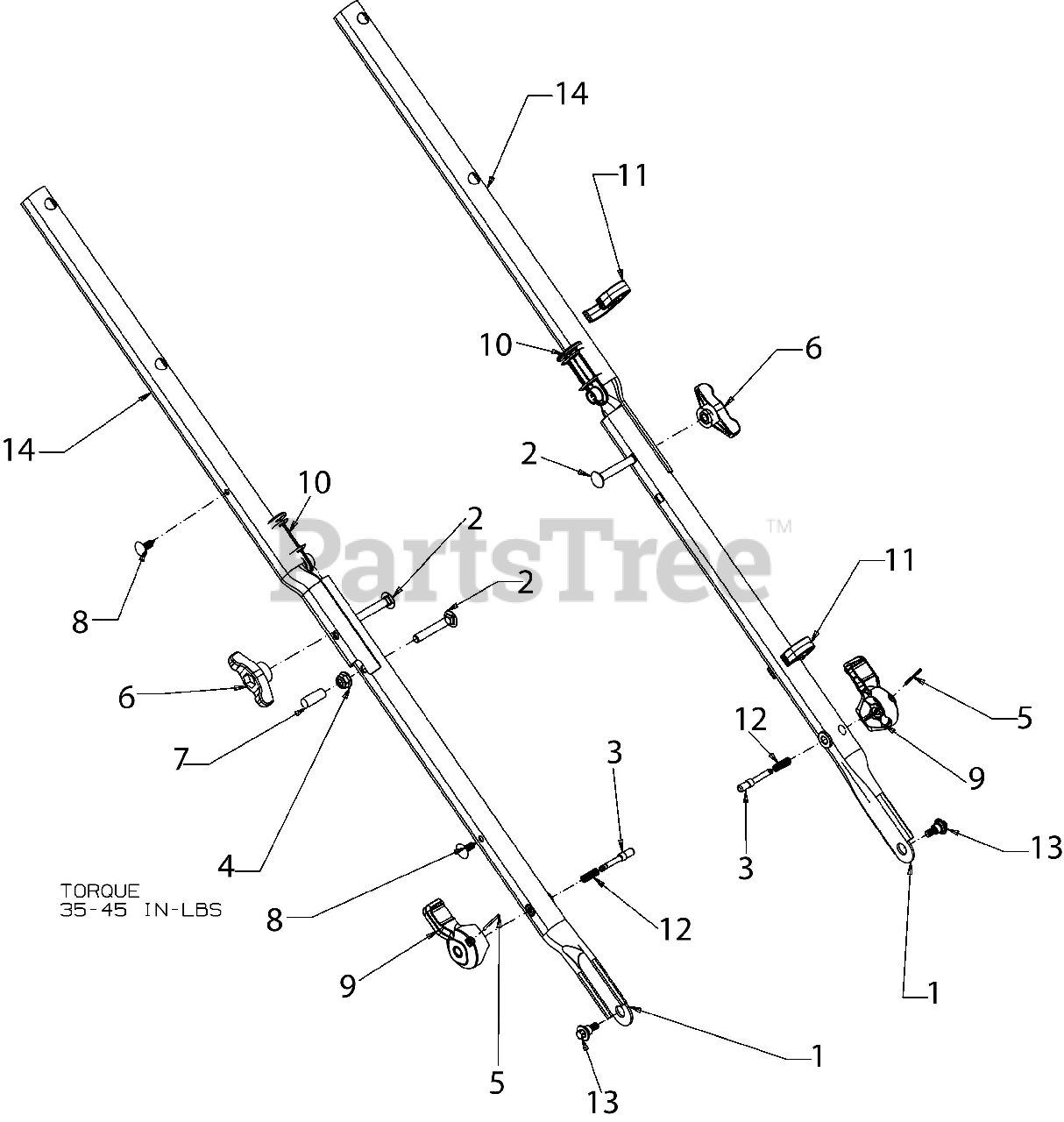

Handle Parts Diagram

  • Title

1

Troy-Bilt 649-05102

LOWER HANDLE ASSEMBLY
(Superseded to 949-05102)

$39.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0487

BOLT 5/16-18 x 2.00 GR5

$7.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 711-06563

HANDLE ADJUSTMENT PIN

$7.99

$

In Stock, Qty 19

0

4

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

MTD 715-05060

SPLIT ROLL PIN 5/64 X 1.38

$4.99

$

In Stock, Qty 18

0

6

Troy-Bilt 720-04124

WING KNOB 5/16-18

$4.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 720-05075

VINYL CAP

$4.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 726-3046

RATCHET CLIP .250

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 731-11632A

HANDLE LEVER KNOB

$5.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731-11717

HANDLE END PLUG

$

$

Not available

11

Troy-Bilt 731-11996A

CABLE CLIP

$3.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 732-05422

COMPRESSION SPRING

$3.49

$

In Stock, Qty 15

0

13

Troy-Bilt 738-05174

SHOULDER SCREW .500 X.118X1/4-20
(Superseded to 738-05174A)

$5.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 749-05533A

UPPER HANDLE

$34.99

$

Usually ships in 3-6 days

0
