TB 515 EC (25C-515-966) - Troy-Bilt Edger (2010) Engine Assembly Parts Diagram

Edger

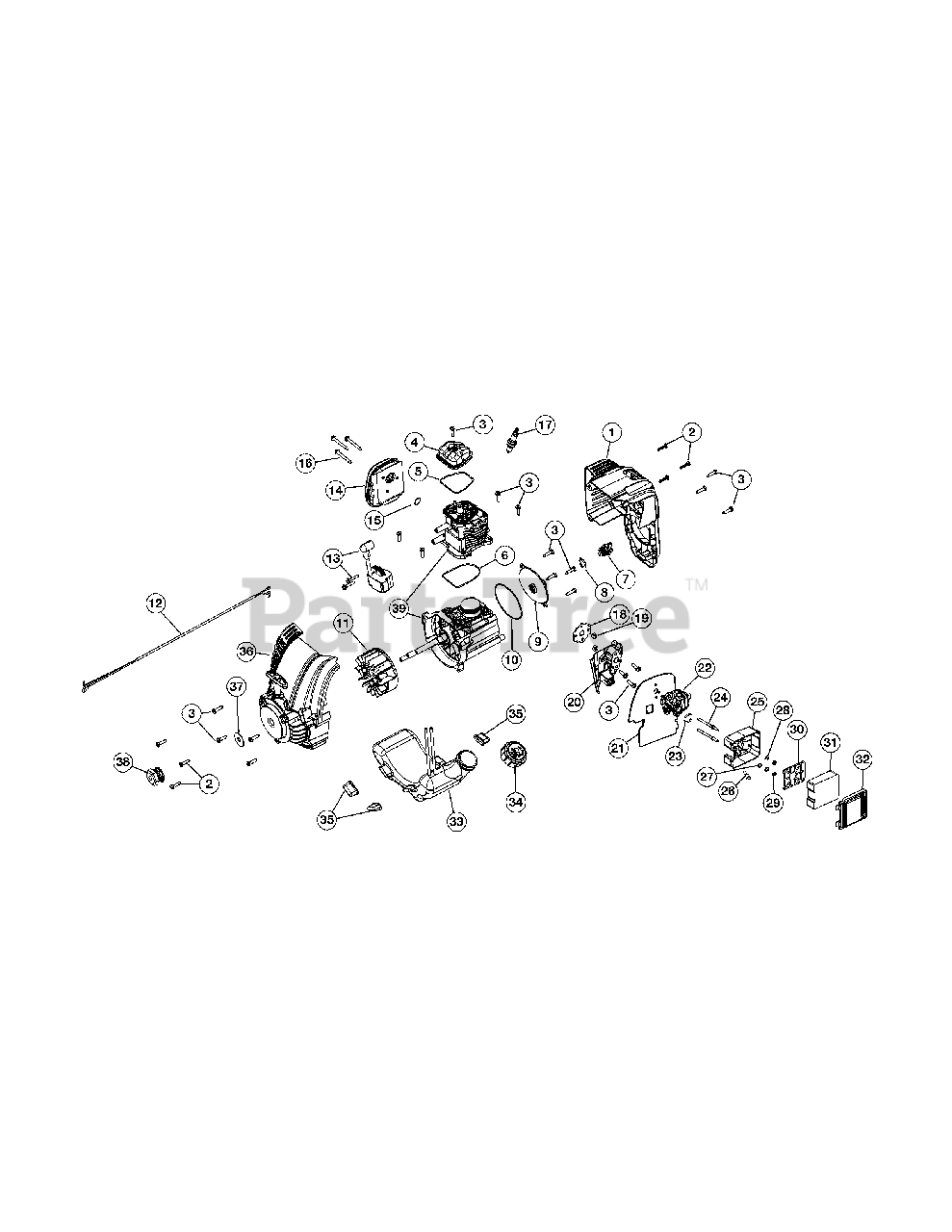

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06134

Engine Cover Assembly (includes 2 & 3)

$10.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04194

Cover Screw

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04604

Housing Screw

$3.99

$

In Stock, Qty 12

0

4

Troy-Bilt 753-05209

Rocker Cover

$18.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 721-04132

Rocker Cover O-Ring

$9.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-05232

Cylinder O-Ring

$9.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-05408

Oil Plug (includes 8)

$27.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 791-182290

Oil Plug O-Ring

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-06111

Crankcase Cover
(Superseded to 841-020721S)

$12.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 753-05238

Crankcase Cover O-ring

$9.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-05240

Flywheel Assembly

$71.99

$

In Stock, only 3 left!

0

12

Troy-Bilt 753-05785

Lead Wires

$10.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-05447

Module Assembly

$96.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 753-05245

Muffler Assembly (includes 15 & 16)

$86.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-05244

Muffler Gasket

$5.49

$

In Stock, Qty 11

0

16

Troy-Bilt 710-04487

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 753-05255

Spark Plug
(Superseded to 794-00082)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-05247

Insulator Gasket

$7.99

$

In Stock, Qty 7

0

19

Troy-Bilt 712-04099

Nut

$6.49

$

In Stock, only 1 left!

0

20

Troy-Bilt 753-05249

Insulator (includes 21)

$17.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 753-05366

Carburetor Gasket

$18.99

$

In Stock, Qty 14

0

22

Troy-Bilt 753-05440

Carburetor Assembly

$66.99

$

In Stock, Qty 7

0

23

Troy-Bilt 753-04030

Carburetor O-Ring

$9.99

$

In Stock, Qty 5

0

24

Troy-Bilt 710-04645

Air Filter Mounting Screw
(Superseded to 710-04517)

$4.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 753-06284

Air Cleaner Box Assembly
(Superseded to 753-05835)

Note: (includes 26, 27 & 30-32)

$

$

Not available

26

Troy-Bilt 791-182097

Breather Tube

$10.99

$

In Stock, only 1 left!

0

27

MTD 791-181000

Grommet Washer

$

$

Not available

28

Troy-Bilt 791-182409

Washer

$4.49

$

In Stock, Qty 5

0

29

Troy-Bilt 712-04099

Nut

$6.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 791-182657

Air Filter Plate

$

$

Not available

31

Troy-Bilt 753-05506

Air Filter

$4.49

$

In Stock, Qty 17

0

32

Troy-Bilt 791-182659

Air Filter Cover

$14.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 753-06240

Fuel Tank Assembly (includes 34)

$27.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 753-1229

Fuel Cap

$21.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 753-05259

Fuel Tank Pads

$6.49

$

In Stock, only 2 left!

0

36

Troy-Bilt 753-05510

Starter Housing Assembly (includes 3)

$

$

Not available

37

Troy-Bilt 9162-1

Washer

$4.49

$

In Stock, Qty 8

0

38

Troy-Bilt 756-04269

Drive Shaft Pulley

$13.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 753-06290

Shortblock Asembly (includes 3-11, 13, & 17)

$117.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-05297

Spark Arrestor

Note: Not shown

$28.99

$

Usually ships in 3-6 days

0
