TB 516 EC (25B-516-766) - Troy-Bilt Edger (2018) General Assembly Parts Diagram

Edger

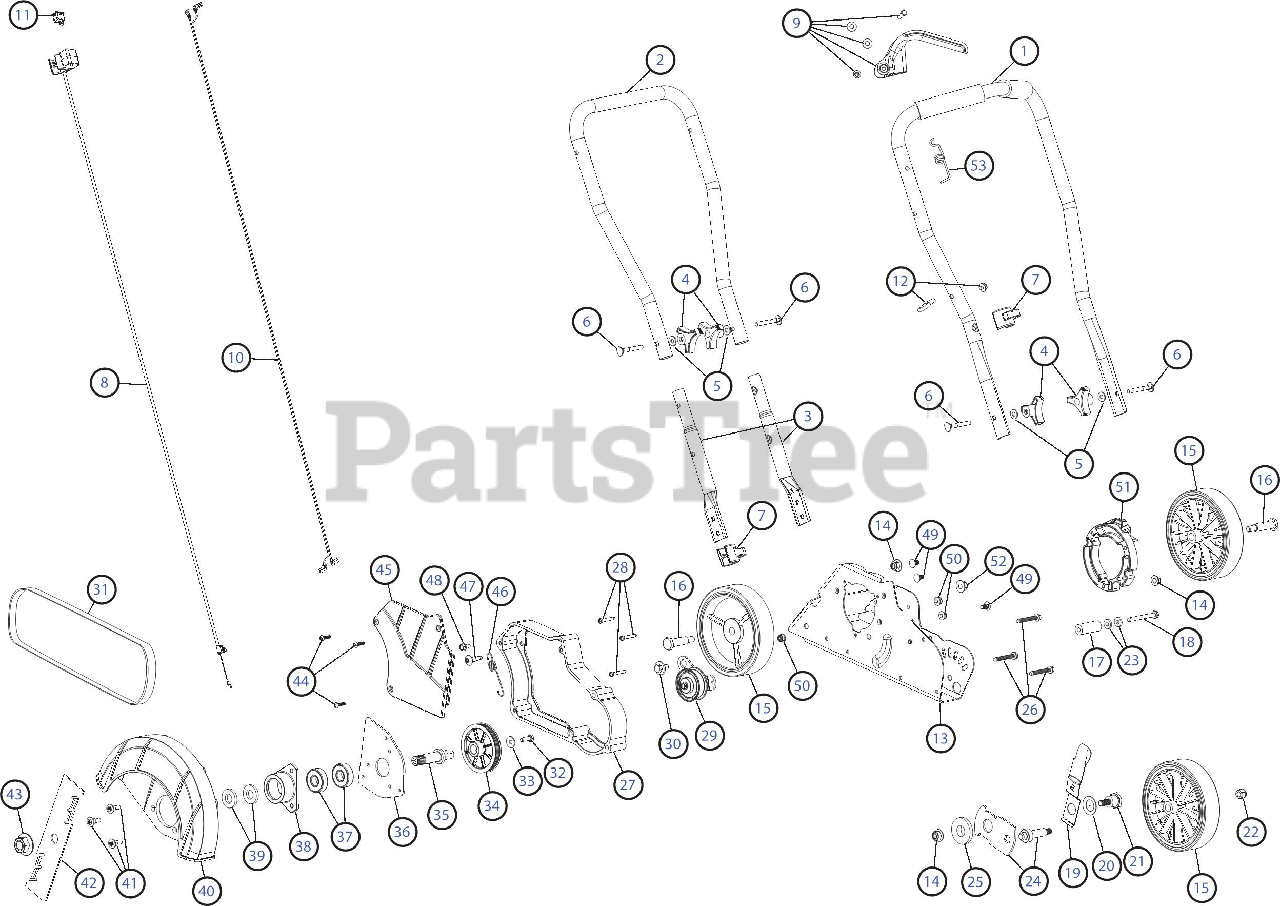

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06542

Upper Handle

$26.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-06543

Middle Handle

$20.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 753-06544

Handle Extension

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 791-182677

Handle Knob

$13.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 4150

Washer

$2.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 791-182899

Bolt

$7.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 731-1820

Cable Guide

$8.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-06546

Throttle Cable

$9.49

$

In Stock, Qty 12

0

9

Troy-Bilt 753-06592

Throttle Lever w/Hardware
(Superseded to 753-10504)

$5.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 9681

WIRE LEAD

$6.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 791-182405

On/Off Switch

$9.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 753-05524

Starter Rope Guide

$6.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-06593

Edger Frame

$40.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 712-04065

Lock Nut

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 734-04261

Wheel

$19.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 938-0373

Wheel Bolt

$8.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 750-04783

Spacer

$3.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-1206

Spacer Screw

$6.99

$

In Stock, Qty 9

0

19

Troy-Bilt 687-02582

PIVOT ARM
(Superseded to 687-02582S)

$3.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 736-0741

Washer

$4.49

$

In Stock, only 1 left!

0

21

Troy-Bilt 738-1172

Shoulder Screw

$5.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 712-0130

Nut

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 750-04929

Washer

$4.49

$

In Stock, only 4 left!

0

24

Troy-Bilt 787-01580

Pivot Arm

$2.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 753-06287

Height Adjustment Spacer

$2.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 710-1026

Spindle Plate Screw

$6.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 753-06556

Spindle Spacer

$3.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 753-06559

Screw

$2.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 753-05540

Idler Pulley Assembly

$35.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 738-0930

Shoulder Screw

$6.49

$

In Stock, only 1 left!

0

31

Troy-Bilt 754-04149

Belt

$30.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 710-3015

Screw

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 10

0

34

Troy-Bilt 756-04087B

Pulley

$11.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 753-05543

Blade Spindle

$21.99

$

In Stock, only 3 left!

0

36

Troy-Bilt 787-01505

SPINDLE MOUNT PLATE

$6.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 741-04547

Bearing

$8.99

$

In Stock, only 1 left!

0

38

Troy-Bilt 718-04012

Bearing Cup

$19.99

$

In Stock, only 3 left!

0

39

Troy-Bilt 936-04088

Washer
(Superseded to 736-04088)

$4.49

$

In Stock, Qty 11

0

40

Troy-Bilt 731-05064

Blade Guard
(Superseded to 731P05064)

$25.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 738-0706D

Screw

$4.49

$

In Stock, Qty 8

0

42

Troy-Bilt 781-0080-0637

Edger Blade

$8.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 710-04194

Screw

$3.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 731-05822

Belt Cover

$10.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 753-06562

Spring

$3.49

$

In Stock, Qty 7

0

47

Troy-Bilt 753-06563

Bolt

$2.49

$

Usually ships in 3-6 days

0

48

Troy-Bilt 710-0599

Screw

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 753-06565

Bolt
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 712-04064

Nut

$3.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 753-06566

Spacer

$5.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 753-06564

Nut

$2.49

$

Usually ships in 3-6 days

0

53

Troy-Bilt 753-06636

Spring

$3.49

$

In Stock, Qty 13

0
