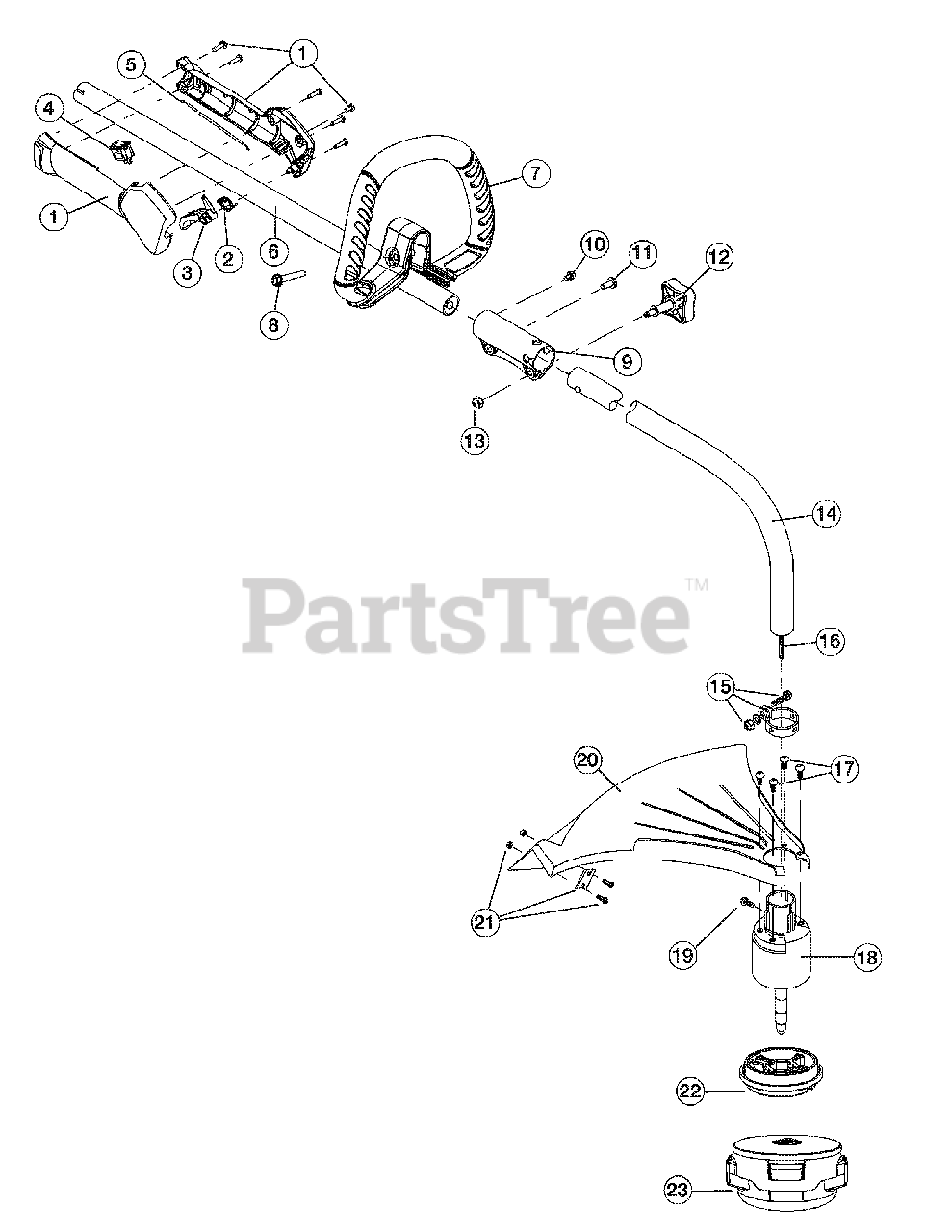

TB 525 EC (41EDT52C966) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (Incl. Ref No. 2-4)

$21.99

$

In Stock, Qty 18

0

2

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, Qty 14

0

3

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 7

0

7

Troy-Bilt 753-06039

D-Handle Assembly (Incl. Ref No. 8)

$11.99

$

In Stock, only 3 left!

0

8

Troy-Bilt 753-06040

Bolt

$6.99

$

In Stock, Qty 7

0

9

Troy-Bilt 753-1190

Split boom Coupler (Incl. Ref No. 10-13)

$23.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 11

0

11

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 13

0

12

MTD 791-181618B

Adjustment Knob (Incl. Ref No. 13)
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

13

Troy-Bilt 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 6

0

14

Troy-Bilt 791-182387

Lower Drive Shaft Housing Assembly (Incl. Ref No. 16)

$63.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 791-153597

Lower Clamp Assembly (Incl. Ref No. 19)

$15.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 791-181852

Lower Flexible Drive Shaft

$59.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181858

Shield Mounting Screw

$

$

Not available

18

Troy-Bilt 753-05050

Bushing Housing Assembly

$

$

Not available

19

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 10

0

20

Troy-Bilt 791-181659

Shield Assembly (Incl. Ref No. 21)

$

$

Not available

21

Troy-Bilt 753-06048

Blade Assembly

$

$

Not available

22

Troy-Bilt 753-05034

Adapter

$7.49

$

In Stock, Qty 7

0

23

Troy-Bilt 753-06129

Spool Assembly
(Superseded to 753-08182)

$19.99

$

In Stock, Qty 20+

0

Troy-Bilt 753-06149

Kit, Speed Spool

Note: Not shown, Kit contains head cover, spring and 4 eyelets for 753-06129 assembly.

$8.99

$

In Stock, Qty 20+

0
