TB 525 ET (41ADT5EC966) - Troy-Bilt String Trimmer Boom & Trimmer Assembly Parts Diagram

String Trimmer

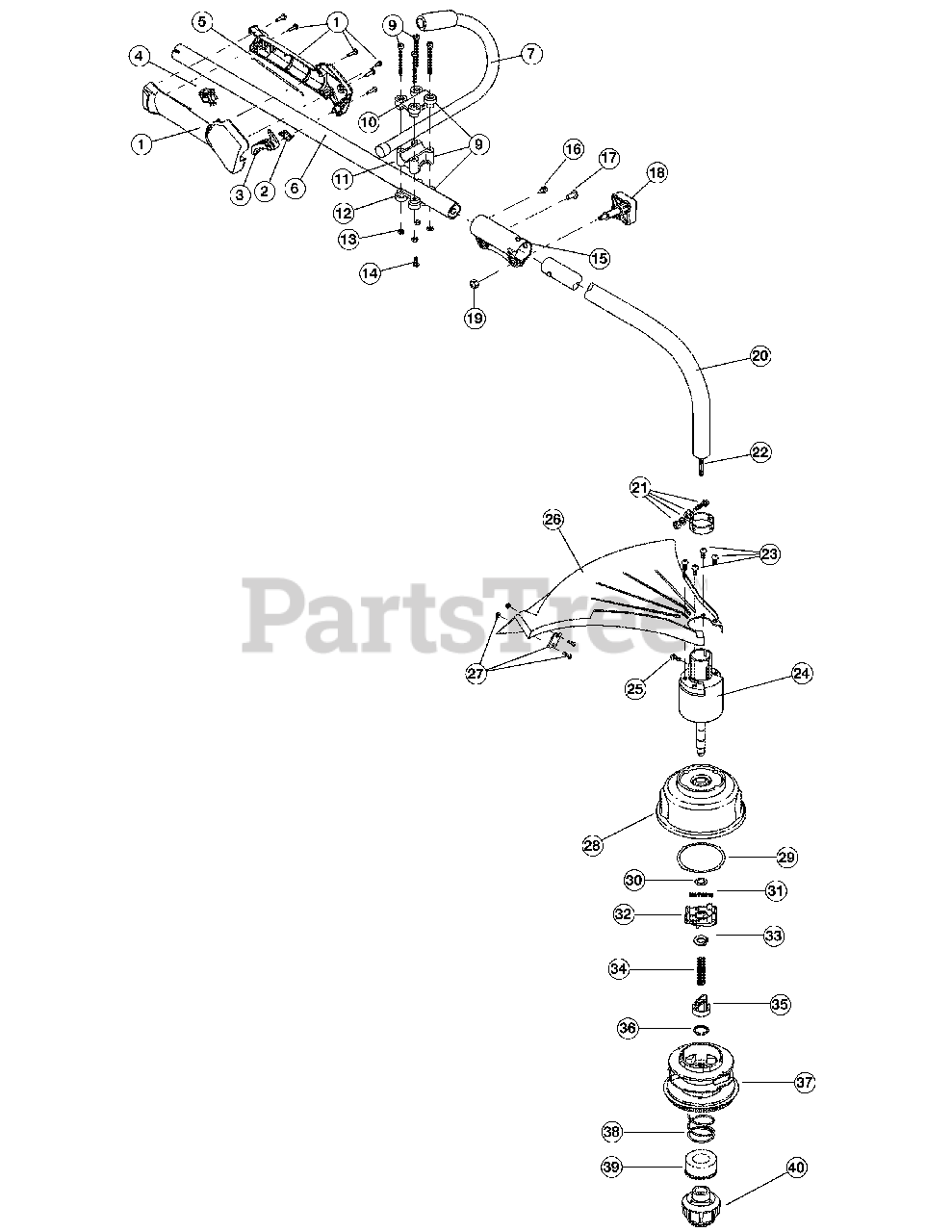

Boom & Trimmer Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (includes 2-4)

$21.99

$

In Stock, Qty 17

0

2

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, Qty 13

0

3

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 791-182673

Switch

$10.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 7

0

7

Troy-Bilt 791-180687

J-Handle Assembly

$41.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 791-683295

Handle Bracket Assembly (includes 9-14)

$45.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 10

0

15

Troy-Bilt 753-1190

Split boom Coupler (includes 12-15)

$23.99

$

In Stock, only 4 left!

0

16

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 11

0

17

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 13

0

18

Troy-Bilt 791-181981

Adjustment Knob (includes 15)
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

19

Troy-Bilt 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

20

Troy-Bilt 791-182387

Lower Drive Shaft Housing Assembly

$63.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 791-153597

Lower Clamp Assembly (includes 21)

$15.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 791-181852

Lower Flexible Drive Shaft

$59.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 791-180531

Shield Mounting Screw
(Superseded to 791-181858)

$

$

Not available

24

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

25

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 10

0

26

Troy-Bilt 791-181659

Shield Assembly (includes 23)

$

$

Not available

27

Troy-Bilt 753-05212

Blade Assembly
(Superseded to 753-06048)

$

$

Not available

28

Troy-Bilt 791-181457

Outer Spool Assembly (includes 25)

$39.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

30

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

31

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, Qty 19

0

32

Troy-Bilt 753-04257

Slider

$7.49

$

In Stock, Qty 8

0

33

Troy-Bilt 791-181532

E-Clip

$4.49

$

In Stock, Qty 17

0

34

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

35

Troy-Bilt 791-181462

Plunger

$

$

Not available

36

Troy-Bilt 791-181463

C-Clip

$3.99

$

In Stock, Qty 5

0

37

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

In Stock, Qty 7

0

38

Troy-Bilt 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

40

Troy-Bilt 791-181468B

Bump Head Knob Assembly (includes 34 & 35)

$

$

Not available

MTD 753-04929

Complete Cutting Head Assemly

Note: Not shown, (includes 17, 20, 21, 24-36)

$

$

Not available
