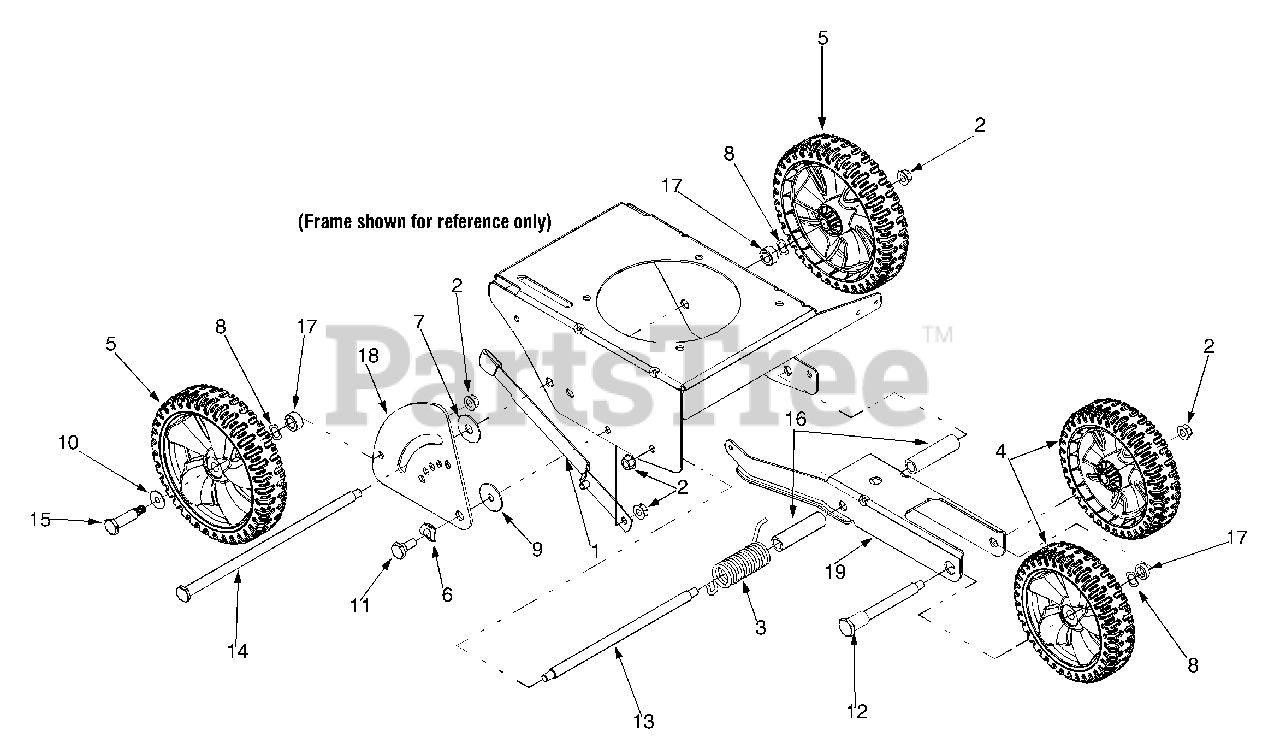

TB 553 (25A-553F063) - Troy-Bilt Edger (2003) Wheels Parts Diagram

Edger

Wheels Parts Diagram

  • Title

1

Troy-Bilt 687-02022

Curb Height Adjustment Lever

$74.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 732-04045

Torsion Spring

$16.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 734-1264

Wheel 7 x 1.75

$58.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 734-1268

Wheel 8 x 1.75

$75.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 736-0182

Spring Washer,.500 x 1.00

$4.99

$

In Stock, Qty 13

0

7

Troy-Bilt 736-0208

Flat Washer,.51 ID x 1.5 OD

$4.99

$

In Stock, Qty 7

0

8

Troy-Bilt 736-0232

Wave Washer,.531 ID x.781 OD

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 736-0234

Washer,.385 x 1.5

$6.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 736-0326

Flat Washer,.510 x 1.00

$4.99

$

In Stock, Qty 5

0

11

Troy-Bilt 738-0380

Shoulder Screw,.50 x.27

$8.49

$

In Stock, Qty 10

0

12

Troy-Bilt 738-04036

Shoulder Screw,.50 x 4.62
(Superseded to 938-04036)

$

$

Not available

13

Troy-Bilt 738-04037

Shoulder Screw,.50 x 9.36, 3/8-16

$48.99

$

Usually ships in 3-6 days

0

14

MTD 738-04041

Shoulder Screw,.50 x 11.61

$

$

Not available

15

Troy-Bilt 738-0527

Shoulder Screw,.498 x 2.045

$9.49

$

In Stock, Qty 10

0

16

Troy-Bilt 750-04129

Spacer,.525 x.688

$4.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 750-0664

Spacer,.505 ID x.88 OD

$7.49

$

In Stock, Qty 6

0

18

MTD 781-0100

Curb Height Adjuster Plate

Variations

781-0100-0637

Troy-Bilt 781-0100-0637

ADJUSTER-CURB HEIGHT - POWDER BLACK (0637)

$

$

Not available

781-0100-0638

Troy-Bilt 781-0100-0638

ADJUSTER-CURB HEIGHT - MTD/TROY-BILT RED (0638)

$

$

Not available

781-0100-0650

Troy-Bilt 781-0100-0650

ADJUSTER-CURB HEIGHT - RED METALLIC (0650)

$

$

Not available

781-0100-0662

Troy-Bilt 781-0100-0662

ADJUSTER-CURB HEIGHT - OYSTER GRAY (0662)

$

$

Not available

$

$

19

Troy-Bilt 787-01074

Wheel Bracket
(Superseded to 787-01074-0637)

Variations

787-01074-0637

Troy-Bilt 787-01074-0637

BRACKET-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$
