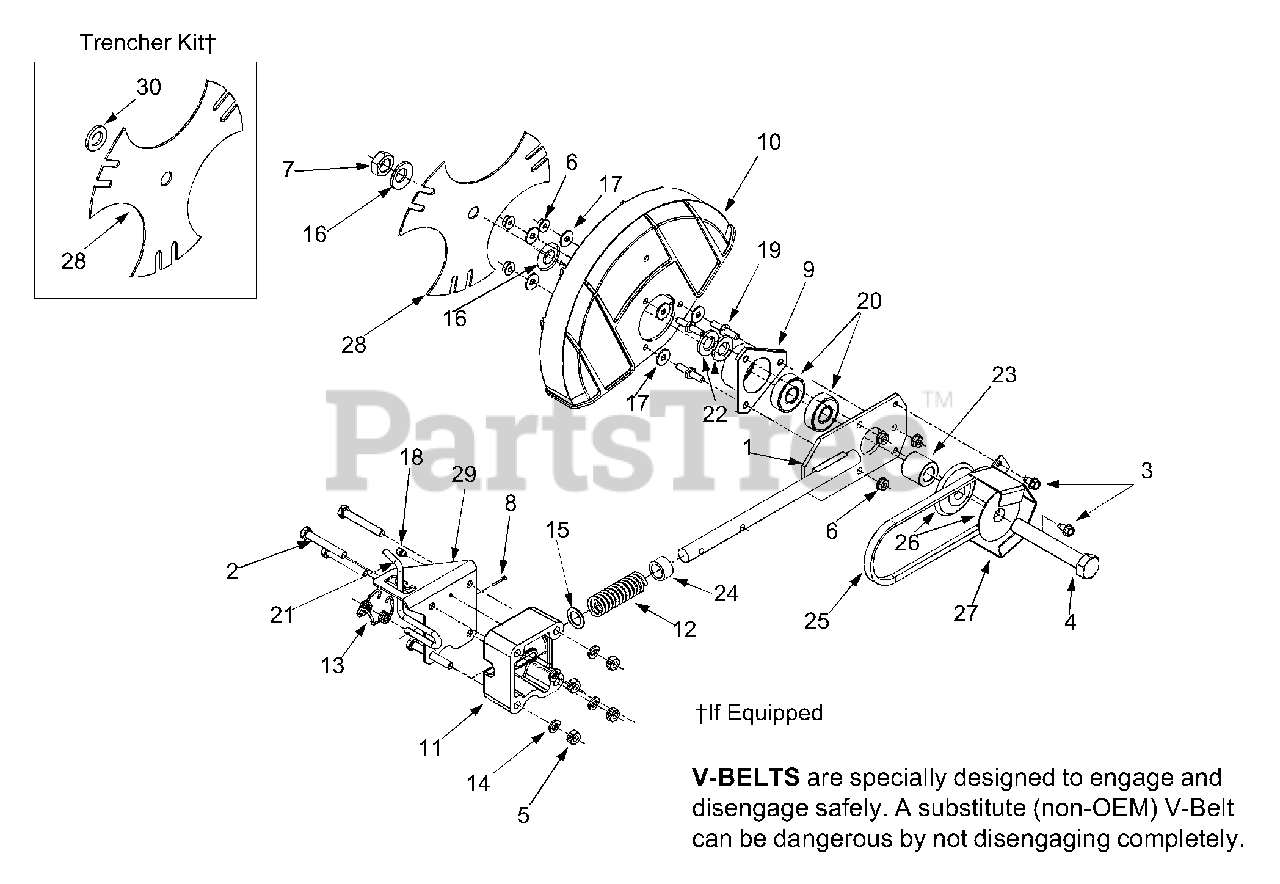

TB 554 (25A-554L766) - Troy-Bilt Edger (2004) Spindle Assembly Parts Diagram

Edger

Spindle Assembly Parts Diagram

  • Title

1

Troy-Bilt 687-02019

Blade Plate Assembly
(Superseded to 753-05727)

$

$

Not available

2

Troy-Bilt 710-0395

Hex Screw, 5/16-18

$4.49

$

In Stock, Qty 8

0

3

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1143A

Hex Screw, 5/8-18

$10.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 712-3004A

Hex Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-3027

Hex Flange Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-3056

Jam Nut, 5/8-18

$4.49

$

In Stock, Qty 11

0

8

Troy-Bilt 714-3010

Cotter Pin

$4.49

$

In Stock, only 4 left!

0

9

Troy-Bilt 718-04012

Bearing Cup

$19.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 731-04158

Blade Guard
(Superseded to 753-05727)

$

$

Not available

11

Troy-Bilt 731-04207

Bearing Block
(Superseded to 931-04207)

$25.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 732-04169

Compression Spring
(Superseded to 932-04169)

$9.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 732-0188A

Double Torsion Spring

$11.99

$

In Stock, Qty 18

0

14

Troy-Bilt 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-0187

Flat Washer,.64 ID x 1.24 x.06

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 736-0317

Bell Washer,.63 ID x 1.2 OD

$7.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 736-3090

Flat Washer,.260 x.72

$6.49

$

In Stock, only 2 left!

0

18

Troy-Bilt 737-3000

Lube Fitting, 3/16
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 738-04025

Pin, 1/4-20
(Superseded to 938-04025)

$

$

Not available

20

Troy-Bilt 741-0524

Bearing,.625 ID x 1.57 OD
(Superseded to 941-0524A)

$21.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 747-04110

Blade Adjustment Rod
(Superseded to 747-04110A)

$15.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 736-04088

Flat Washer

$4.49

$

In Stock, Qty 11

0

23

Troy-Bilt 750-04105

Spacer,.63 x 1.12 x 1.06
(Superseded to 950-04105)

$14.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 750-0547

Spacer,.632 ID x.875 OD

$5.49

$

In Stock, only 3 left!

0

25

Troy-Bilt 754-04032

Belt
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 756-0449

Sheave
(Superseded to 956-0449)

$13.99

$

In Stock, Qty 8

0

27

Troy-Bilt 781-0427

Spindle Belt Guard
(Superseded to 781-0427-0637)

Variations

Troy-Bilt 781-0427-0637

Belt Guard, Black - POWDER BLACK (0637)

$19.99

$

In Stock, Qty 16

0

$19.99

$

In Stock, Qty 16

0

28

Troy-Bilt 781-0748

Tri Star Blade

Note: If Equipped

Variations

Troy-Bilt 781-0748-0637

Tri-Cut Edger Blade, Black - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 20+

0

$21.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 787-01081

Index Bracket
(Superseded to 787-01081A-0637)

Variations

Troy-Bilt 787-01081-0637

Index Edge Bracket - POWDER BLACK (0637)

$5.99

$

Usually ships in 3-6 days

0

$5.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 736-04088

Flat Washer

Note: If Equipped

$4.49

$

In Stock, Qty 11

0
