TB 575 SS (41ADT57C711) - Troy-Bilt String Trimmer Boom and Trimmer TB575SS Parts Diagram

String Trimmer

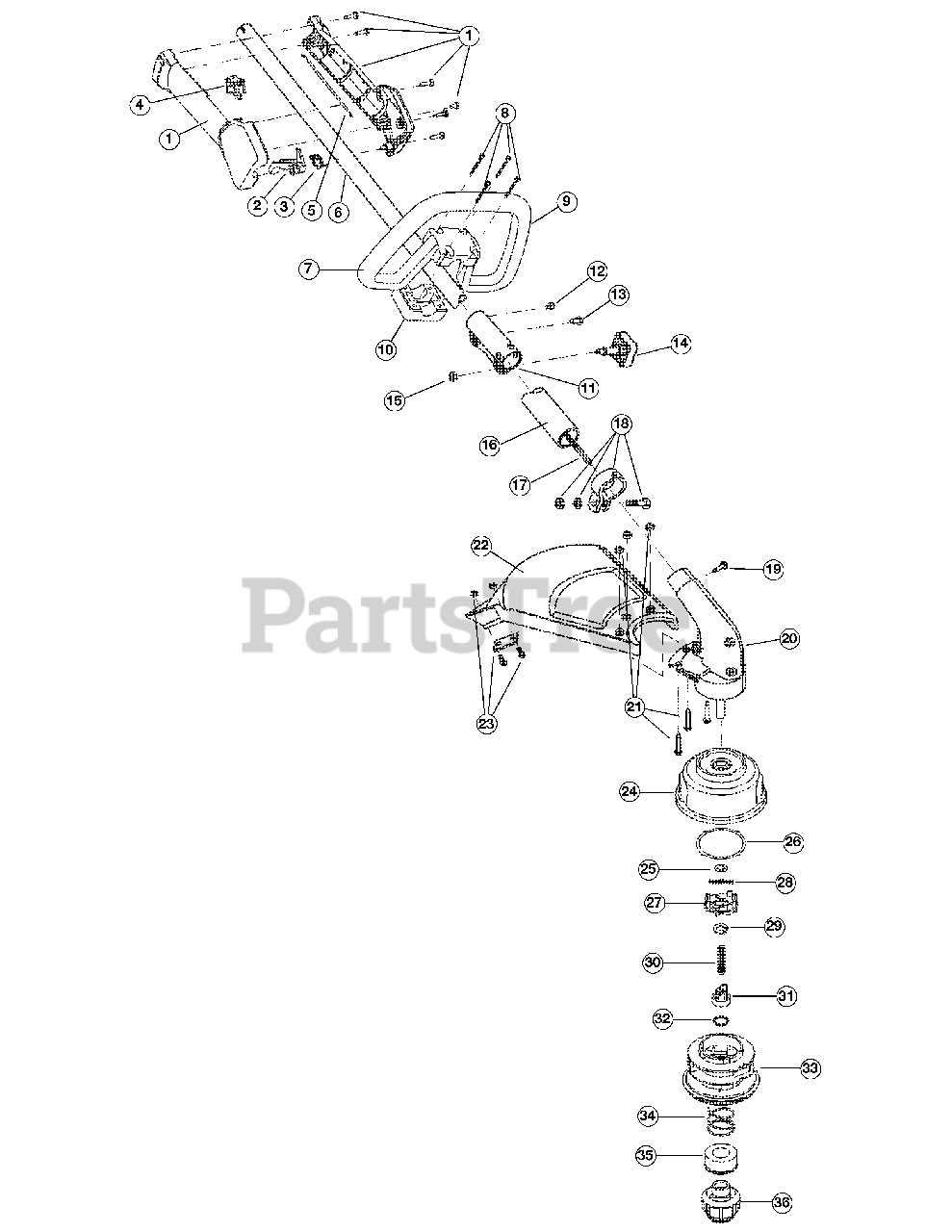

Boom and Trimmer TB575SS Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (includes 2-4)

$21.99

$

In Stock, Qty 17

0

2

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, Qty 13

0

4

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 7

0

7

MTD 791-180869

Deluxe D-Handle Assembly (includes 8-10)

$

$

Not available

8

Troy-Bilt 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

Troy-Bilt 753-1190

Split Boom Coupler (includes 12-15)

$23.99

$

In Stock, only 3 left!

0

12

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 11

0

13

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 13

0

14

Troy-Bilt 791-181981

Adjustment Knob (includes 15)
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

16

Troy-Bilt 753-04504

Lower Drive Shaft Housing Assembly

$69.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, Qty 6

0

18

Troy-Bilt 791-153597

Lower Clamp Assembly (includes 19)

$

$

Not available

19

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 10

0

20

MTD 753-05269

Gear Box Assembly
(Superseded to 753-05268)

$

$

Not available

21

Troy-Bilt 791-180547

Shield Mounting Hardware

$

$

Not available

22

Troy-Bilt 753-1213

Shield Assembly (includes 23)
(Superseded to 1A6902)

$

$

Not available

23

Troy-Bilt 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 791-181457

Outer Spool Assembly (includes 25)

$39.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

26

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

27

Troy-Bilt 753-04257

Slider

$7.49

$

In Stock, Qty 7

0

28

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, Qty 17

0

29

Troy-Bilt 791-181532

E-Clip

$4.49

$

In Stock, Qty 16

0

30

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

31

Troy-Bilt 791-181462

Plunger

$

$

Not available

32

Troy-Bilt 791-181463

C-Clip

$3.99

$

In Stock, Qty 5

0

33

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

In Stock, Qty 6

0

34

Troy-Bilt 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

36

Troy-Bilt 791-181468B

Bump Head Knob Assembly (includes 34 & 35)

$

$

Not available

MTD 753-05268

Cutting Head Assembly (includes 24-36 and Gear Box)

Note: Not shown

$

$

Not available

Troy-Bilt 791-182195

Screw #10-24x11/16 T-25

Note: Not shown

$7.49

$

In Stock, Qty 7

0
