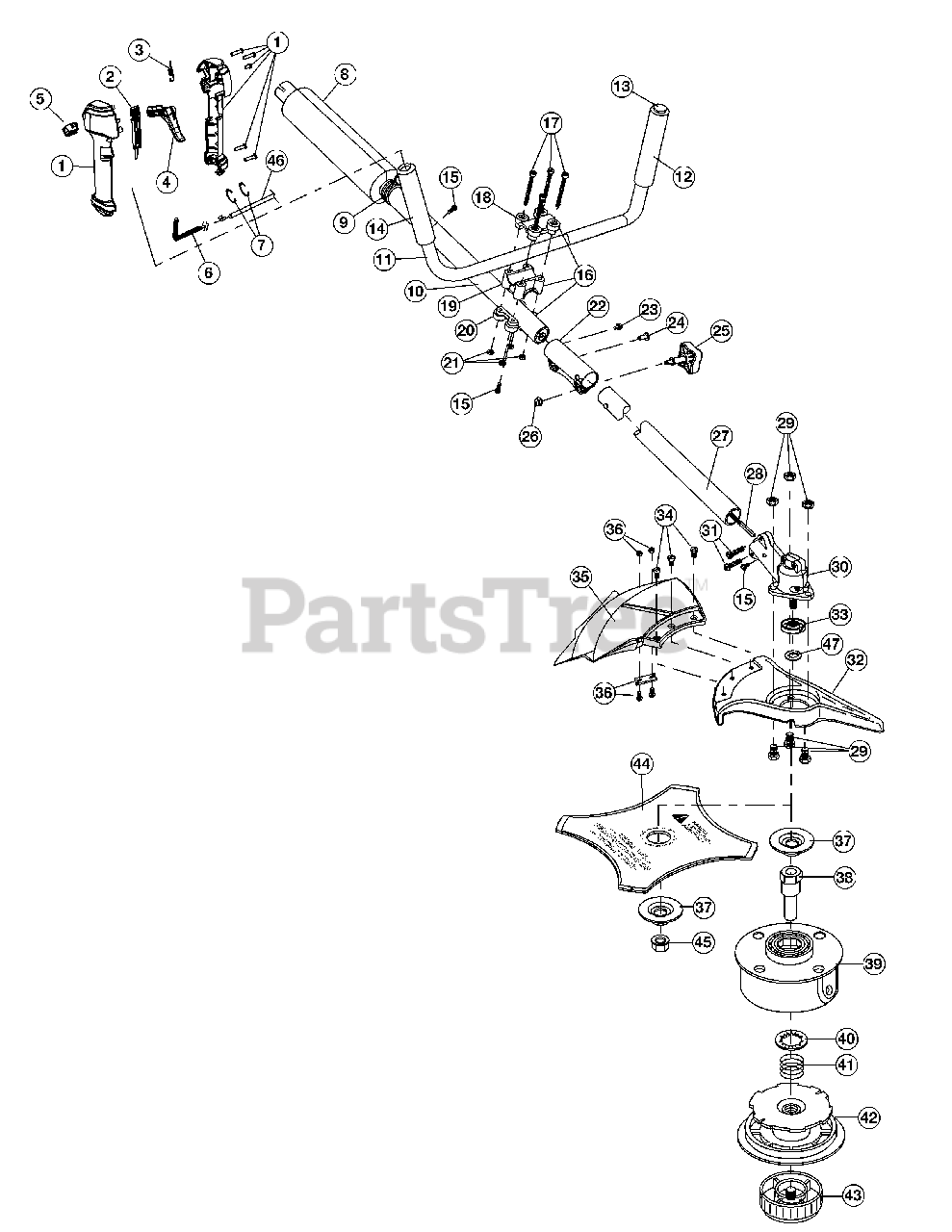

TB 590 EC (41ADZ59C766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05181

Throttle Housing Assembly (Incl. 2 - 5)

$

$

Not available

2

Troy-Bilt 731-04971C-10

Throttle Trigger Lock-Out
(Superseded to 731-04971B-10)

$5.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-05007

Throttle Trigger Spring

$5.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 731-04970A-2

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 10

0

5

Troy-Bilt 791-182673

Switch Assembly

$10.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-04098

Wire Cover 1ft

$

$

Not available

7

Troy-Bilt 725-0157

Wire Tie

$3.99

$

In Stock, only 4 left!

0

8

Troy-Bilt 791-180858

Foam Grip & Cover

$

$

Not available

9

Troy-Bilt 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 7

0

11

MTD 753-05177

Bullhorn Handle Assembly (Incl. 12 - 15)

$

$

Not available

12

Troy-Bilt 791-612831

Grip

$12.99

$

Usually ships in 3-6 days

0

13

MTD 791-612021

Tube Closure
(Superseded to 1925)

$2.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-04096

Adapter
(Superseded to 792-10029)

$5.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-181345

Anti-Rotation Screw

$4.49

$

In Stock, Qty 17

0

16

Troy-Bilt 791-683295

Handle Bracket Assembly (Incl. 17 - 21)

$45.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 753-1190

Split Boom Coupler (Incl. 23 - 26)

$23.99

$

In Stock, only 4 left!

0

23

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 11

0

24

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 13

0

25

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

26

Troy-Bilt 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 6

0

27

Troy-Bilt 753-04504

Lower Drive Shaft Housing

$69.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, Qty 7

0

29

Troy-Bilt 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 791-182193

Gearbox Assembly (Incl. 15, 31, 33 & 47)

$99.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 791-182195

Gear Box Screw

$7.49

$

In Stock, Qty 13

0

32

Troy-Bilt 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 791-182196

Blade Driver

$22.99

$

In Stock, only 3 left!

0

34

Troy-Bilt 791-683304

Shield Mounting Screw

$11.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 791-180387

Shield Assembly (Incl. 36)

$

$

Not available

36

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

37

Troy-Bilt 791-147490

Retaining Washer

$11.99

$

In Stock, Qty 7

0

38

Troy-Bilt 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 791-683301

Outer Spool Assembly

$48.99

$

In Stock, Qty 9

0

40

Troy-Bilt 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 17

0

41

Troy-Bilt 791-610636B

Spring

$10.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 791-147495

Inner Reel

$26.99

$

In Stock, Qty 14

0

43

Troy-Bilt 791-180814B

Bump Head Knob Assembly

$21.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 791-147245

4-Tooth Blade

$34.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 712-04105

Nut

$10.99

$

In Stock, only 3 left!

0

46

Troy-Bilt 753-05415

Throttle Cable

$33.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 753-04348

Palnut

$6.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-682075B

Shoulder Harness

Note: (Not shown)

$38.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-613225

Wrench

Note: (Not shown)

$

$

Not available

Troy-Bilt 791-180014B

Blade Retaining Kit (Incl. 37 & 45)

Note: (Not shown)

$12.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-613226

Locking Rod Tool

Note: (Not shown)

$14.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-147345B

Reel and Line Assembly

Note: (Not shown)

$31.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-147498

Bump Head Assembly (Incl. 39 - 43)

Note: (Not shown)

$117.99

$

In Stock, only 2 left!

0

Troy-Bilt 753-04216

Replacement Line, 0.105" diameter

Note: (Not shown)

$

$

Not available
