TB 6044 XP (41CDZ6PC766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

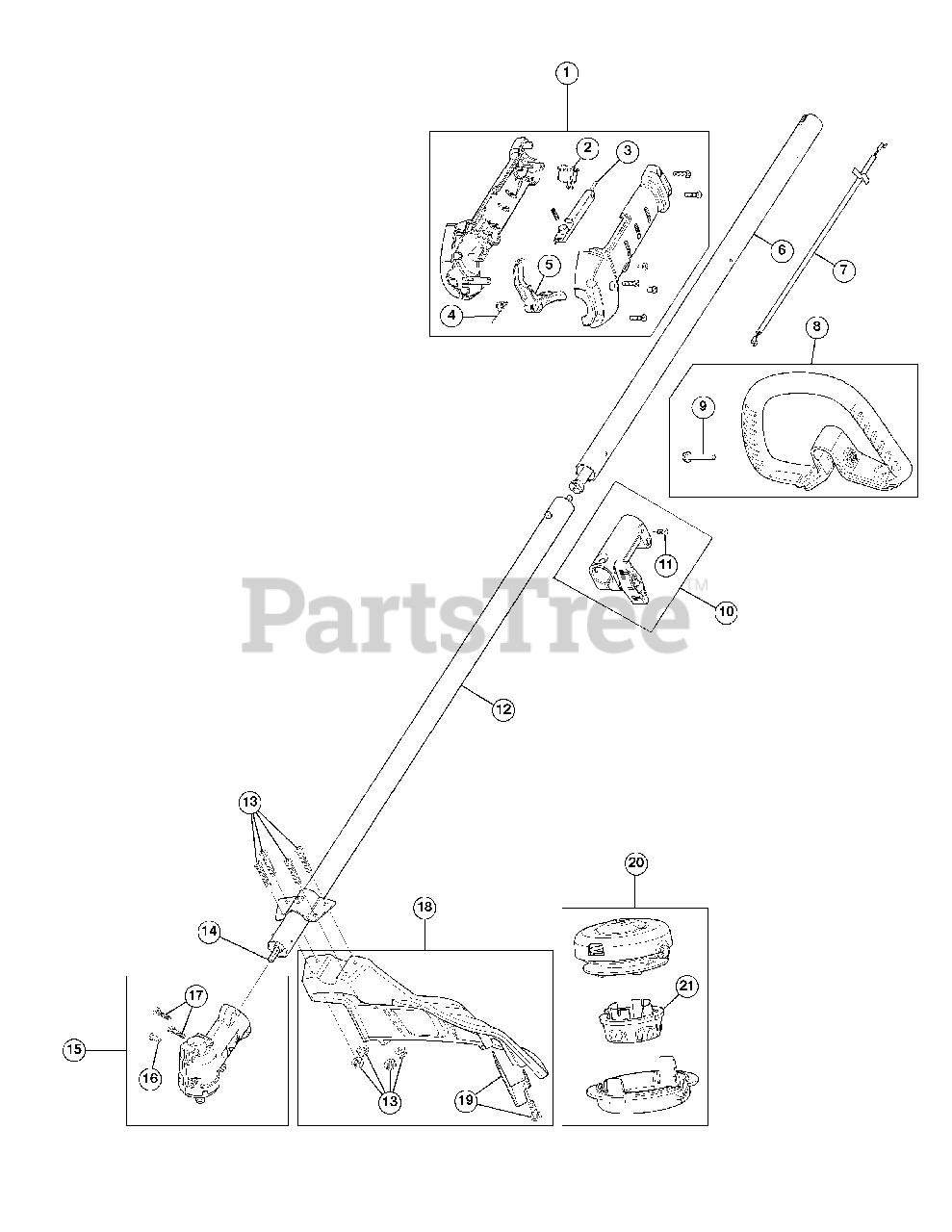

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06887

Throttle Housing Assembly (Incl. 2 - 5)

$16.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 791-182405

Trigger Switch Assembly

$10.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 731-04971C-10

Throttle Lock-out
(Superseded to 731-04971B-10)

$5.49

$

In Stock, only 1 left!

0

4

Troy-Bilt 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 1 left!

0

5

Troy-Bilt 753-06888

Throttle Trigger
(Superseded to 753-08564)

$23.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 753-08340

Upper Drive Shaft Assembly

$17.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 946-05051A

Throttle Cable

$4.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-06889

D-Handle Assembly (Incl. 9)

$9.49

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-06040

Bolt

$6.99

$

In Stock, Qty 6

0

10

Troy-Bilt 753-06886

Split Boom Coupler (Incl. 11)

$10.99

$

In Stock, Qty 9

0

11

Troy-Bilt 7682

Coupler Anti-Rotation Screw

$2.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 753-08339

Lower Drive Shaft Housing Assembly

$19.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-06125

Shield Mounting Screws and Nuts

$6.99

$

In Stock, Qty 8

0

14

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, Qty 6

0

15

Troy-Bilt 753-08180

Gearbox Assembly (Incl. 16 - 17)

$45.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 791-182519

Gearbox Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 7

0

18

Troy-Bilt 753-05820

Shield Assembly (Incl. 19)

$24.99

$

In Stock, only 4 left!

0

19

Troy-Bilt 753-05821

Blade Assembly

$9.49

$

In Stock, only 1 left!

0

20

Troy-Bilt 841-031656S

Cutting Head Assembly (Incl. 21)
(Superseded to 841-032392S)

$23.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 753-08163

Bump Knob

$3.49

$

In Stock, Qty 20+

0

Troy-Bilt 49M2027P966

Corded Electric Starter Attachment

Note: (Optional Accessory)

$65.99

$

In Stock, Qty 9

0

Troy-Bilt 49MRBESY966

Cordless Electric Start Adaptor
(Superseded to 49MRBESY953)

Note: (Optional Accessory)

$

$

Not available

Troy-Bilt 49MESCBP966

Drill Bit Electric Start Adaptor
(Superseded to 49MASCBP966)

Note: (Optional Accessory)

$19.99

$

In Stock, Qty 12

0

Troy-Bilt 49U2341K953

Round Line-.095, 40 ft. packet

Note: (Optional Accessory)

$

$

Not available

Troy-Bilt 737-04317

Oil, 4-Cycle 3.4 OZ. SAE 30
(Superseded to 737-05691)

Note: (Optional Accessory)

$2.99

$

In Stock, only 1 left!

0
