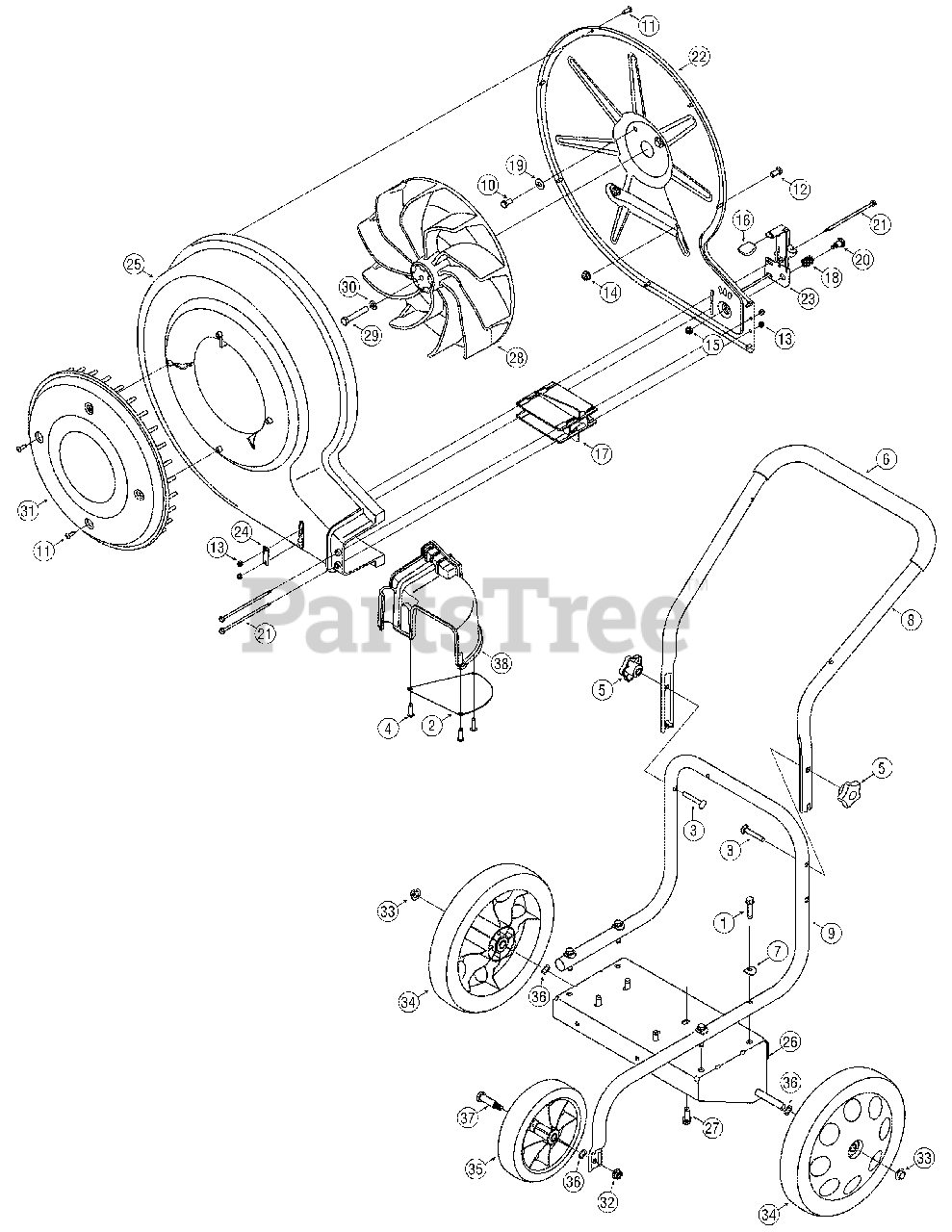

TB 672 (24A-672G066) - Troy-Bilt Jet Sweep Walk-Behind Blower (2007) General Assembly Parts Diagram

Jet Sweep Walk-Behind Blower

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-04605

TT Screw, 5/16-18 x 1.50
(Superseded to 710-04605B)

$7.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 781-04175

Chute Plate

Variations

781-04175-0606

Troy-Bilt 781-04175-0606

Discharge Chute Plate - MAJESTIC ORANGE (0606)

$9.49

$

Usually ships in 3-6 days

0

781-04175-0638

Troy-Bilt 781-04175-0638

Discharge Chute Plate - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, only 1 left!

0

781-04175-4021

Troy-Bilt 781-04175-4021

Discharge Chute Plate - CUB YELLOW 2 (4021)

$10.99

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0487

Carriage Screw, 5/16-18 x 2.00

$7.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-1220

Screw, #12-16 x .750

$4.99

$

In Stock, only 4 left!

0

5

Troy-Bilt 720-04072

Star Knob
(Superseded to 720-04072A)

$7.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 720-04091

Foam Grip

$22.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 736-0451

Saddle Washer, .320 x .93 x .060

$4.99

$

In Stock, Qty 8

0

8

Troy-Bilt 749-04291

Upper Handle

Variations

749-04291-0606

Troy-Bilt 749-04291-0606

HNDL-UPPER BLOWER - MAJESTIC ORANGE (0606)

$59.99

$

Usually ships in 3-6 days

0

749-04291-0638

Troy-Bilt 749-04291-0638

HANDLE-UPPER BLOWER - MTD/TROY-BILT RED (0638)

$59.99

$

Usually ships in 3-6 days

0

749-04291-0691

Troy-Bilt 749-04291-0691

HANDLE-UPPER BLOWER - BLACK JACK (0691)

$59.99

$

Usually ships in 3-6 days

0

749-04291-4021

Troy-Bilt 749-04291-4021

HANDLE-UPPER BLOWER - CUB YELLOW 2 (4021)

$59.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 749-04292

Lower Handle

Variations

749-04292-0638

Troy-Bilt 749-04292-0638

HANDLE-LOWER BLOWER - MTD/TROY-BILT RED (0638)

$73.99

$

Usually ships in 3-6 days

0

749-04292-0691

Troy-Bilt 749-04292-0691

HANDLE-LOWER BLOWER - BLACK JACK (0691)

$64.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-0237

Screw, 5/16-24 x .625

$4.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 710-04705

Screw, #12-16 x .750

$

$

Not available

12

Troy-Bilt 710-3008

Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04035

Hexlock Nut, #8-32

$4.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 720-0426

Knob
(Superseded to 731-13116-1)

$14.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 731-05644

Louver Plate

$8.99

$

Usually ships in 3-6 days

0

18

MTD 732-3042

Compr. Sprng., .515 x .641 x .95
(Superseded to 932-3042)

$5.49

$

In Stock, only 1 left!

0

19

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$4.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 738-04222

Shoulder Scr., .437 x .13, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 738-04223

Shoulder Scr., .18 x 4.8, 8-32

$5.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 781-04165

Back Plate
(Superseded to 781-04165A)

Variations

781-04165-0638

Troy-Bilt 781-04165-0638

PLATE-BACK BLOWER - MTD/TROY-BILT RED (0638)

$78.99

$

Usually ships in 3-6 days

0

781-04165-0691

Troy-Bilt 781-04165-0691

PLATE-BACK BLOWER - BLACK JACK (0691)

$78.99

$

Usually ships in 3-6 days

0

781-04165-4021

Troy-Bilt 781-04165-4021

PLATE-BACK BLOWER - CUB YELLOW 2 (4021)

$78.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 781-04181

Louver Lever
(Superseded to 781-04181B)

Variations

781-04181-0638

Troy-Bilt 781-04181-0638

LEVER-BLOWER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

781-04181-0691

Troy-Bilt 781-04181-0691

LEVER-BLOWER - BLACK JACK (0691)

$23.99

$

Usually ships in 3-6 days

0

781-04181-4021

Troy-Bilt 781-04181-4021

LEVER-BLOWER - CUB YELLOW 2 (4021)

$26.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 781-04212

Louver Guide Plate
(Superseded to 781-04212-0637)

Variations

781-04212-0637

Troy-Bilt 781-04212-0637

PLATE-GUIDE LOUVER - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 731-05592

Blower Housing

$84.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 681-04067

Frame Assembly
(Superseded to 681-04067A-0638)

Variations

681-04067-0638

Troy-Bilt 681-04067-0638

FRAME ASM-BLOWER - MTD/TROY-BILT RED (0638)

$100.99

$

Usually ships in 3-6 days

0

$100.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 710-0654A

TT Screw, 3/8-16 x 1.00

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 631-04213

Impeller Assembly

$170.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-1254

Screw, 3/8-24 x 2.25

$

$

Not available

30

Troy-Bilt 736-0217

Washer, Lock, 3/8

$4.49

$

In Stock, only 3 left!

0

31

Troy-Bilt 731-05664

Blower Cover

$48.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 734-04019

Wheel, 12 x 2.125

$74.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 734-04033

Wheel, 8 x 2
(Superseded to 753-08091)

$49.99

$

In Stock, Qty 9

0

36

Troy-Bilt 736-0504

Washer, Wave, .510 x .750 x .017
(Superseded to 936-0504)

$4.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 738-0213

Shoulder Screw, .498 Dia. X 1.44

$8.49

$

In Stock, only 2 left!

0

38

Troy-Bilt 631-04253

Chute Attachment

$39.99

$

Usually ships in 3-6 days

0
