TB 672 (24A-672J766) - Troy-Bilt Jet Sweep Walk-Behind Blower (2012) TB672 General Assembly Parts Diagram

Jet Sweep Walk-Behind Blower

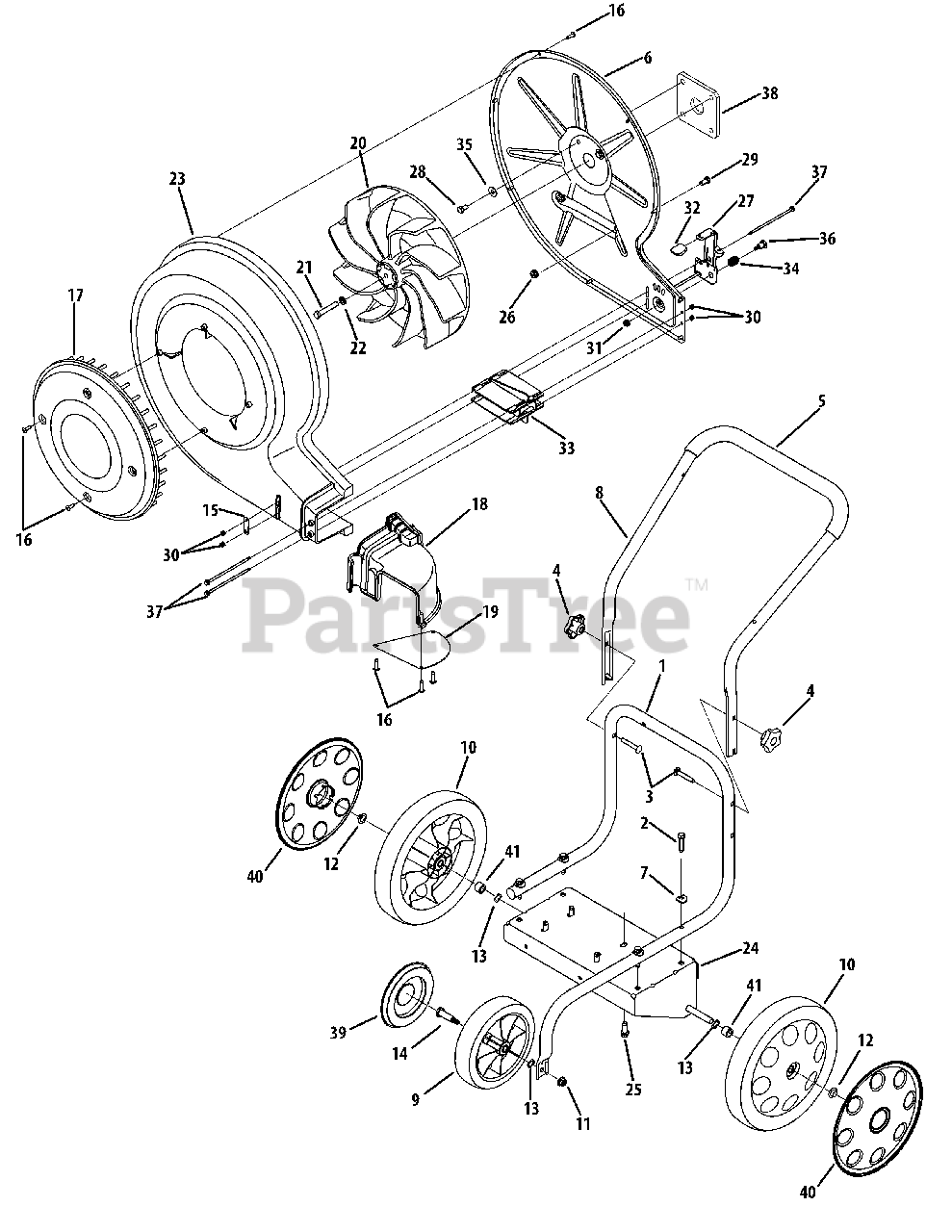

TB672 General Assembly Parts Diagram

  • Title

1

Troy-Bilt 749-04292-0638

Lower Handle Assembly

$69.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04605

Hex Screw, 5/16-18 x 1.50
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0487

Carriage Screw, 5/16-18 x 2.00

$7.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 720-04072A

Star Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 720-04091

Foam Grip, .970 x 25

$21.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 781-04165-0638

Back Plate
(Superseded to 781-04165A-0638)

$73.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 936-0451

Saddle Washer, .320 x .93 x .060
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 749-04291-0638

Upper Handle

$56.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 734-04033

Wheel, 8 x 2
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 13

0

10

Troy-Bilt 934-04404

Wheel, 12"

$

$

Not available

11

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 726-0299

Push Cap, 1/2"

$8.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 936-0504

Wave Washer, .510 x .750 x .017

$4.49

$

In Stock, Qty 12

0

14

Troy-Bilt 738-0213

Shoulder Screw, .498 x 1.445

$7.99

$

In Stock, Qty 5

0

15

Troy-Bilt 781-04212-0637

Guide Plate

$7.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-04373A

Hex Screw, 12-16 x .75

$4.49

$

In Stock, Qty 15

0

17

Troy-Bilt 731-05664

Blower Cover

$45.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 631-04253

Chute Assembly

$37.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 781-04175-0638

Chute Plate

$9.49

$

In Stock, only 1 left!

0

20

Troy-Bilt 631-04213

Impeller Assembly

$160.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 710-1254

Hex Screw, 3/8-24 x 2.25

$7.99

$

In Stock, Qty 9

0

22

Troy-Bilt 936-0217

Lock Washer, 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 13

0

23

Troy-Bilt 731-05592

Blower Housing

$79.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 681-04067A-0638

Frame

$94.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 710-0654A

Sems Screw, 3/8-16 x 1.000

$4.49

$

In Stock, only 4 left!

0

26

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 781-04181

Louver Lever
(Superseded to 781-04181B)

Variations

Troy-Bilt 781-04181-0638

LEVER-BLOWER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04181-0691

LEVER-BLOWER - BLACK JACK (0691)

$22.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04181-4021

LEVER-BLOWER - CUB YELLOW 2 (4021)

$25.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 710-0237

Hex Bolt, 5/16-24 x .625 (205 CC)

Note: 24A-672J Models

$4.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 710-0888

Hex Bolt, 5/16-24 x 1.00 (208 CC)

Note: 24A-67M3 Models

$4.49

$

In Stock, Qty 11

0

29

Troy-Bilt 710-3008

Hex Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 712-04035

Hex Lock Nut, #8-32

$4.49

$

Usually ships in 3-6 days

0

31

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 731-05644

Louver Plate

$8.49

$

Usually ships in 3-6 days

0

34

Troy-Bilt 932-3042

Comp. Spring, .515 x .641 x .95

$4.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 738-04222

Shoulder Screw, .437 x .50 x 1/4-20

$2.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 738-04223

Shoulder Screw, .18 x 4.8 x 8-32

$4.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 781-04292-0637

Engine Plate (208 CC)

Note: 24A-67M3 Models

$8.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 731-0981C

Hubcap, 8"

$10.99

$

In Stock, Qty 6

0

40

Troy-Bilt 731-06146

Hubcap, 12"

$20.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 750-04854

Spacer, .525 x .775 x .560

$3.49

$

In Stock, only 2 left!

0
