TB 685 EC (41DDZ68C766) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

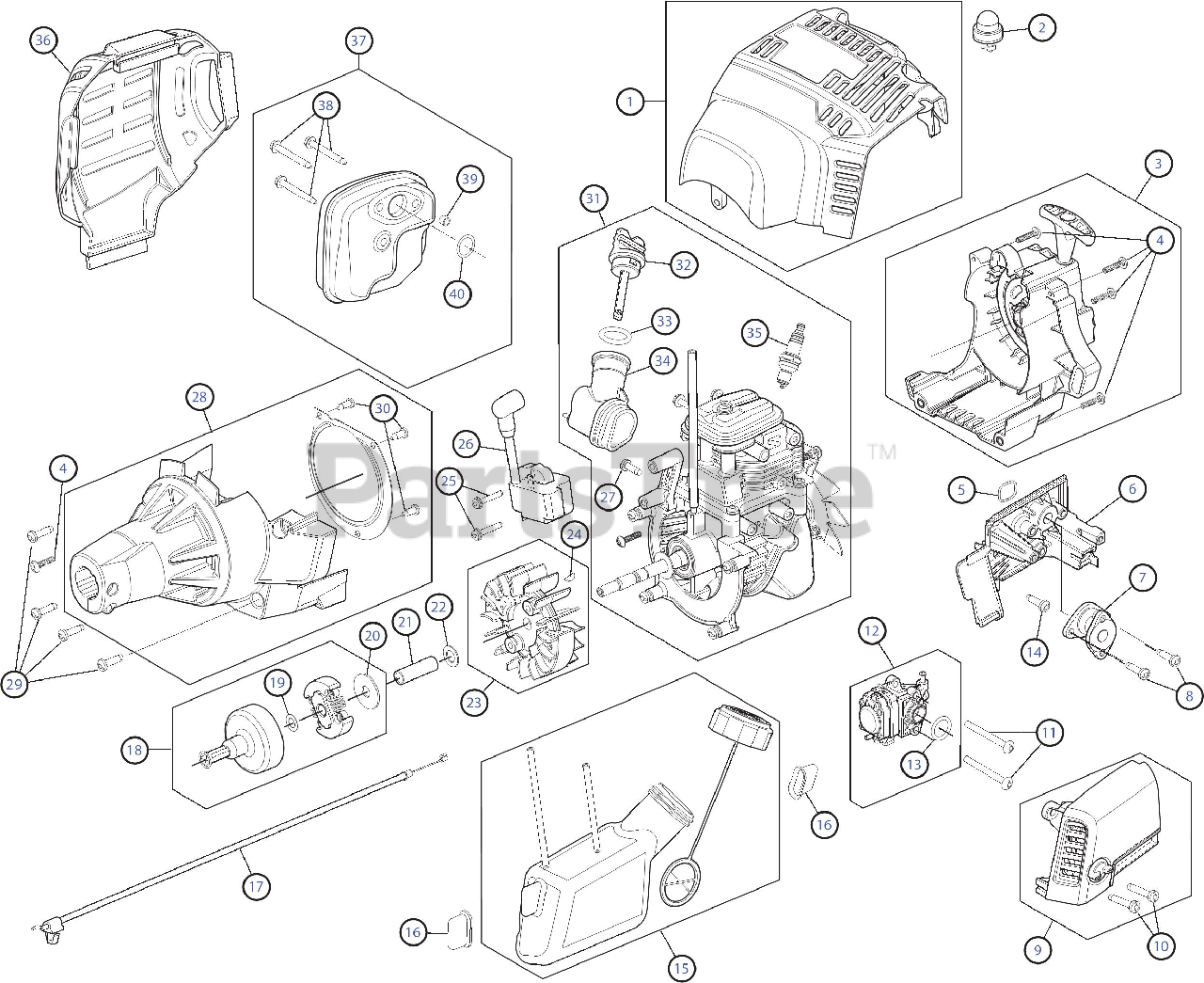

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-08320

Top Housing Assembly

$17.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-08319

Air Purge Primer

$3.49

$

In Stock, Qty 20+

0

3

MTD 753-08738

Starter Housing Assembly

$22.99

$

In Stock, Qty 7

0

4

Troy-Bilt 710-04194

Screw

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 721-04466

O-Ring

$2.49

$

In Stock, only 1 left!

0

6

Troy-Bilt 731-10184A

Intake Port

$6.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 753-08053

Boot Assembly

$19.99

$

In Stock, Qty 5

0

8

Troy-Bilt 710-06238

Screw

$2.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 753-08304

Air Cleaner Assembly

$

$

Not available

10

Troy-Bilt 753-06470

Screw

$2.49

$

In Stock, Qty 17

0

11

Troy-Bilt 710-06003

Screw

$2.49

$

In Stock, Qty 5

0

12

Troy-Bilt 753-08323

Carburetor Assembly

$35.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 791-181751

O-Ring

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

15

Troy-Bilt 753-08325

Fuel Tank Assembly

$23.99

$

In Stock, Qty 7

0

16

Troy-Bilt 753-05259

Fuel Tank Pad

$6.49

$

In Stock, Qty 5

0

17

Troy-Bilt 794-00047A

Lead Wire

$5.49

$

In Stock, Qty 7

0

18

Troy-Bilt 753-05860

Clutch Assembly

$23.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 6674

Thrust Washer

$3.49

$

In Stock, only 1 left!

0

20

Troy-Bilt 9162-1

Clutch Washer

$4.49

$

In Stock, Qty 8

0

21

Troy-Bilt 2557

Power Shaft Spacer

$2.49

$

In Stock, only 2 left!

0

22

Troy-Bilt 936-0314

Thrust Washer
(Superseded to 736-0314)

$

$

Not available

23

Troy-Bilt 753-06246

Flywheel Assembly

$20.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 914-04016

Key

$4.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 710-06224

Screw

$2.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 753-08210

Module Assembly

$34.99

$

In Stock, Qty 6

0

27

Troy-Bilt 9054

Screw

$4.49

$

In Stock, Qty 5

0

28

Troy-Bilt 753-08322

Clutch Cover Assembly

$10.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-06284

Screw

$2.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 1755

Screw

$3.99

$

Usually ships in 3-6 days

0

31

MTD 753-08740

Shortblock Assembly

$108.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 731-08920A-9

Oil Fill Plug

$2.49

$

In Stock, Qty 5

0

33

Troy-Bilt 721-04509

O-Ring

$2.49

$

In Stock, only 4 left!

0

34

MTD 753-08739

Oil Fill Tube

$11.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 794-00082

Spark Plug

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 731-08903-1

Muffler Housing
(Superseded to 753-08338)

$6.49

$

In Stock, only 3 left!

0

37

Troy-Bilt 753-08324

Muffler Assembly

$22.99

$

In Stock, Qty 5

0

38

Troy-Bilt 710-04487

Screw
(Superseded to 710-04809)

$3.49

$

Usually ships in 3-6 days

0

39

MTD 750-04914

Spacer

$3.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 721-04508

Muffler Gasket

$2.49

$

In Stock, Qty 9

0
