TB 70 SS (41ADT70C711) - Troy-Bilt String Trimmer Boom and Trimmer Parts Parts Diagram

String Trimmer

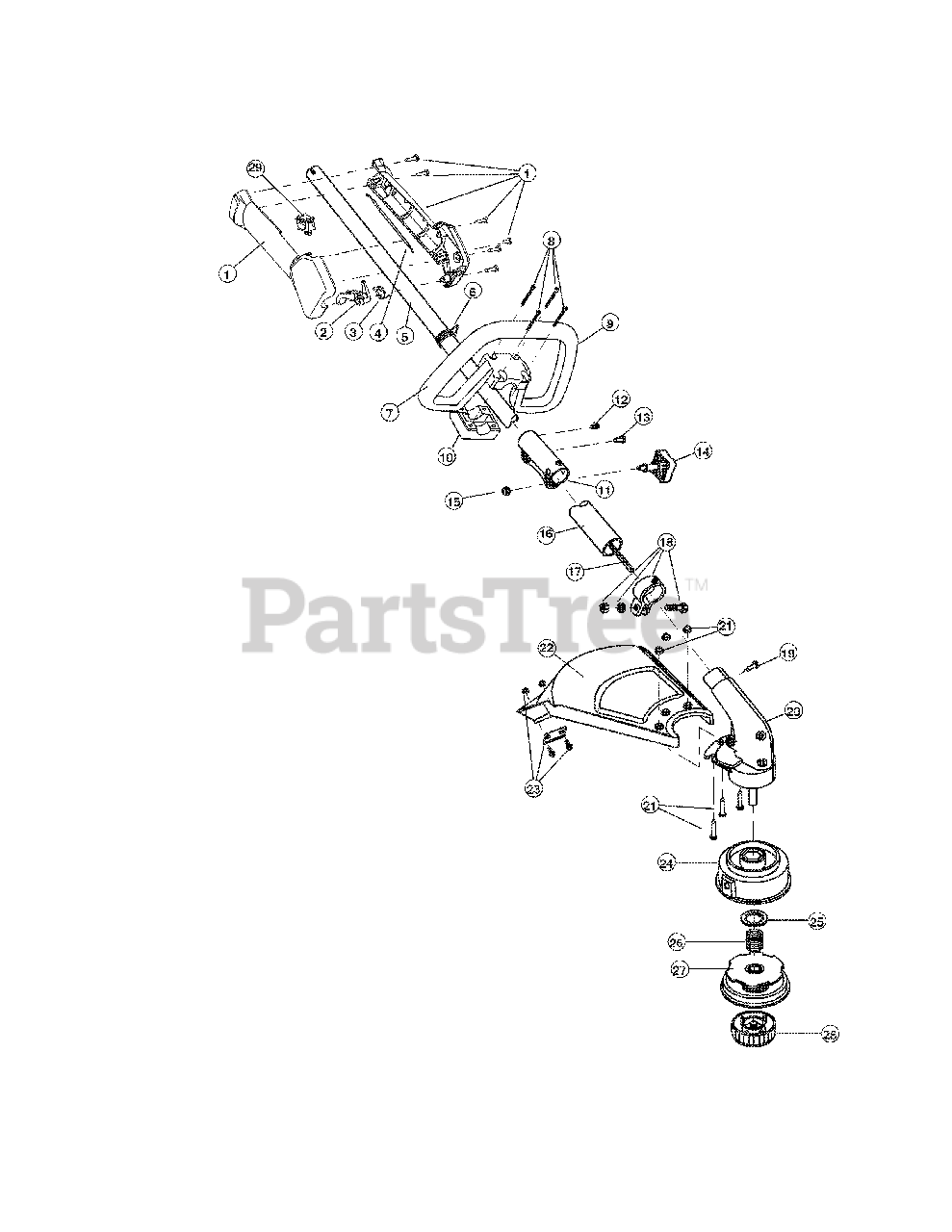

Boom and Trimmer Parts Parts Diagram

  • Title

1

Troy-Bilt 753-04829

Throttle Housing Assembly (includes 2 & 3)

$7.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-04119

Throttle Trigger

$7.99

$

In Stock, Qty 17

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$8.49

$

In Stock, Qty 5

0

4

Troy-Bilt 753-04405

Throttle Cable Assembly

$8.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 753-04344

Upper Drive Shaft Housing Assembly

$90.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 791-610327

Harness Clip

$34.99

$

Usually ships in 3-6 days

0

7

MTD 791-180869

Deluxe D-Handle Assembly (includes 8-10)

$

$

Not available

8

Troy-Bilt 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

Troy-Bilt 753-1190

Split Boom Coupler (includes 12-15)

$24.99

$

In Stock, Qty 11

0

12

Troy-Bilt 791-182057

Screw

$4.99

$

In Stock, Qty 17

0

13

Troy-Bilt 791-181617

Bolt

$5.99

$

In Stock, Qty 10

0

14

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

16

Troy-Bilt 753-1212

Lower Drive Shaft Housing Assembly
(Superseded to 753-04089)

$49.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181166

Lower Flexible Drive Shaft

$30.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 791-153597

Lower Clamp Assembly (includes 19)

$

$

Not available

19

Troy-Bilt 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

20

Troy-Bilt 791-180549

Gear Box Assembly

$

$

Not available

21

Troy-Bilt 791-180547

Shield Mounting Hardware

$

$

Not available

22

MTD 791-180548

Shield Assembly (includes 23)

$

$

Not available

23

Troy-Bilt 791-682061

Blade Assembly

$15.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 791-153619

Outer Spool Assembly (includes 25)

$29.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 791-610660

Retaining

$5.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 791-610317B

Spring

$11.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 753-1155

Inner Reel

$24.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 791-153066B

Bump Head Knob Assembly

$14.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 791-182405

Switch

$11.99

$

In Stock, Qty 9

0

Troy-Bilt 791-180120

Replacement Line, 0.095 Diameter (NOT SHOWN)
(Superseded to 953-1156)

$33.99

$

In Stock, only 2 left!

0

Troy-Bilt 753-1156

Reel and Line Assembly (NOT SHOWN)
(Superseded to 953-1156)

$33.99

$

In Stock, only 2 left!

0

Troy-Bilt 791-682075B

Shoulder Strap Assembly (NOT SHOWN)

$41.99

$

Usually ships in 3-6 days

0
