TB 70 SS (41BDT70C711) - Troy-Bilt Bronco String Trimmer Boom and Trimmer 1 Parts Diagram

Bronco String Trimmer

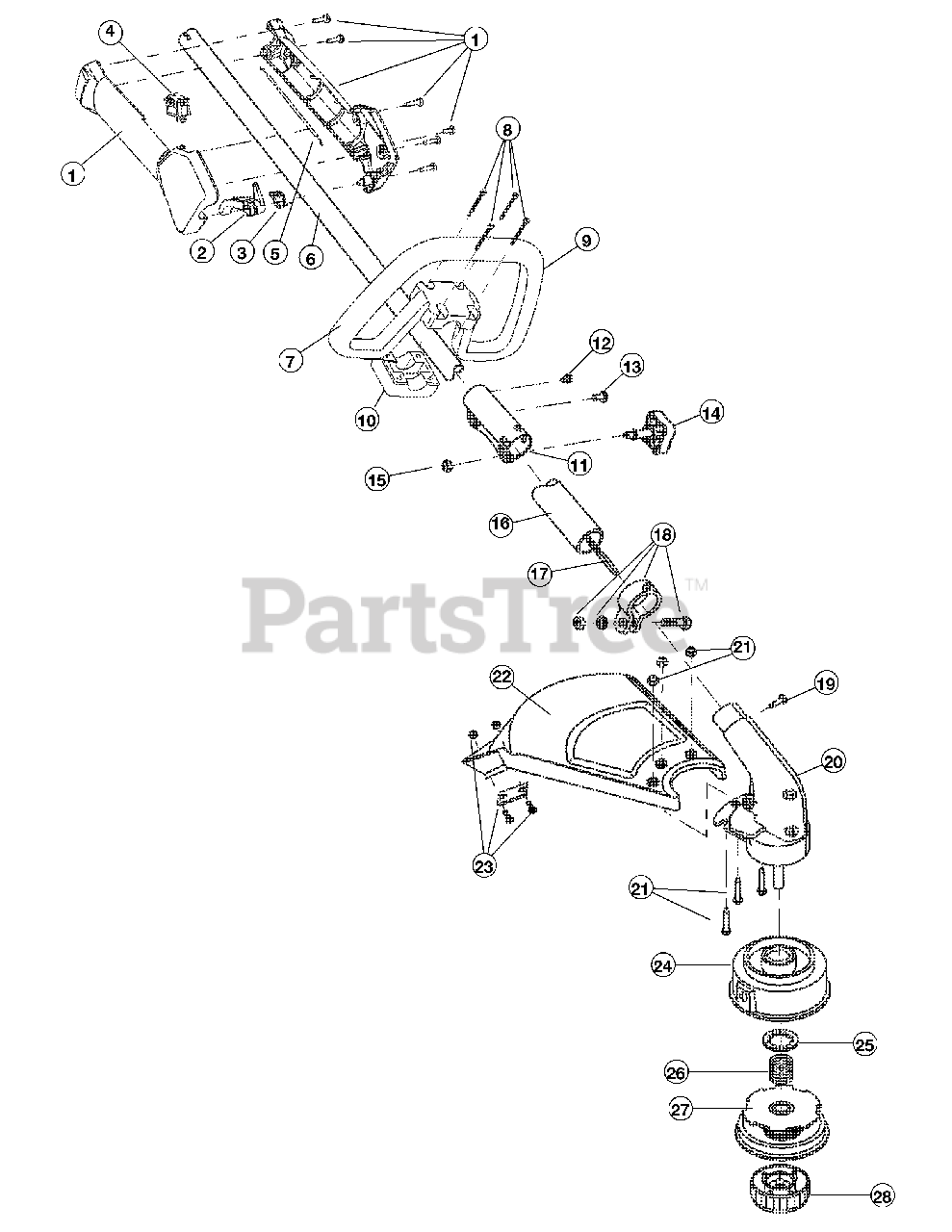

Boom and Trimmer 1 Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (includes 2-4)

$19.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 15

0

4

Troy-Bilt 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 753-04405

Throttle Cable Assembly

$7.49

$

In Stock, only 1 left!

0

6

Troy-Bilt 753-04344

Upper Drive Shaft Housing Assembly

$79.99

$

In Stock, Qty 8

0

7

MTD 791-180869

Deluxe D-Handle Assembly (includes 8-10)

$

$

Not available

8

Troy-Bilt 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

Troy-Bilt 753-1190

Split Boom Coupler (includes 12-15)

$21.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

13

Troy-Bilt 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

14

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

16

Troy-Bilt 753-1212

Lower Drive Shaft Housing Assembly
(Superseded to 753-04089)

$49.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181166

Lower Flexible Drive Shaft

$28.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 791-153597

Lower Clamp Assembly (includes 19)

$15.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

20

Troy-Bilt 791-180549

Gear Box Assembly

$

$

Not available

21

Troy-Bilt 791-180547

Shield Mounting Hardware

$

$

Not available

22

MTD 791-180548

Shield Assembly (includes 23)

$

$

Not available

23

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

24

Troy-Bilt 791-153619

Outer Spool Assembly (includes 25)

$26.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 791-610660

Retaining

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 753-1155

Inner Reel

$21.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

Troy-Bilt 791-180120

Replacement Line, 0.095 Diameter (Optional Accessories)
(Superseded to 953-1156)

$31.99

$

In Stock, Qty 7

0

Troy-Bilt 753-1156

Reel and Line Assembly (Optional Accessories)
(Superseded to 953-1156)

$31.99

$

In Stock, Qty 7

0
