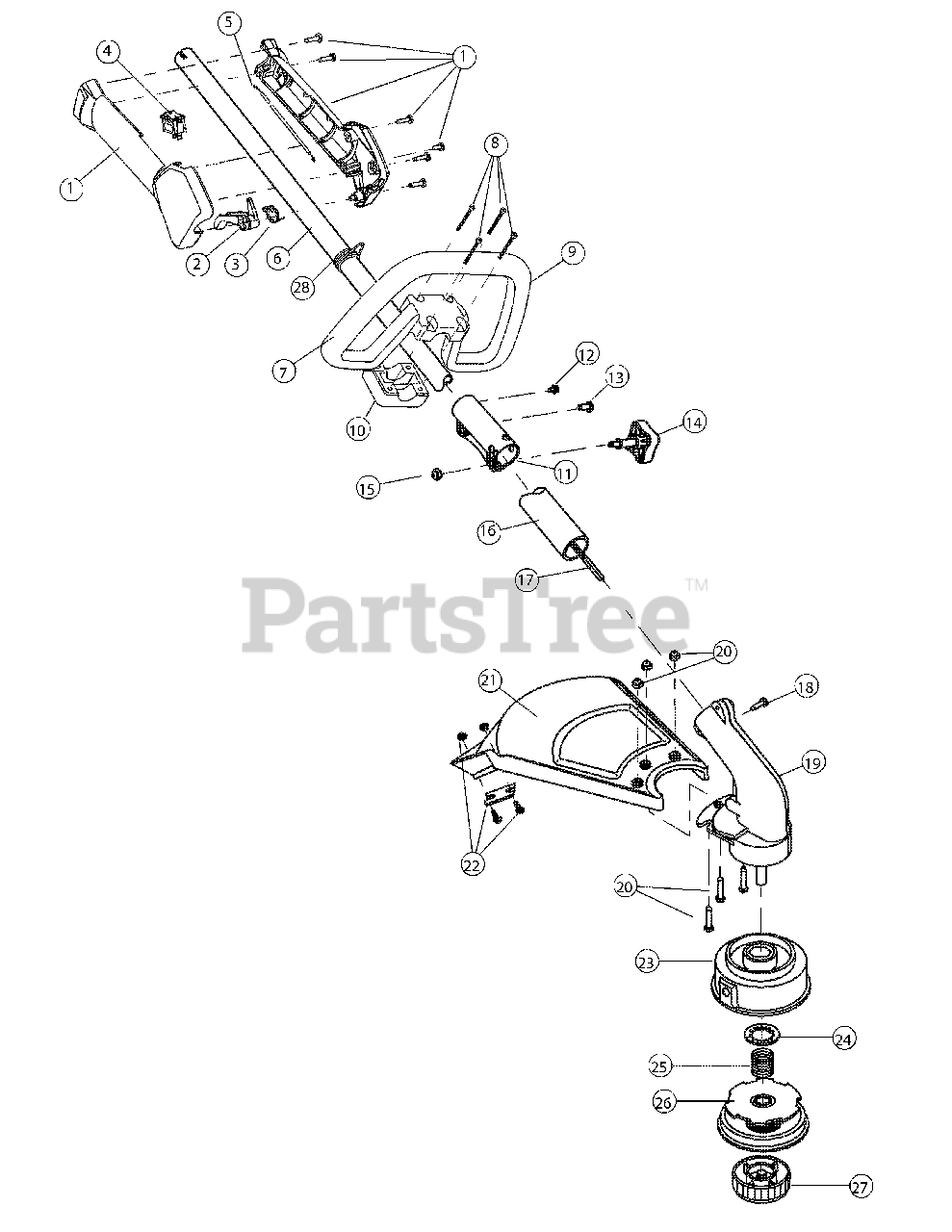

TB 70 SS (41CDT70C966) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly

Note: (Incl. Ref No. 2-4)

$21.99

$

In Stock, Qty 18

0

2

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, Qty 14

0

4

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 746-04085A

Throttle Cable Assembly

$10.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 753-04344

Upper Drive Shaft Housing Assembly

$85.99

$

In Stock, Qty 8

0

7

MTD 791-180869

Deluxe D-Handle Assembly

Note: (Incl. Ref No. 8-10)

$

$

Not available

8

Troy-Bilt 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

Troy-Bilt 753-1190

Split Boom Coupler

Note: (Incl. Ref No. 12-15)

$23.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 11

0

13

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 13

0

14

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 6

0

16

Troy-Bilt 753-04089

Lower Drive Shaft Housing Assembly

$49.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-05182

Lower Flexible Drive Shaft

$31.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 10

0

19

Troy-Bilt 753-05183

Gear Box Assembly

Note: (Incl. Ref No. 23-27)

$

$

Not available

20

Troy-Bilt 791-180547

Shield Mounting Hardware

$

$

Not available

21

MTD 791-180548

Shield Assembly

Note: (Incl. Ref No. 22)

$

$

Not available

22

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

23

Troy-Bilt 791-153619

Outer Spool Assembly

Note: (Incl. Ref No. 24)

$27.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 791-610660

Retaining

$4.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 953-1156

Reel and Line Assembly

Note: Not Shown, Optional Accessories

$31.99

$

In Stock, Qty 7

0

Troy-Bilt 791-682075B

Shoulder Strap

Note: Not Shown, Optional Accessories

$38.99

$

Usually ships in 3-6 days

0
