TB 75 SS (41BDT75C063) - Troy-Bilt String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

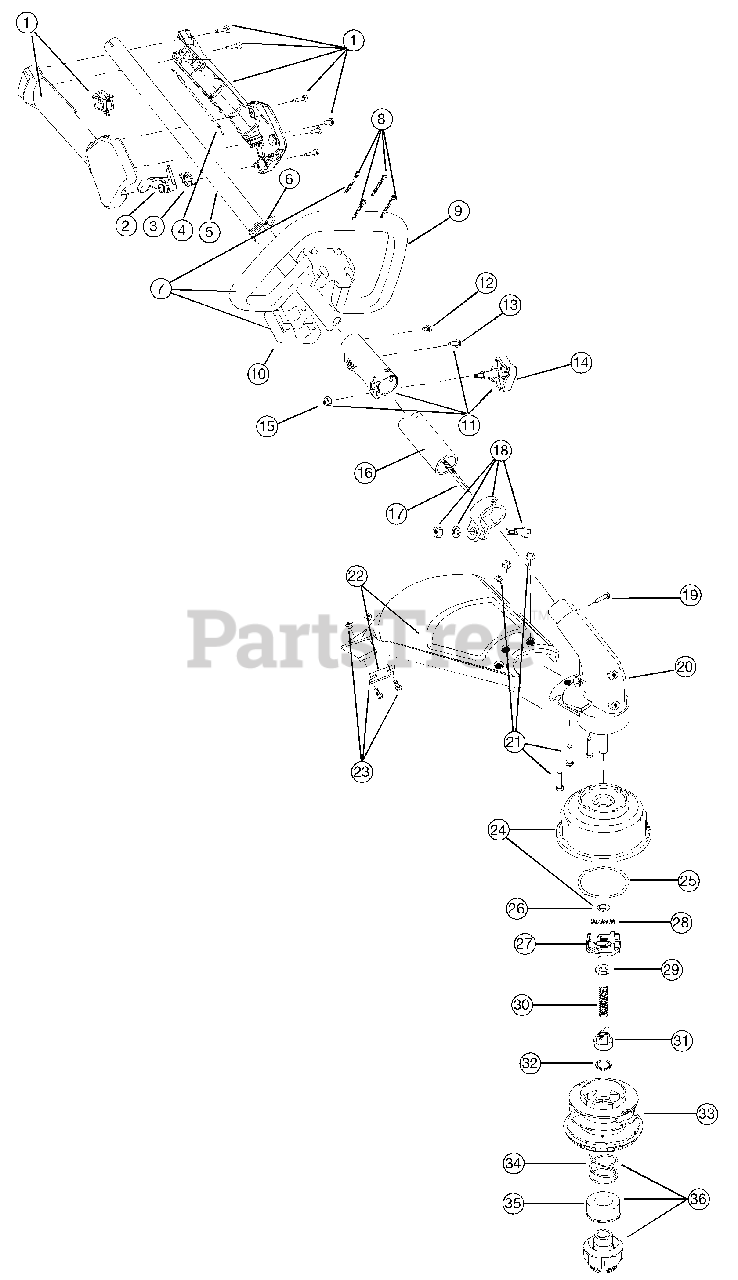

Boom And Trimmer Parts Parts Diagram

  • Title

1

Troy-Bilt 753-1211

Throttle Housing and Trigger Assembly (includes 2 & 3)
(Superseded to 753-04234)

$22.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 791-00042

Throttle Trigger
(Superseded to 753-06754)

$7.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$8.49

$

In Stock, only 2 left!

0

4

Troy-Bilt 791-182877

Throttle Cable Assembly

$17.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$99.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 791-610327

Harness Clip

$34.99

$

Usually ships in 3-6 days

0

7

MTD 791-180869

Deluxe D-Handle Assembly (includes 8-10)

$

$

Not available

8

Troy-Bilt 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

Troy-Bilt 753-1190

EZ-Link(TM) Coupler (includes 12-15)

$24.99

$

In Stock, Qty 7

0

12

Troy-Bilt 791-182057

Screw

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 791-181617

Bolt

$5.99

$

In Stock, Qty 8

0

14

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-181886

Knob Retaining Bolt

$3.49

$

In Stock, only 4 left!

0

16

Troy-Bilt 753-1212

Lower Drive Shaft Housing Assembly
(Superseded to 753-04089)

$49.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181166

Lower Flexible Drive Shaft

$30.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 791-153597

Lower Clamp Assembly (includes 19)

$

$

Not available

19

Troy-Bilt 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

20

Troy-Bilt 753-04309

Gear Box Assembly (includes 18, 24-36)

$

$

Not available

21

Troy-Bilt 791-180547

Shield Mounting Hardware

$

$

Not available

22

Troy-Bilt 753-04248

Shield and Blade Assembly

$

$

Currently unavailable

23

Troy-Bilt 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 791-181457

Outer Spool and Eyelet Assembly w/Retainer

$42.99

$

In Stock, Qty 8

0

25

Troy-Bilt 791-181458

Retainer

$4.99

$

In Stock, Qty 12

0

26

Troy-Bilt 791-181561

Thrust Washer

$4.99

$

In Stock, only 4 left!

0

27

Troy-Bilt 753-04257

Slider

$7.99

$

In Stock, Qty 14

0

28

Troy-Bilt 791-181459

Small Spring

$

$

Not available

29

Troy-Bilt 791-181532

E-Clip

$4.99

$

In Stock, Qty 14

0

30

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, only 3 left!

0

31

Troy-Bilt 791-181462

Plunger

$

$

Not available

32

Troy-Bilt 791-181463

C-Clip

$

$

Not available

33

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$34.99

$

In Stock, Qty 8

0

34

Troy-Bilt 791-181465

Large Spring

$

$

Currently unavailable

35

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

36

Troy-Bilt 791-181468

Bump Head Knob Assembly w/Spring & Foam Seal
(Superseded to 791-181468B)

$

$

Not available

Troy-Bilt 753-1156

Reel and Line Assembly Optional Accessory; Item not shown
(Superseded to 953-1156)

$33.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-682075B

Shoulder Strap Assembly Optional Accessory; Item not shown

$41.99

$

Usually ships in 3-6 days

0
