TB 90 BC (41BDT90C966) - Troy-Bilt String Trimmer Boom & Trimmer Parts Diagram

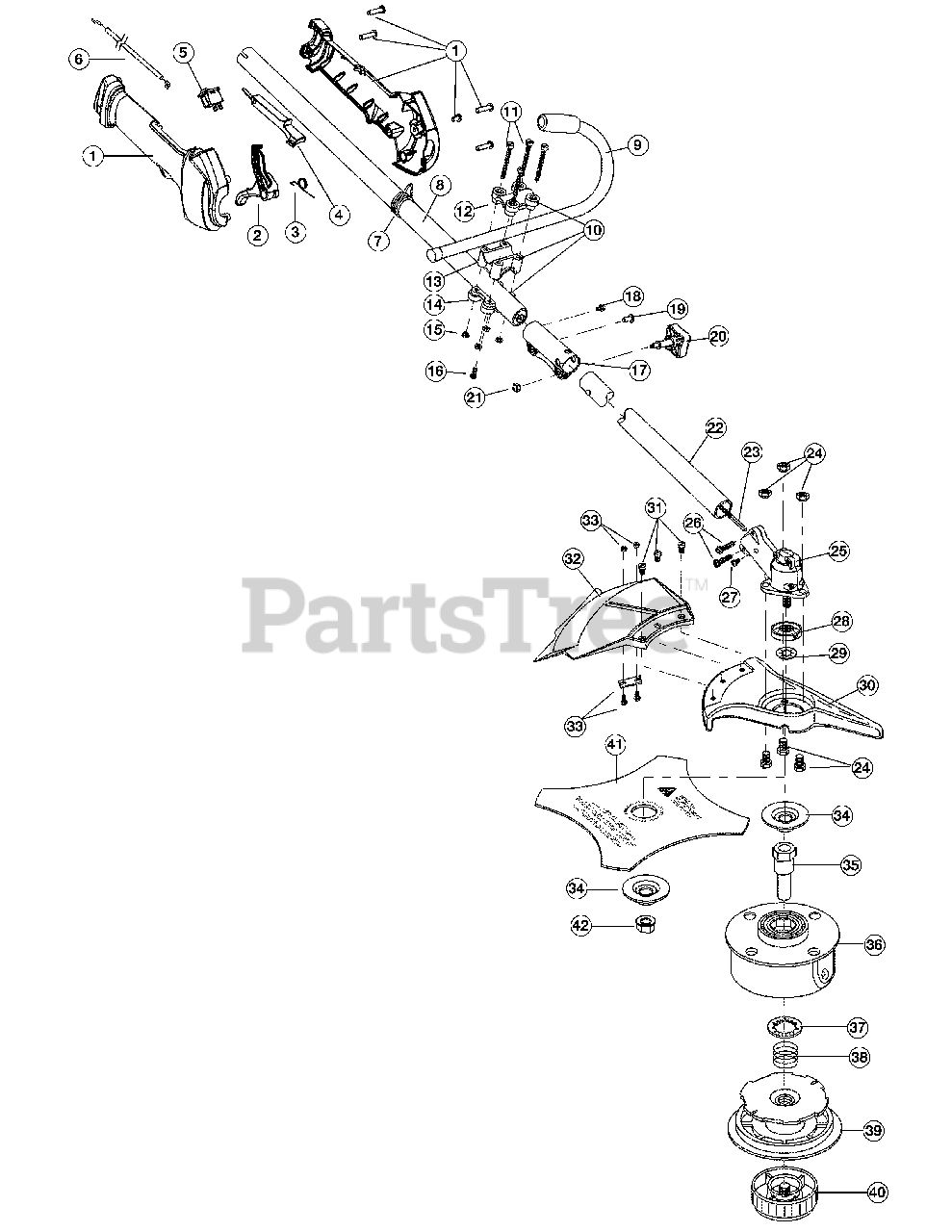

String Trimmer

Boom & Trimmer Parts Diagram

  • Title

1

Troy-Bilt 753-05192

Throttle Housing Assembly (includes 2-5)

$

$

Not available

2

Troy-Bilt 753-04991

Throttle Trigger
(Superseded to 731-04970B-10)

$8.99

$

In Stock, Qty 10

0

3

Troy-Bilt 753-05007

Throttle Trigger Spring

$4.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 753-05171

Throttle Trigger Lock-Out
(Superseded to 731-04971C-10)

$4.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-05172

Throttle Cable Assembly
(Superseded to 946-04262A)

$

$

Not available

7

Troy-Bilt 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$89.99

$

In Stock, Qty 7

0

9

MTD 791-181099

J-Handle Assembly

$

$

Not available

10

Troy-Bilt 791-683295

Handle Bracket Assembly (includes 11-16)

$42.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 753-1190

Split Boom Coupler (includes 18-21)

$21.99

$

In Stock, only 4 left!

0

18

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 14

0

19

Troy-Bilt 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

20

Troy-Bilt 791-181981

Adjustment Knob (includes 21)
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

21

Troy-Bilt 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

22

Troy-Bilt 791-182541

Lower Drive Shaft Housing Assembly

$86.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 791-613300

Lower Flexible Drive Shaft

$82.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 791-182200

Shield Mount Screw Assembly

$6.49

$

In Stock, only 2 left!

0

25

Troy-Bilt 791-182193

2 piece Gearbox Assembly (includes 26-29)

$92.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$6.99

$

In Stock, Qty 13

0

27

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 791-182196

Blade Driver

$20.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 753-04348

Palnut

$6.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 791-147492

Blade Shield/Shield Mount

$118.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 791-683304

Shield Mounting Screw

$10.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 753-1191

Shield Assembly (includes 33)

$60.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

34

Troy-Bilt 791-147490

Retaining Washer

$10.99

$

In Stock, Qty 7

0

35

Troy-Bilt 791-612483

Spool Shaft

$51.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 791-683301

Outer Spool Assembly (includes 37)

$45.99

$

In Stock, Qty 9

0

37

Troy-Bilt 791-612026

Retainer
(Superseded to 1772)

$6.49

$

In Stock, Qty 17

0

38

Troy-Bilt 791-610636B

Spring

$9.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 791-147495

Inner Reel

$24.99

$

In Stock, Qty 14

0

40

Troy-Bilt 791-180814B

Bump Head Knob Assembly

$19.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 791-145873B

4-Tooth Blade

$42.99

$

In Stock, Qty 9

0

42

Troy-Bilt 791-181699

Nut
(Superseded to 712-04105)

$9.99

$

In Stock, only 3 left!

0

Troy-Bilt 791-180014B

Blade Retaining Kit (includes 34 & 42)

Note: Items Not Shown

$12.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-613226

Locking Rod Tool

Note: Items Not Shown

$13.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-682075B

Shoulder Harness

Note: Items Not Shown

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04216

Replacement Line, 0.105 Diameter

Note: Items Not Shown, Optional

$

$

Not available

Troy-Bilt 753-1224

Reel and Line Assembly

Note: Items Not Shown, Optional

$30.99

$

In Stock, only 2 left!

0

Troy-Bilt 753-1161

Bump Head Assembly (includes 35-40)
(Superseded to 791-147498)

Note: Items Not Shown, Optional

$109.99

$

In Stock, only 2 left!

0
