TB WC33 XP (12AE76JU011) - Troy-Bilt 33" Walk-Behind Mower (2016) Frame Assembly Parts Diagram

33" Walk-Behind Mower

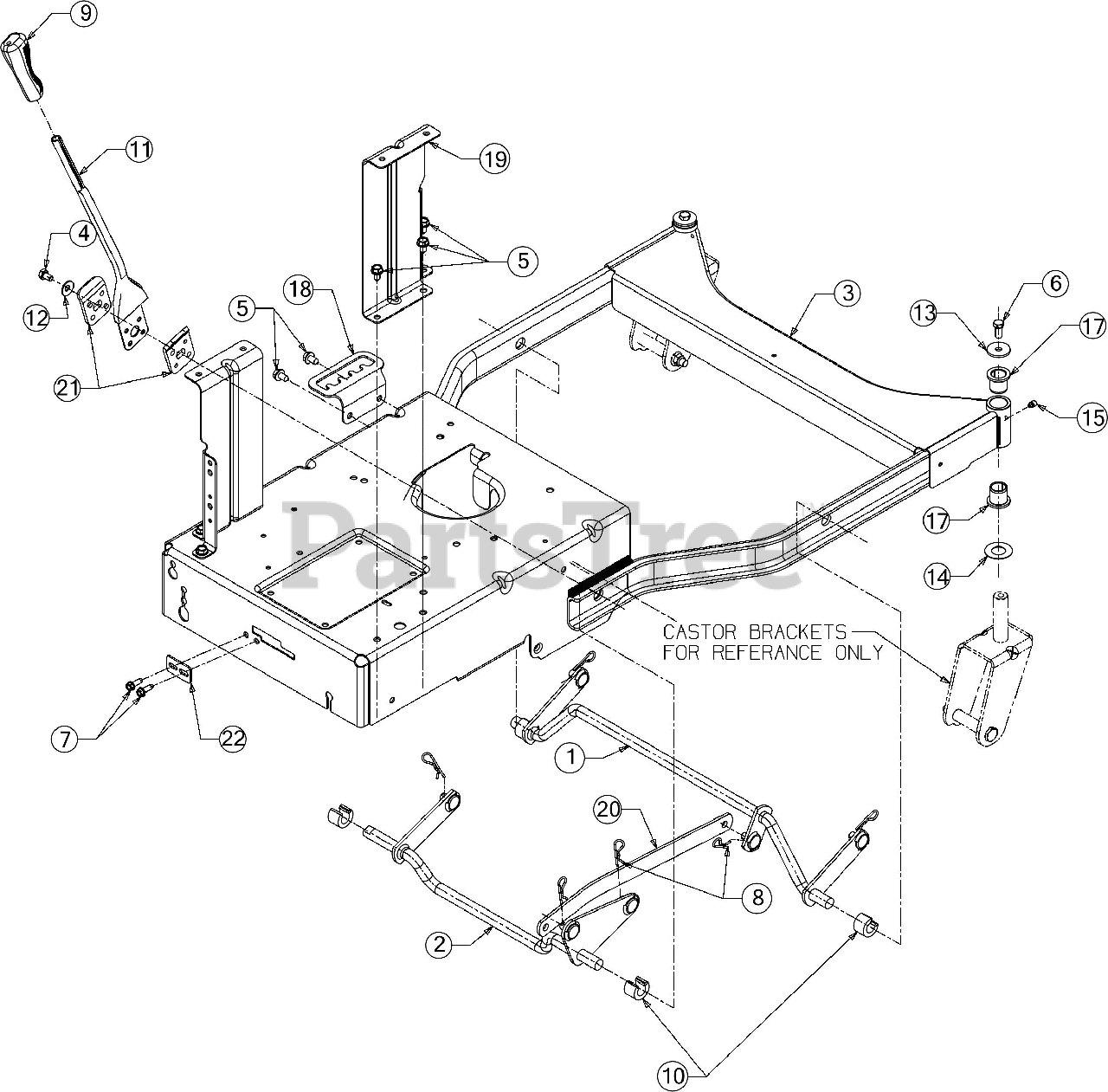

Frame Assembly Parts Diagram

  • Title

1

Troy-Bilt 687-02265-0637

FRONT LIFT ASSEMBLY

$59.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 687-02419-0637

DECK LIFT ASSEMBLY

$68.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 687-02591B-4033

FRAME ASSEMBLY

$540.99

$

Usually ships in 3-6 days

0

3a

Troy-Bilt 787-01996-4033

FRAME BRACKET

$

$

Currently unavailable

4

Troy-Bilt 710-04312

SCREW 5/16-18 x .50

$7.49

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-0604A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0627

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 720-04189

GRIP-RED

$14.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 731-05791

SNAP SPACER

$5.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 732-04418C

DECK HEIGHT LEVER

$45.99

$

In Stock, Qty 11

0

12

Troy-Bilt 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0343

WASHER-5/16 x 1.25X 1.27

$4.49

$

In Stock, Qty 13

0

14

Troy-Bilt 936-0351

THRUST WASHER
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 937-3000

GREASE FITTING

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 737-3007

GREASE-#251 EP (NOT SERVICEABLE)

$

$

Currently unavailable

17

Troy-Bilt 741-0660A

FLANGE BEARING .760 ID

$3.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 787-01496-4033

HEIGHT ADJUSTMENT BRACKET

$19.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 787-01507B-4033

FUEL TANK BRACKET

$20.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 787-01510-0637

LIFT LINK

$39.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 787-01521-0637

HEIGHT LEVER BRACKET
(Superseded to 787-06323-0637)

$9.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 787-02009

SHIFT PLATE

$9.99

$

Usually ships in 3-6 days

0
