TB WC33 XP (12AE76JU011) - Troy-Bilt 33" Walk-Behind Mower (2017) Handle Parts Diagram

33" Walk-Behind Mower

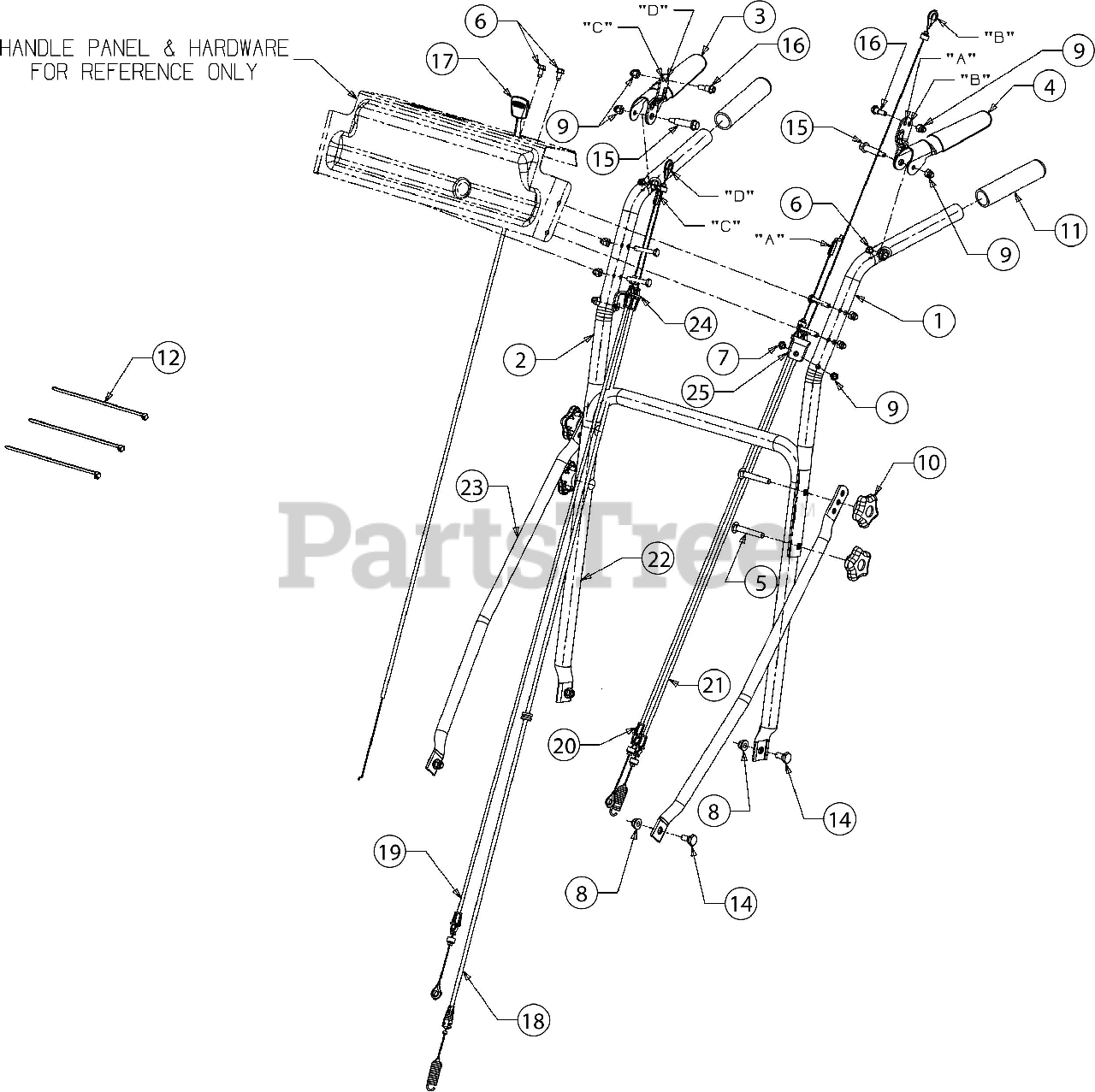

Handle Parts Diagram

  • Title

1

Troy-Bilt 649-05013B-0637

UPPER HANDLE ASSEMBLY (LH)

$76.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 649-05014B-0637

UPPER HANDLE ASSEMBLY (RH)

$76.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 687-02614C

LEVER ASSEMBLY (RH) (RED)
(Superseded to 687P02614C)

$19.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 687-02615C

LEVER ASSEMBLY (LH) (RED)
(Superseded to 687P02615C)

$19.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-0572

SCRE W5/16-18 x 2.25 GR5

$4.99

$

In Stock, Qty 8

0

6

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0606

SCREW 1/4-20 x 1.50 GR.5

$5.99

$

In Stock, Qty 7

0

8

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 912-0442

HEX ACORN NUT
(Superseded to 712-0442)

$

$

Not available

10

Troy-Bilt 720-04072A

STAR KNOB 5/16-18

$7.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 720-04190

GRIP-RED

$11.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 938-0140

SHOULDER SCREW .437
(Superseded to 738-0140)

$

$

Not available

15

Troy-Bilt 738-05041A

SHOULDER BOLT .375X1.285:1/4-20

$6.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 738-05149A

SHOULDER SCREW .342X.335X1/4-20

$6.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 946-04604

THROTTLE/CHOKE CABLE 38" x 1.1
(Superseded to 946-04604A)

$38.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 946-05073

BLADE CONTROL CABLE

$41.99

$

In Stock, Qty 9

0

19

Troy-Bilt 946-05076

TRANSMISSION BRAKE CABLE (RH)
(Superseded to 946-05076A)

$38.99

$

In Stock, Qty 9

0

20

Troy-Bilt 946-05077

TRANSMISSION BRAKE CABLE (LH)
(Superseded to 946-05077A)

$38.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 946-05149

WHEEL CLUTCH CABLE

$58.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 749-04330-0637

LOWER HANDLE

$90.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 749-04333-0637

HANDLE ADJUSTMENT BRACE

$49.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 787-01490A-0637

CABLE BRACKET MOUNTING (RH)

$10.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 787-01491A-0637

CABLE BRACKET MOUNTING (LH)

$20.99

$

Usually ships in 3-6 days

0
