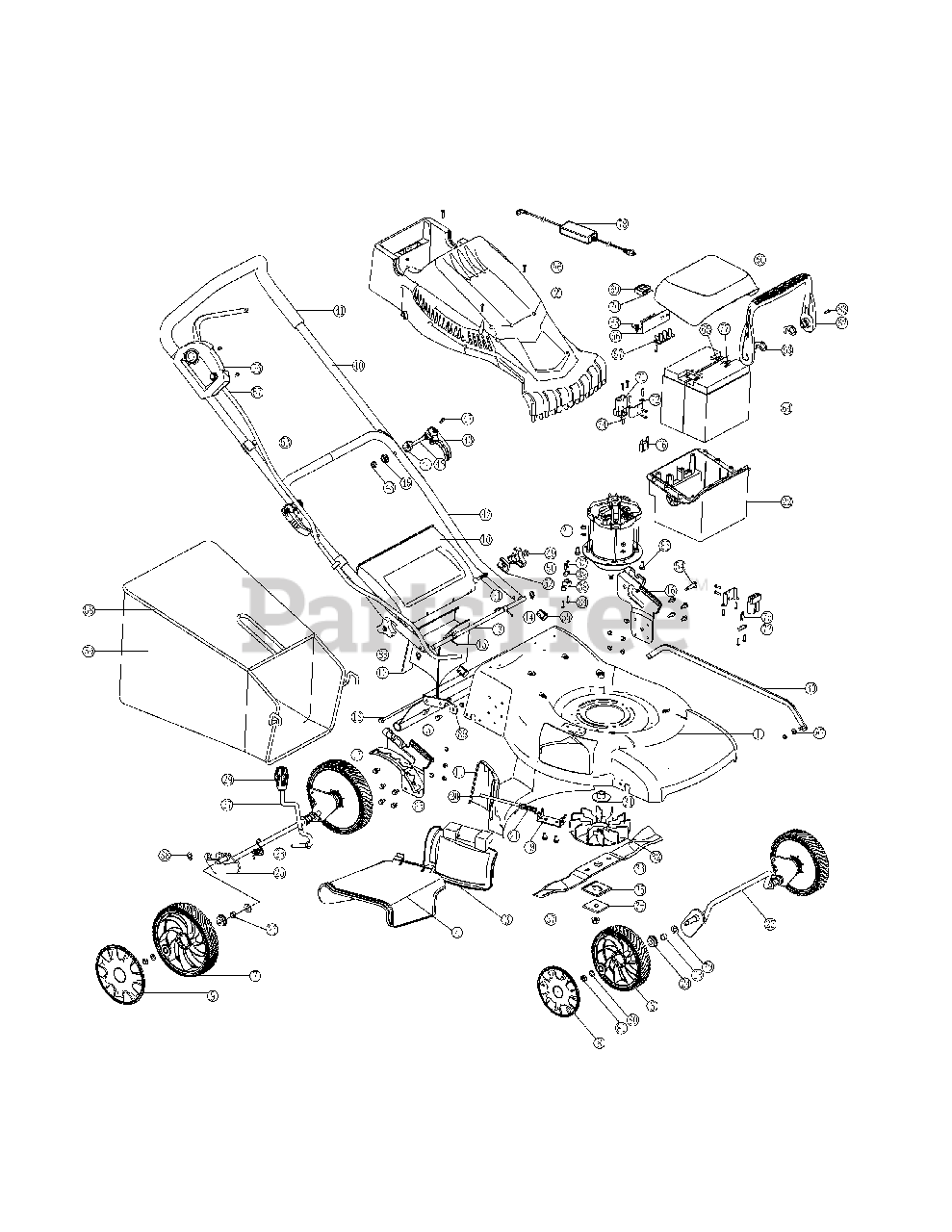

TBE 25 (18A-212B766) - Troy-Bilt Walk-Behind Mower, Electric (2011) General Assembly Parts Diagram

Walk-Behind Mower, Electric

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 787-01839

Deck
(Superseded to 787-01839A)

$

$

Not available

2

Troy-Bilt 731-07671

Shroud

$40.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-07619

Side Discharge Door

$8.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 731-07620

Side Discharge Chute

$15.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 731-07621

Trail Shield

$29.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 734-04553

Front Wheel

$25.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 734-04554

Rear Wheel

$

$

Not available

8

Troy-Bilt 731-07512

Wheel Cap

$4.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 721-04378

Seal Line

$6.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731-07622

Rear Door

$20.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 731-07623

Rear Baffle

$16.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 731-07624

Mulching Plug

$21.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 711-05358

Rear Shaft

$7.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 732-04733

Spring

$3.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 732-04734

Spring

$3.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 787-01824A

Left Bracket

$31.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 787-01825A

Right Bracket

$35.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 711-05325

Trail Shield Pin

$4.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 787-01813

Side Discharge Bracket

$3.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 711-05326

Side Discharge Pin

$4.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 732-04713

Spring

$3.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 611-04181

Front Shaft Assembly

$57.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 741-04464

Front Shaft Bushing

$3.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 741-04474

Bearing

$7.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 611-04182

Rear Shaft Assembly

$41.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 741-04465

Rear Shaft Bushing
(Superseded to 941-04465)

$6.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 732-04735

Handle Adjust

$16.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 732-04715

Handle Adjust Spring

$3.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 720-04143

Handle Adjust Knob

$7.49

$

Usually ships in 3-6 days

0

30

Troy-Bilt 787-01826

Link Bar

$20.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 724-04095

Motor
(Superseded to 924-04095)

$223.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 731-07515

Fan

$16.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 942-04321

Blade

$20.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 736-04486

Flange

$13.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 731-07598

Washer

$3.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 736-04487

Washer

$4.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 712-04237

Blade Nut

$3.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 731-07672

Support

$3.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 731-07673

Strain Relief

$4.49

$

Usually ships in 3-6 days

0

40

Troy-Bilt 749-04670A

Upper Handle

$29.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 731-07522

Handle Grip

$14.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 749-04688A

Lower Handle

$33.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 720-04145

Quick Release

$3.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 736-04488

Washer

$4.49

$

Usually ships in 3-6 days

0

45

Troy-Bilt 720-04146

Quick Release Knob

$4.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 710-05151

M8 Screw

$3.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 715-04107

Quick Release Pin

$3.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 712-04257

M8 Nut

$3.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 712-04250

M6 Lock Nut

$

$

Not available

50

Troy-Bilt 720-04147

Wing Knob

$4.49

$

Usually ships in 3-6 days

0

51

Troy-Bilt 710-05082

Screw

$3.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 736-04489

Washer

$3.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 731-07524

Cord Clip

$3.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 714-04088

Pin

$3.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 731-07513

Cap

$3.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 625-04130

Switch Box
(Superseded to 625-04129)

$45.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 725-05156

Cord

$38.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 747-05304

Clamp

$41.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 764-04096

Grassbag

$55.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 731-07674

Battery Pack Cover

$22.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 731-07675

Battery Pack Housing

$3.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 731-07676

Handle

$25.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 787-01840

Hook

$15.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 725-05157

Battery

$429.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 725-05158

Connector

$3.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 725-05159

PCB

$34.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 725-05160

PCB Support

$3.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 725-05161

Connector
(Superseded to 725P05161)

$3.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 725-05162

Safety Key
(Superseded to 925-05162)

$4.49

$

Usually ships in 3-6 days

0

70

Troy-Bilt 725-05163

Key Connector

$4.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 725-05164

SA50 Connector

$22.99

$

Usually ships in 3-6 days

0

72

Troy-Bilt 725-05165

Supporter

$13.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 731-07678

Supporter

$3.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 725-05170

Connector

$3.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 725-05169

Connector

$3.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 725-05167

Board

$22.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 725-05166

Charger

$

$

Not available

79

Troy-Bilt 736-04507

Washer

$

$

Not available

80

Troy-Bilt 736-04506

8mm Washer

$3.49

$

Usually ships in 3-6 days

0

81

Troy-Bilt 712-04258

M8 Nut

$3.49

$

Usually ships in 3-6 days

0

82

Troy-Bilt 710-05156

ST4.2x16 Screw

$3.49

$

Usually ships in 3-6 days

0

83

Troy-Bilt 710-05155

ST4.2x25 Screw

$3.49

$

Usually ships in 3-6 days

0

84

Troy-Bilt 710-05154

ST4.8x16 Screw

$3.49

$

Usually ships in 3-6 days

0

85

Troy-Bilt 710-05153

M6x12 Screw

$3.49

$

Usually ships in 3-6 days

0

86

Troy-Bilt 710-05152

M5 x 12 Screw

$

$

Not available

87

Troy-Bilt 736-04508

Washer

$

$

Not available

88

Troy-Bilt 716-04169

10mm Lock Ring

$3.99

$

Usually ships in 3-6 days

0

89

Troy-Bilt 787-01841

Support

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 725-05089

Battery Assembly, Replaceable

Note: Not shown

$413.99

$

Usually ships in 3-6 days
