TBE 304 (25B-304-766) - Troy-Bilt Edger (2021) General Assembly Parts Diagram

Edger

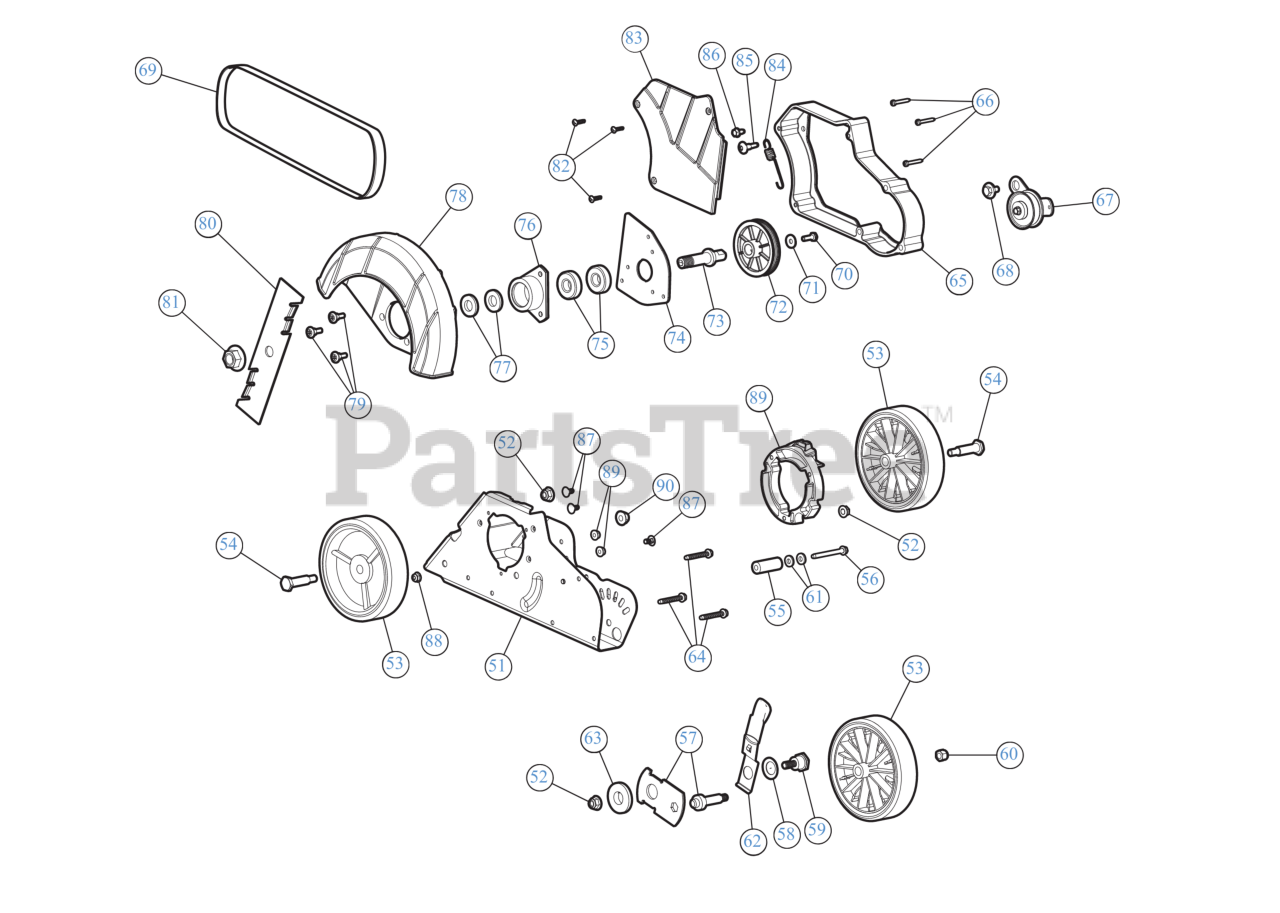

General Assembly Parts Diagram

  • Title

51

Troy-Bilt 753-06593

EDGER FRAME

$43.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 734-04261

WHEEL 5-1.5 GRAY

$21.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 938-0373

SHOULDER SCREW

$9.49

$

In Stock, Qty 20+

0

55

Troy-Bilt 750-04783

SPACER

$3.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 710-1206

SCREW 1/4-20 x 2.375

$7.49

$

In Stock, Qty 9

0

57

Troy-Bilt 687-02582S

PIVOT ARM

$3.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 736-0741

BELL WASHER

$4.99

$

In Stock, only 1 left!

0

59

Troy-Bilt 738-1172

SHOULDER SCREW .75 X.50 X3/8-16

$5.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 712-0130

HEX NUT INS L-3/8-16

$3.99

$

In Stock, Qty 20+

0

61

Troy-Bilt 750-04929

SPACER

$4.49

$

In Stock, only 4 left!

0

62

Troy-Bilt 687-02051

HEIGHT LEVER ASSEMBLY

$9.49

$

Usually ships in 3-6 days

0

63

Troy-Bilt 741-04242

HEIGHT ADJUSTMENT BEARING

$7.49

$

Usually ships in 3-6 days

0

64

Troy-Bilt 710-1026

SCREW 1/4-20 x 1.750

$6.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 753-06556

SPACER

$3.49

$

Usually ships in 3-6 days

0

66

Troy-Bilt 753-06559

SCREW 8-16X1.25

$2.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 753-05540

IDLER PULLEY ASSEMBLY

$38.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 738-0930

SHOULDER SCREW .560X.165: 5/16-18

$6.99

$

In Stock, only 1 left!

0

69

Troy-Bilt 754-04149

BELT

$30.99

$

In Stock, Qty 20+

0

70

Troy-Bilt 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

71

Troy-Bilt 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 10

0

72

Troy-Bilt 756-04087B

PULLEY

$12.99

$

In Stock, Qty 20+

0

73

Troy-Bilt 753-05543

BLADE SPINDLE

$21.99

$

In Stock, only 3 left!

0

74

Troy-Bilt 787-01505

SPINDLE MOUNT PLATE

$7.49

$

Usually ships in 3-6 days

0

75

Troy-Bilt 741-04547

BALL BEARING

$9.49

$

In Stock, only 1 left!

0

76

Troy-Bilt 718-04012

BEARING CUP

$21.99

$

In Stock, only 3 left!

0

77

Troy-Bilt 736-04088

FLAT WASHER .635 x 1.24 x .181

$4.49

$

In Stock, Qty 11

0

78

Troy-Bilt 731P05064

EDGER BLADE GUARD (W/LABEL)

$27.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 738-0706D

SHOULDER SCREW .375X.280:1/4-14

$4.49

$

In Stock, Qty 8

0

80

Troy-Bilt 781-0080-0637

EDGER BLADE

$8.99

$

In Stock, Qty 20+

0

81

Troy-Bilt 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

82

Troy-Bilt 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

83

Troy-Bilt 731-05822

BELT COVER

$11.99

$

In Stock, only 2 left!

0

84

Troy-Bilt 753-06562

SPRING

$3.49

$

In Stock, Qty 7

0

85

Troy-Bilt 753-06563

BOLT 1/4-20

$2.99

$

Usually ships in 3-6 days

0

86

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

87

Troy-Bilt 710-05177

CARRIAGE BOLT 1/4-20X.50"

$4.99

$

In Stock, Qty 20+

0

88

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

89

Troy-Bilt 753-06566

SPACER

$6.49

$

Usually ships in 3-6 days

0

90

Troy-Bilt 712-04230

NUT

$3.99

$

In Stock, Qty 10

0
