TBE 500 (25A-52MH766) - Troy-Bilt Edger (2022) Frame Parts Diagram

Edger

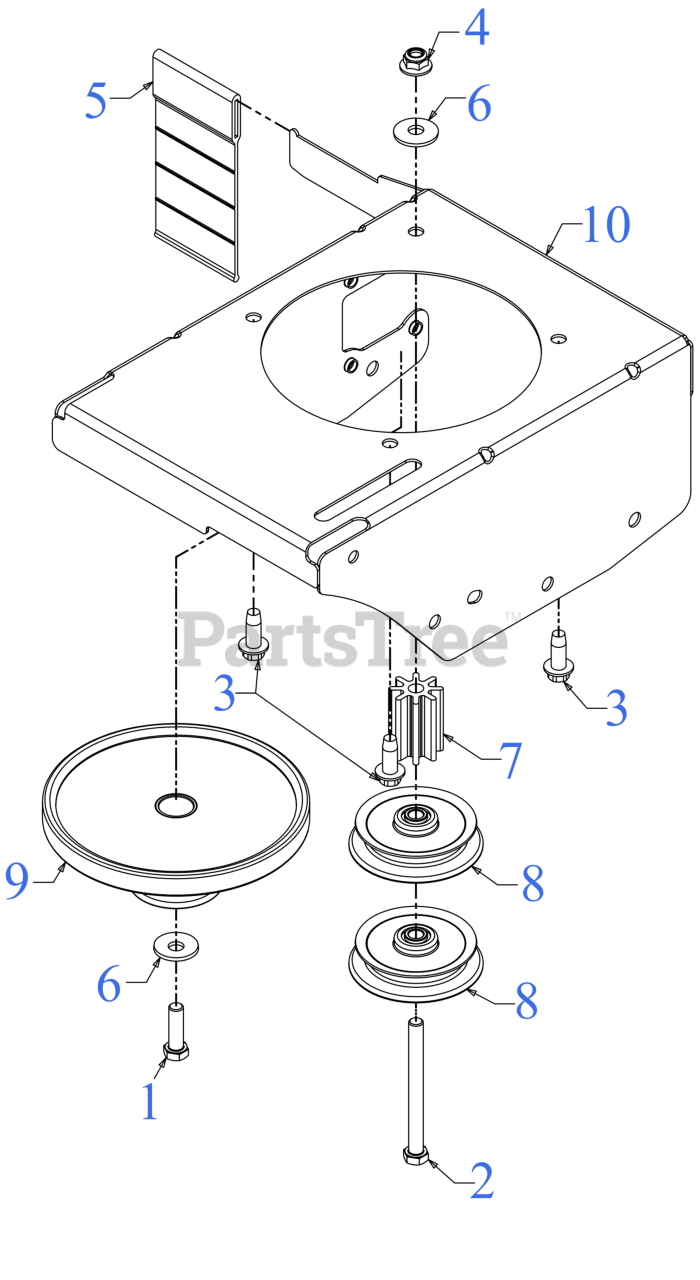

Frame Parts Diagram

  • Title

1

Troy-Bilt 710-0191

SCREW 3/8-24X1.25

$4.99

$

In Stock, Qty 8

0

2

Troy-Bilt 710-0411

HEX SCREW 3/8-16 x 4.00

$8.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, Qty 11

0

4

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 731-05063

EDGER BLADE GUARD

$6.49

$

In Stock, only 4 left!

0

6

Troy-Bilt 736-0452

BELL WASHER

$4.99

$

In Stock, Qty 16

0

7

Troy-Bilt 950-04142

MOUNT SPACER

$14.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 756-04148

FLAT IDLER PULLEY

$41.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 756-1150A

ENGINE PULLEY

$163.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 787-01304

EDGER FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 787-01304-0606

FRAME:EDGER - MAJESTIC ORANGE (0606)

$69.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01304-0638

FRAME:EDGER - MTD/TROY-BILT RED (0638)

$69.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01304-0691

FRAME:EDGER - BLACK JACK (0691)

$69.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01304-0709

FRAME:EDGER - MASTERCRAFT GREEN (0709)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01304-0721

FRAME:EDGER - SEARS RED (0721)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01304-4021

FRAME:EDGER - CUB YELLOW 2 (4021)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01304-4044

FRAME:EDGER - CRAFTSMAN RED (4044)

$79.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0
