TBE 515 (25A-515-966) - Troy-Bilt Edger (2007) Engine Assembly Oct.2007 & After Parts Diagram

Edger

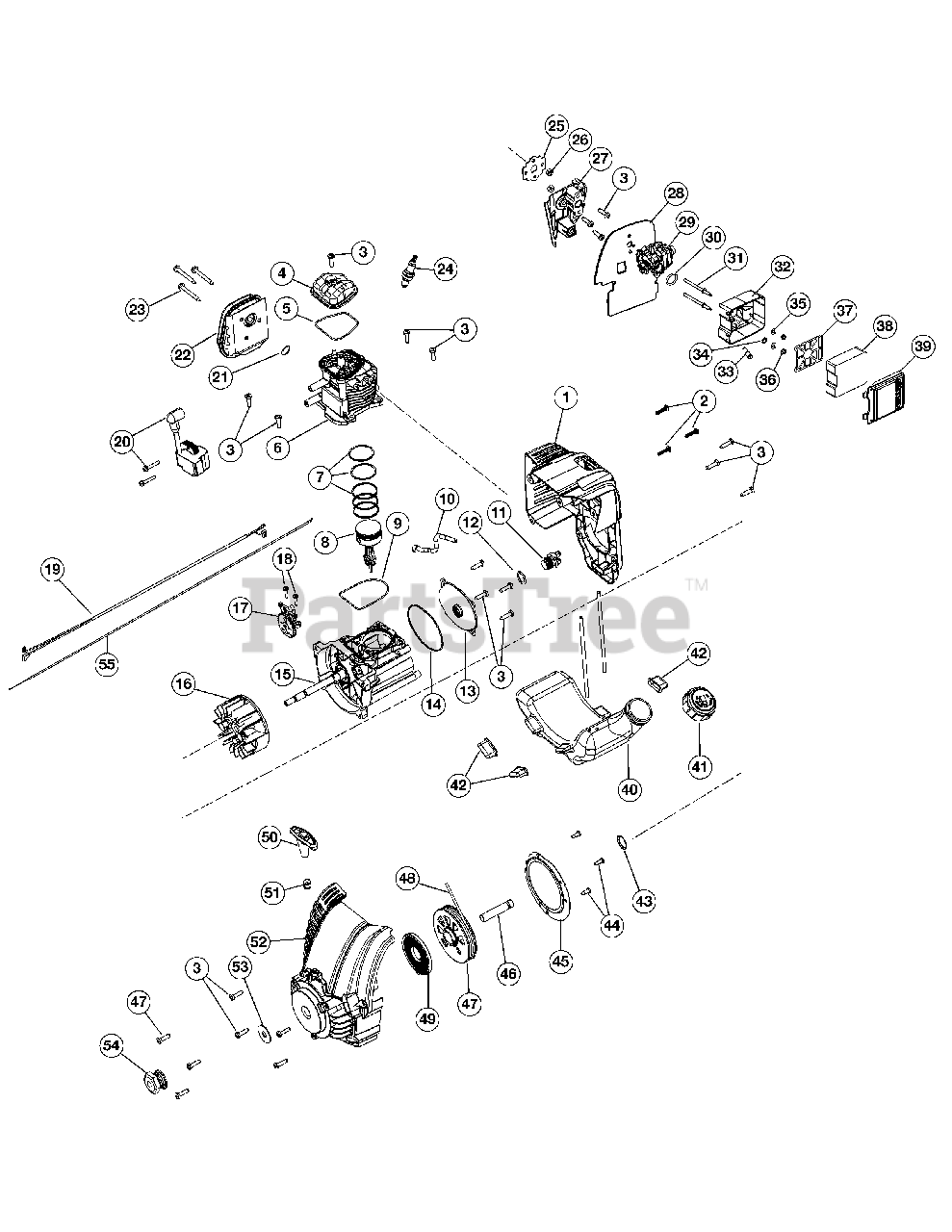

Engine Assembly Oct.2007 & After Parts Diagram

  • Title

1

Troy-Bilt 753-05206

Engine Cover Assembly (includes 2 & 3)

$

$

Not available

2

Troy-Bilt 753-04595

Cover Screw
(Superseded to 710-04194)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 753-05377

Screw
(Superseded to 710-04604)

$3.99

$

In Stock, Qty 12

0

4

Troy-Bilt 753-05209

Rocker Cover

$18.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-05210

Rocker Cover O-Ring
(Superseded to 721-04132)

$9.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-05228

Cylinder Assembly (includes 3, 5 & 9)

$111.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 753-05229

Piston Ring Assembly

$35.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-05230

Piston Assembly (includes 7)

$74.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-05232

Cylinder O-Ring

$9.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-182379

Breather Hose

$4.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-05408

Oil Plug (includes 12)

$27.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 791-182290

Oil Plug O-Ring

$4.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-05237

Crankcase Cover

$29.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-05238

Crankcase Cover O-ring

$9.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 753-05503

Crankcase Assembly (includes 9, 10, 14 & 16)

$

$

Not available

16

Troy-Bilt 753-05240

Flywheel Assembly

$71.99

$

In Stock, only 3 left!

0

16

Troy-Bilt 914-04016

Woodruff Key .125 x .375

Note: Not shown

$4.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-05241

Cam Bracket Assembly (includes 18)

$45.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-05242

Cam Bracket Screw
(Superseded to 710-04584)

$3.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 753-05504

Lead Wires

$

$

Not available

20

Troy-Bilt 753-05243

Module Assembly
(Superseded to 753-05301)

$105.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-05244

Muffler Gasket

$5.49

$

In Stock, Qty 11

0

22

Troy-Bilt 753-05245

Muffler Assembly (includes 21 & 23)

$86.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-05246

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

24

Troy-Bilt 753-05255

Spark Plug
(Superseded to 794-00082)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 753-05247

Insulator Gasket

$7.99

$

In Stock, Qty 6

0

26

Troy-Bilt 753-05248

Nut
(Superseded to 712-04099)

$6.49

$

In Stock, only 1 left!

0

27

Troy-Bilt 753-05249

Insulator (includes 28)

$17.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 753-05366

Carburetor Gasket

$18.99

$

In Stock, Qty 14

0

29

Troy-Bilt 753-05251

Carburetor w/Primer

$69.99

$

In Stock, Qty 17

0

30

Troy-Bilt 753-04030

O-Ring

$9.99

$

In Stock, Qty 5

0

31

Troy-Bilt 753-05507

Air Filter Mounting Screw
(Superseded to 710-04645)

$4.99

$

In Stock, only 4 left!

0

32

Troy-Bilt 753-05505

Air Cleaner Cover Assembly (includes 33, 34 & 37-39)

$38.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 791-182097

Breather Tube

$10.99

$

In Stock, only 1 left!

0

34

MTD 791-181000

Grommet Washer

$

$

Not available

35

Troy-Bilt 791-182409

Washer

$4.49

$

In Stock, Qty 5

0

36

Troy-Bilt 753-05248

Nut
(Superseded to 712-04099)

$6.49

$

In Stock, only 1 left!

0

37

Troy-Bilt 753-182657

Air Filter Plate

$

$

Currently unavailable

38

Troy-Bilt 753-05506

Air Filter

$4.49

$

In Stock, Qty 15

0

39

Troy-Bilt 791-182659

Air Filter Cover

$14.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 753-05256

Fuel Tank Assembly w/Fuel Lines (includes 41)

$50.99

$

In Stock, Qty 16

0

41

Troy-Bilt 753-1229

Fuel Cap

$21.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 753-05259

Fuel Tank Pads

$6.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 753-05260

Push Nut
(Superseded to 712-04096)

$

$

Not available

44

Troy-Bilt 753-1202

Pressure Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 753-05074

Pressure Plate (includes 44)

$

$

Not available

46

Troy-Bilt 753-05078

Spacer
(Superseded to 750-04434)

$6.49

$

In Stock, Qty 5

0

47

Troy-Bilt 753-05508

Starter Assembly (includes 48)

$29.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 753-05509

Rope

$9.49

$

Usually ships in 3-6 days

0

49

Troy-Bilt 753-04286

Recoil Spring

$24.99

$

In Stock, Qty 6

0

50

Troy-Bilt 791-181079

Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

51

Troy-Bilt 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

52

Troy-Bilt 753-05510

Starter Housing Assembly (includes 3 & 43-51)

$

$

Not available

53

Troy-Bilt 791-182396

Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

54

Troy-Bilt 756-04269

Drive Shaft Pulley

$13.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 746-04354

Throttle Cable

$29.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-05297

Spark Arrestor Assembly

Note: Items Not Shown

$28.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-05511

Shortblock Assembly (includes 3-12, 14, 15, 17 & 24)

Note: Items Not Shown

$

$

Not available
